Data Link Connector: Locations

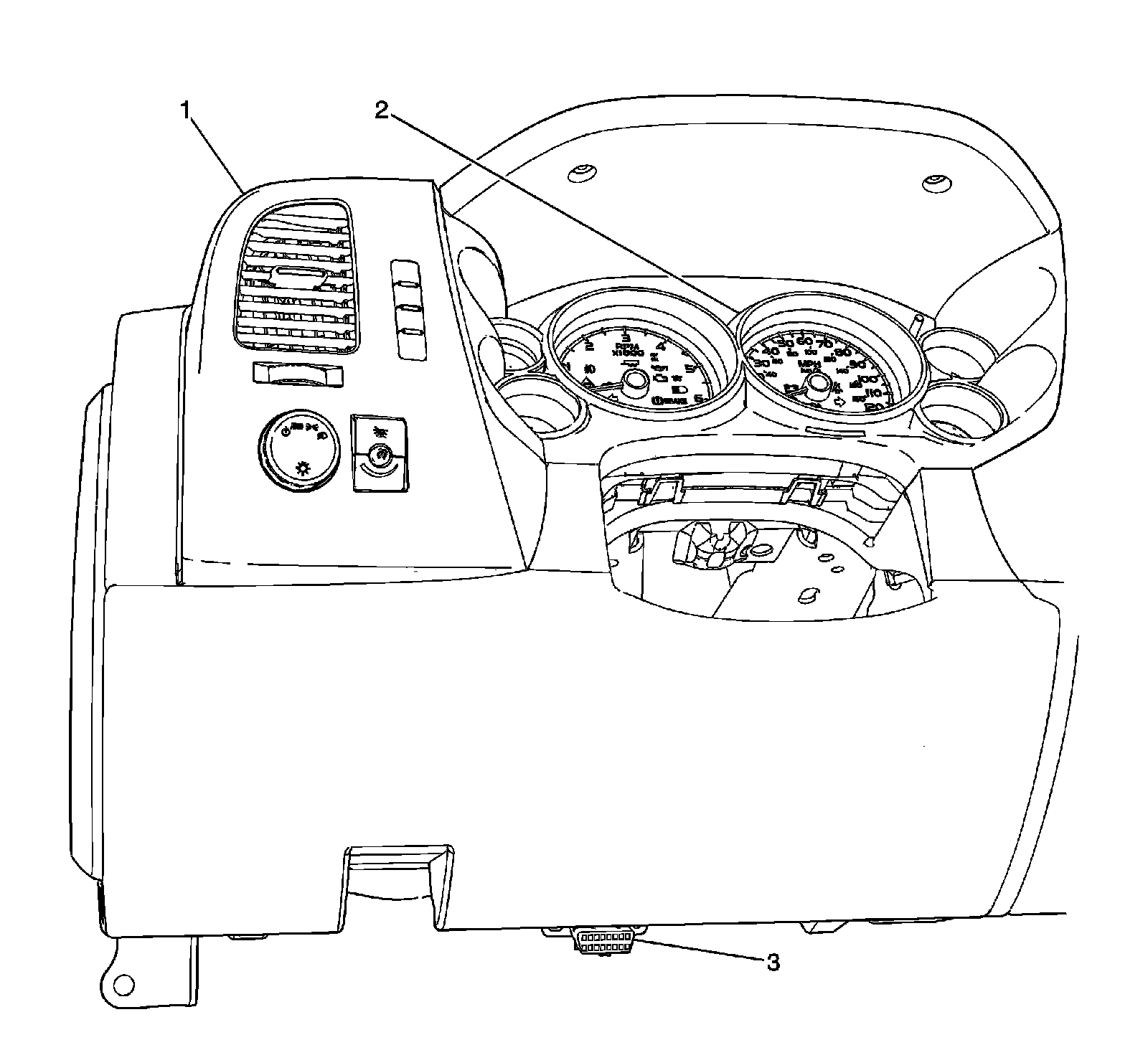

Data Communication Component Views

Below the Driver Knee Bolster




1 - I/P Trim
2 - Instrument Panel Cluster
3 - Data Link Connector (DLC)
