Power Trunk / Liftgate Control Module: Diagrams

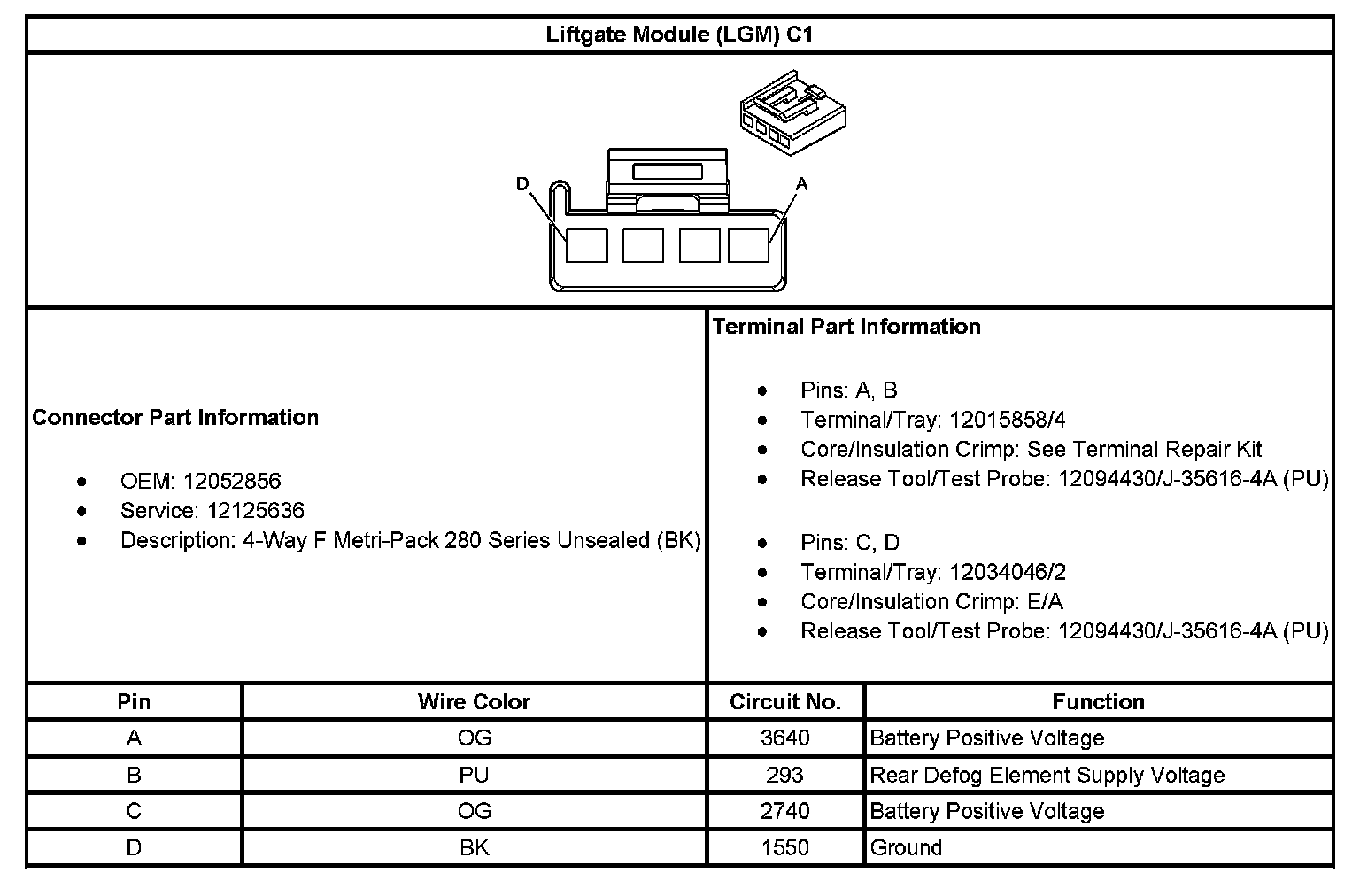

Liftgate Module (LGM) C1:

Liftgate Module (LGM) C2:

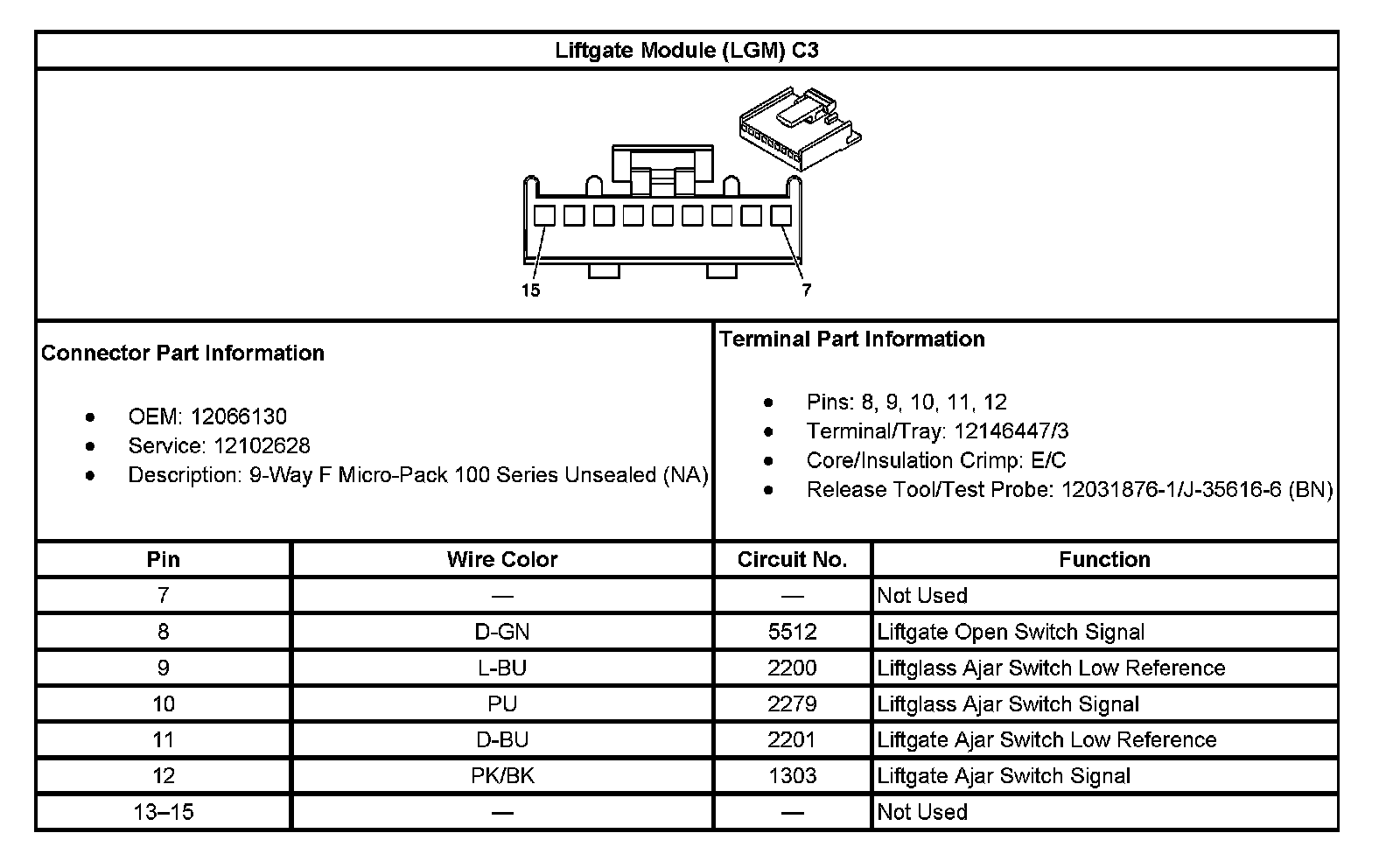

Liftgate Module (LGM) C3:
