Home >> Chevy Truck >> 2006 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> HVAC System - Manual >> HVAC Control Module C1

HVAC Control Module C1

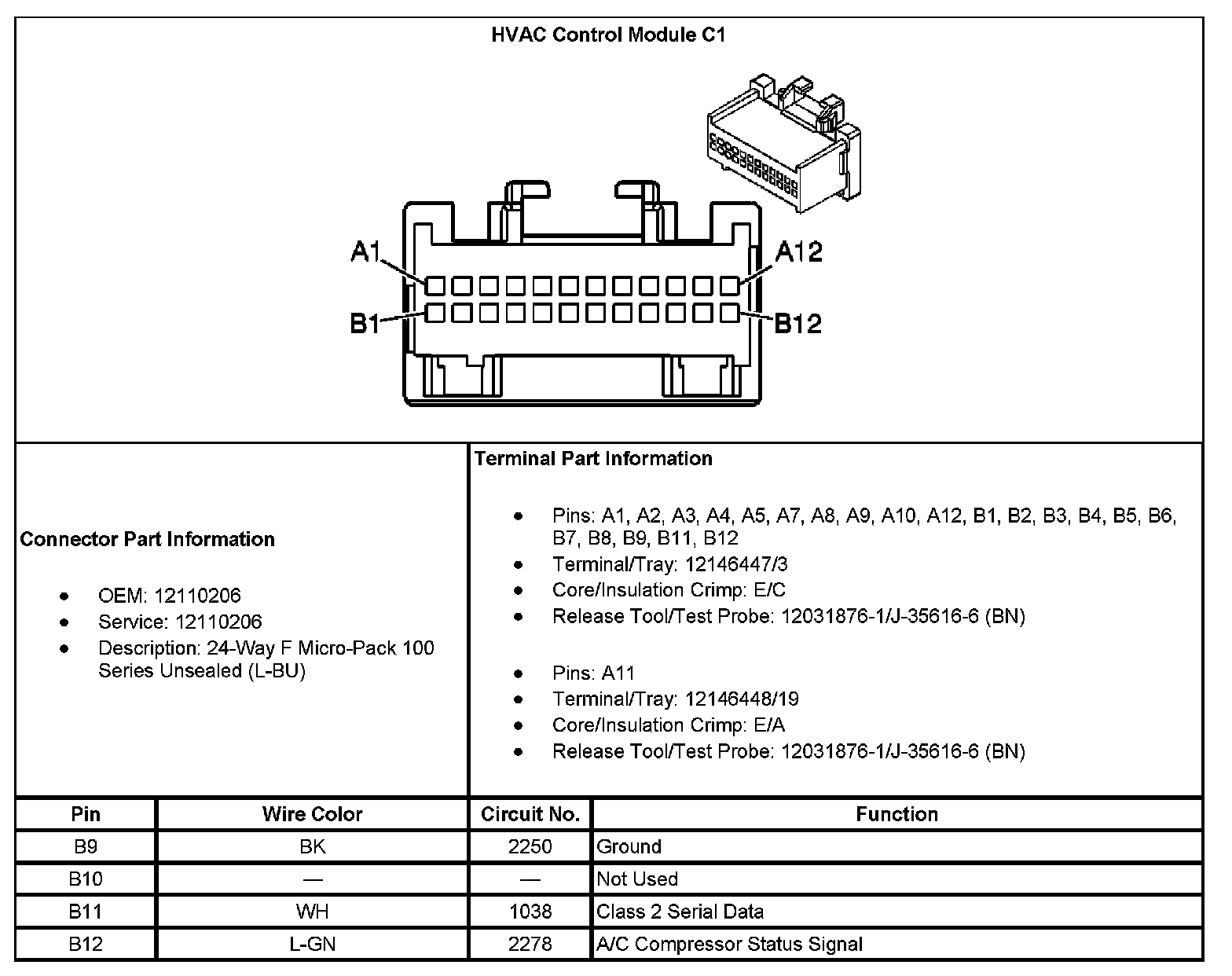

HVAC Control Module C1 (Part 1):

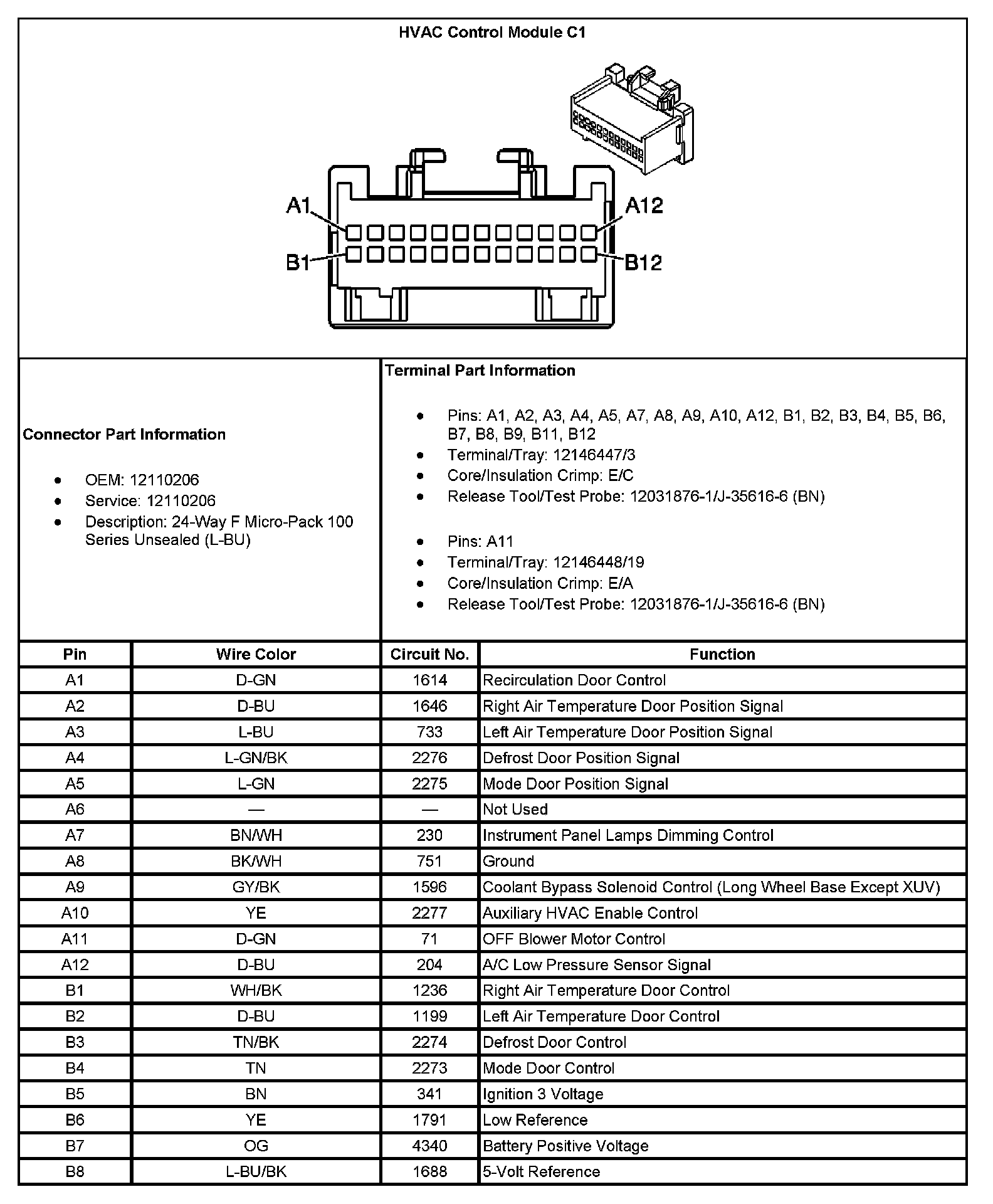

HVAC Control Module C1 (Part 2):
