Home >> Chevy Truck >> 2006 >> Silverado 1500 2WD V8-5.3L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Locations >> Starter/Generator Control Module SGCM

Starter/Generator Control Module SGCM

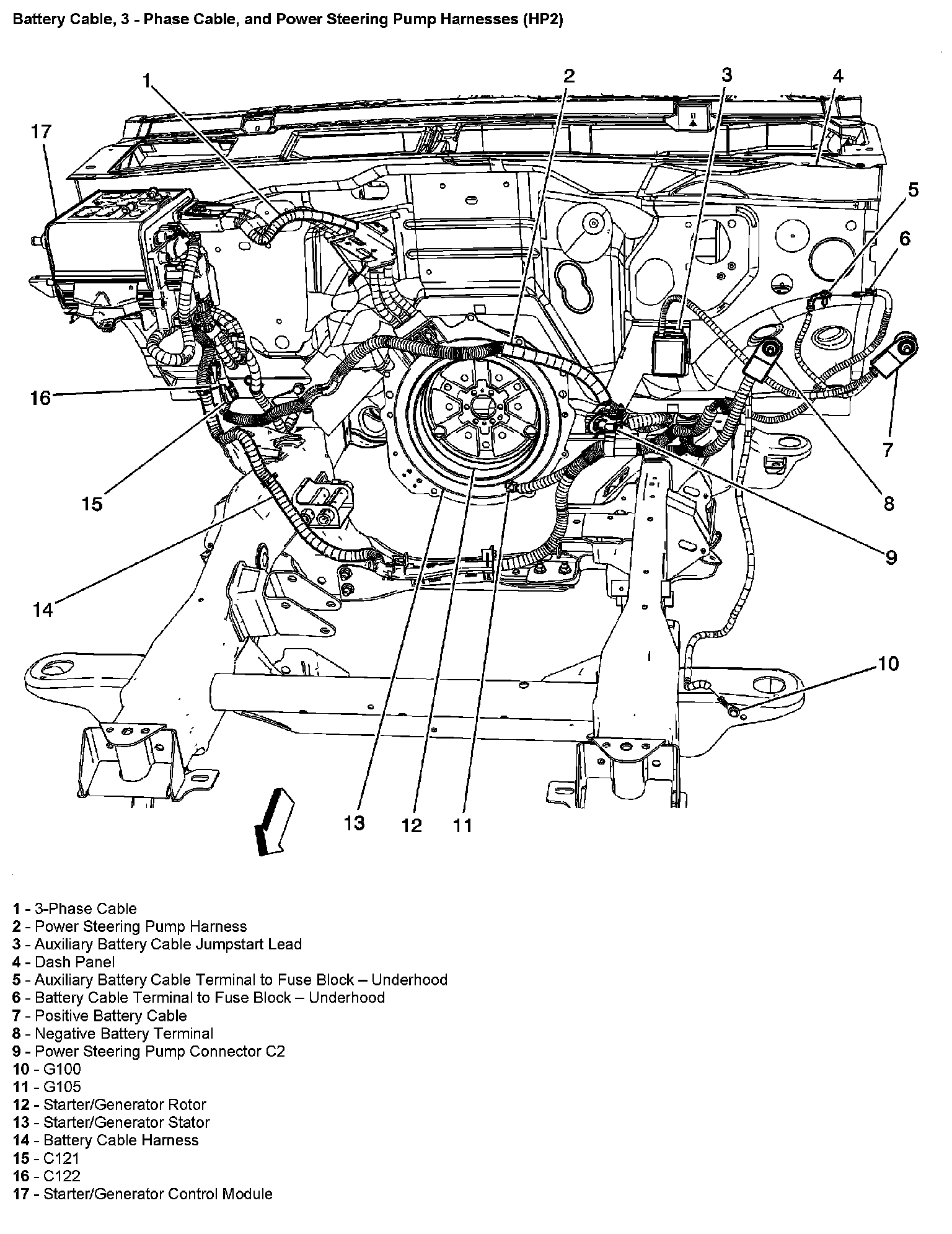

Battery Cable, 3 - Phase Cable, And Power Steering Pump Harnesses:
