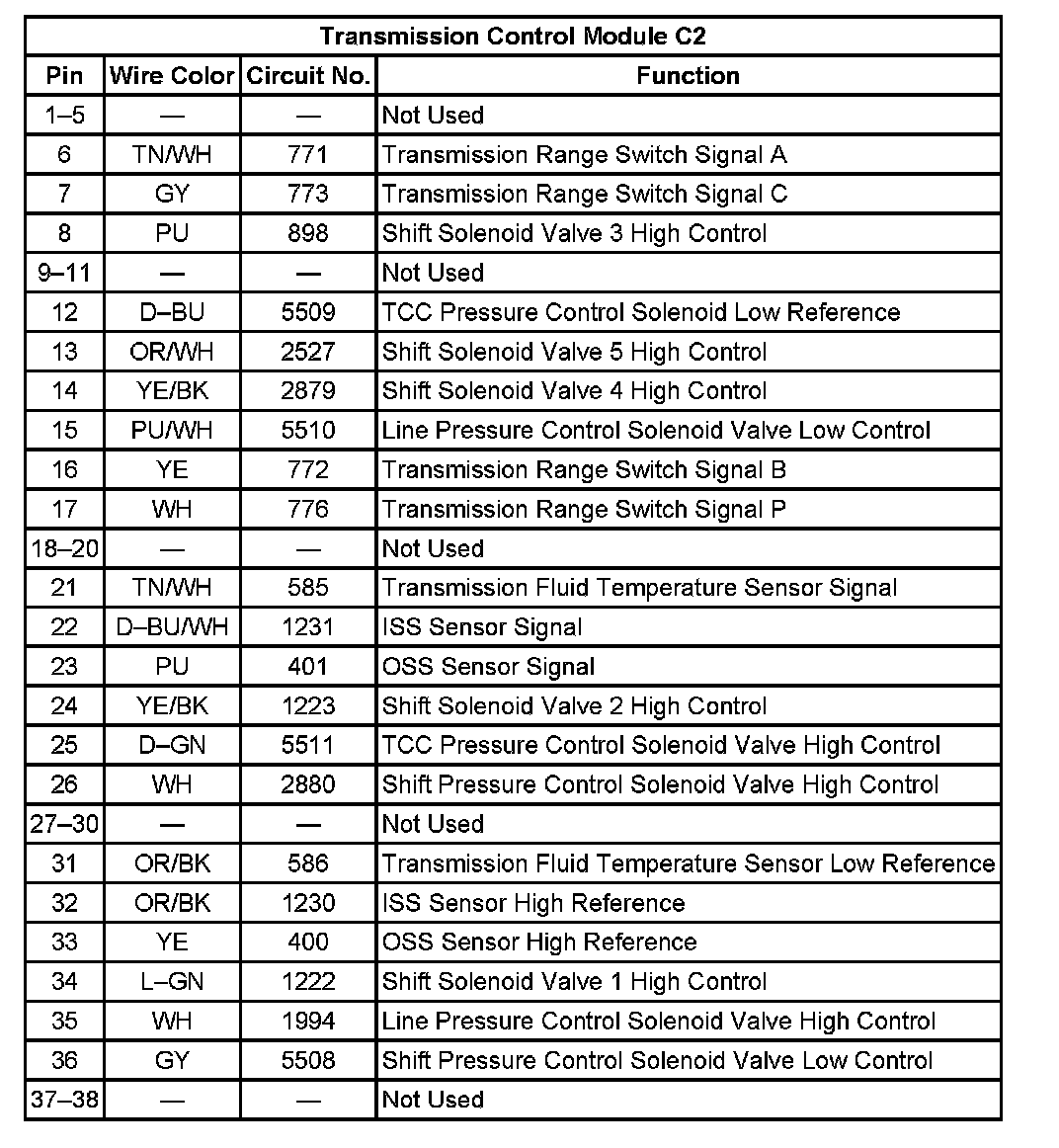

Transmission Control Module C2



Transmission Control Module C2

Transmission Control Module C2:







Transmission Control Module C2:
