Home >> Chevy Truck >> 2005 >> Express 2500 V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Components

Components

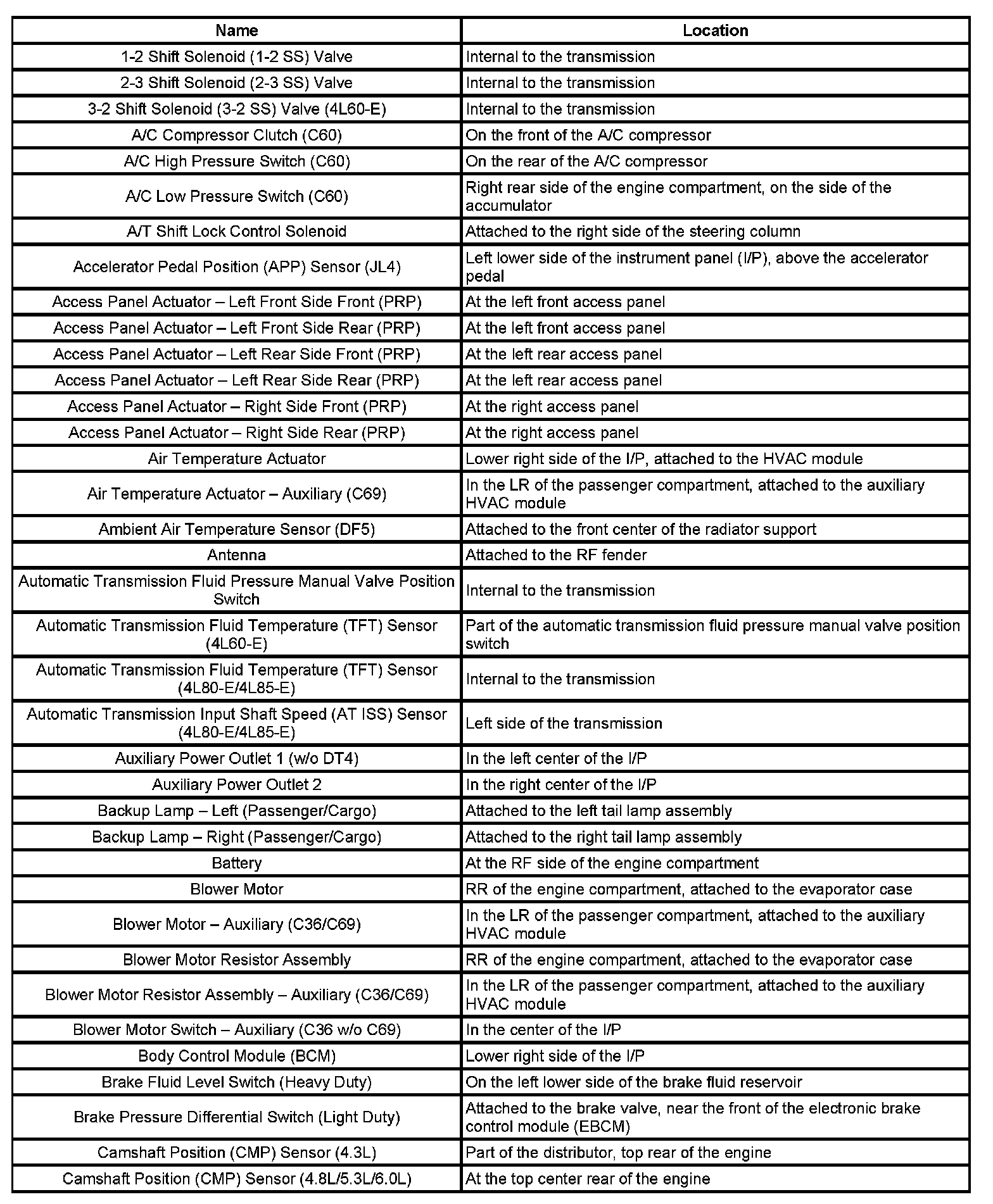

1-2 Sh - Ca:

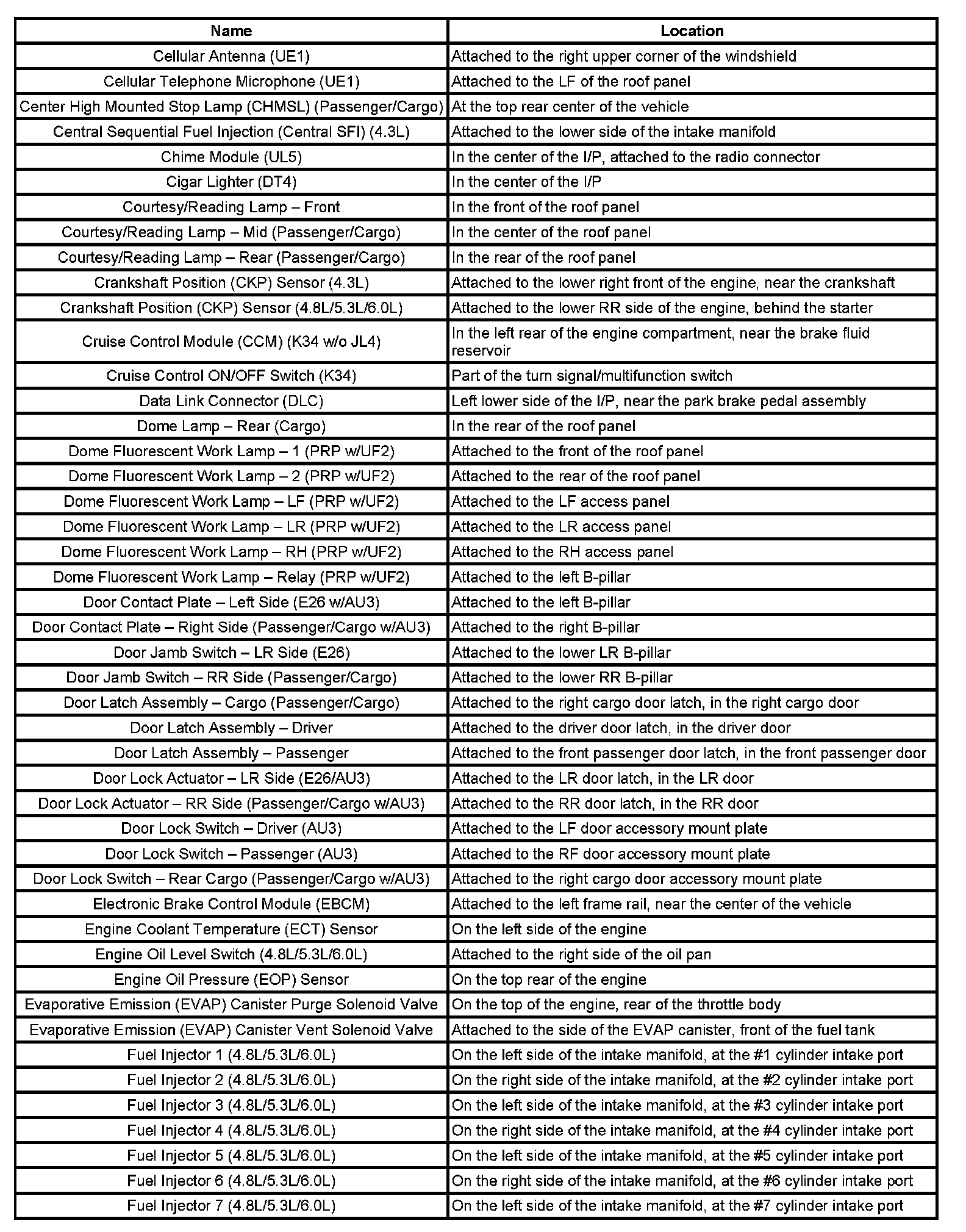

Ce - Fu:

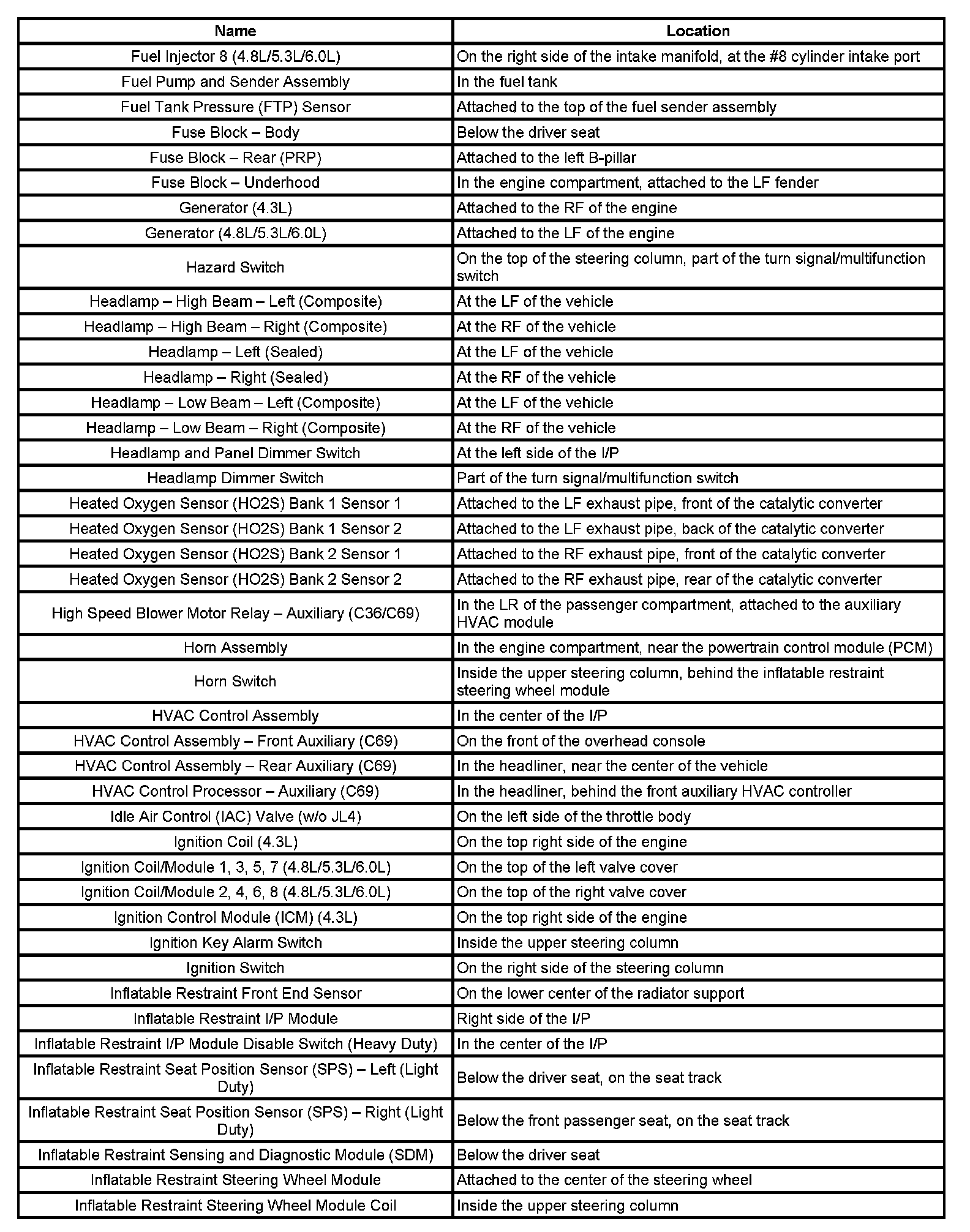

Fu - In:

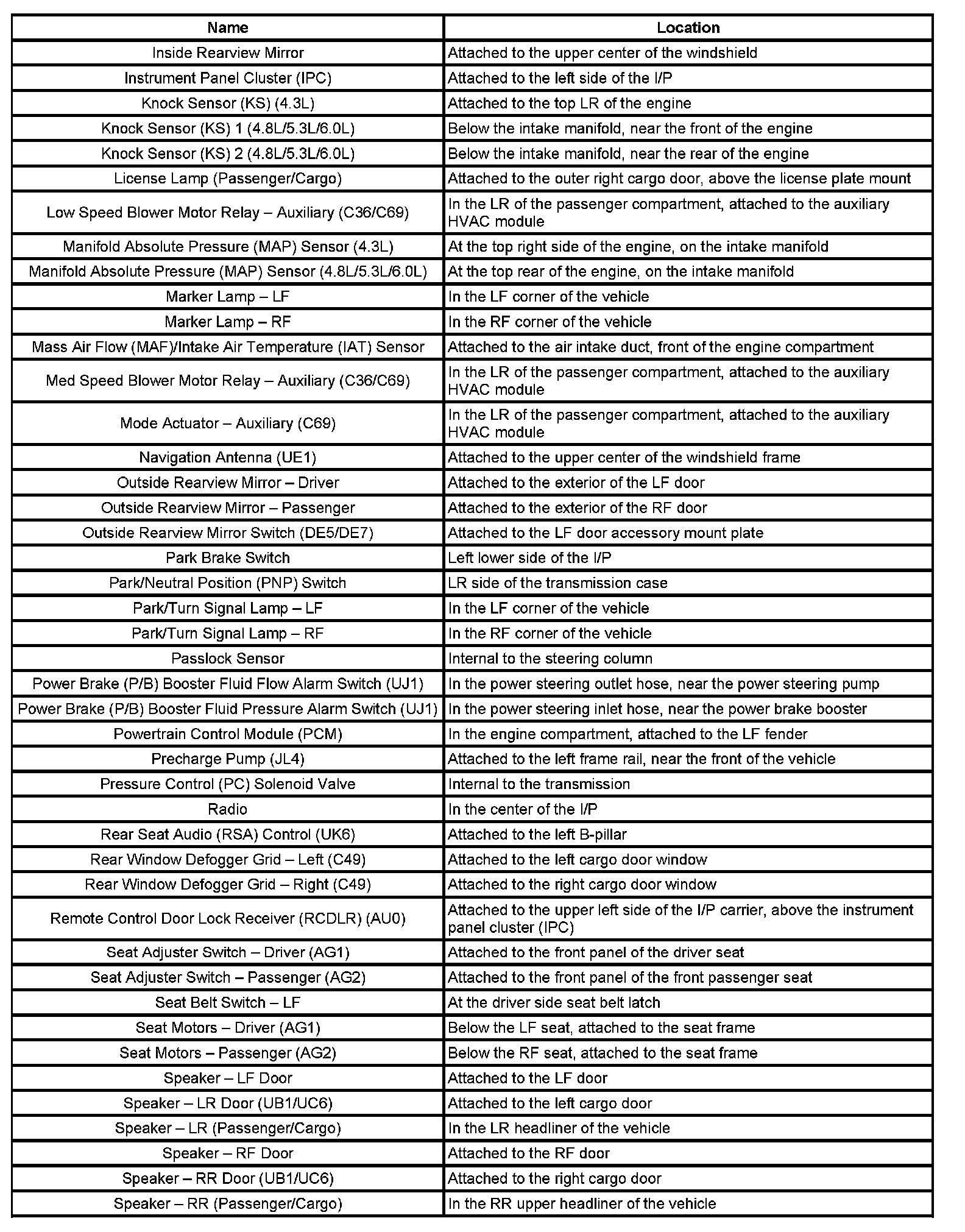

In - Sp:

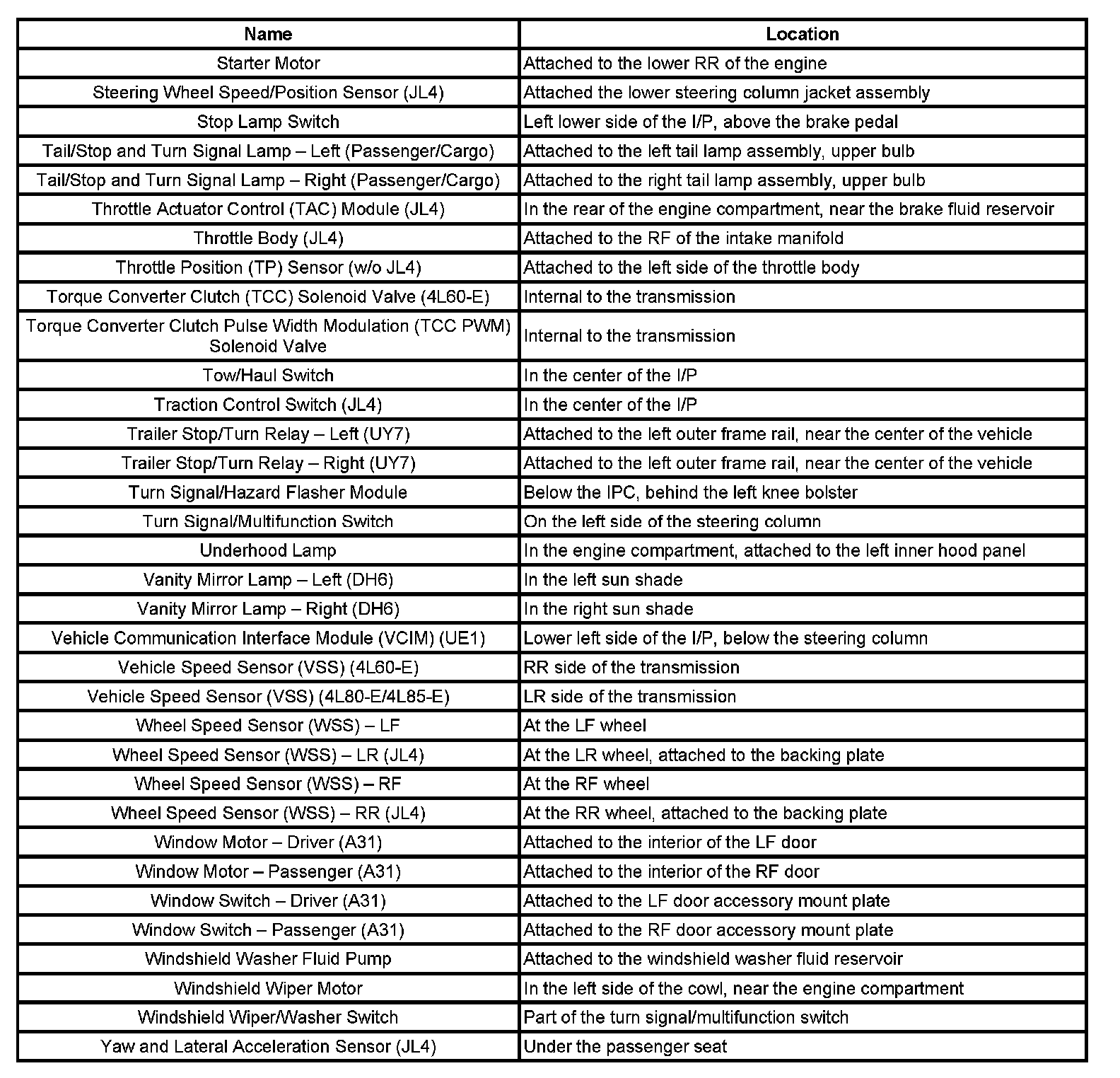

St - Ya:
