Vehicle Speed Sensor: Locations

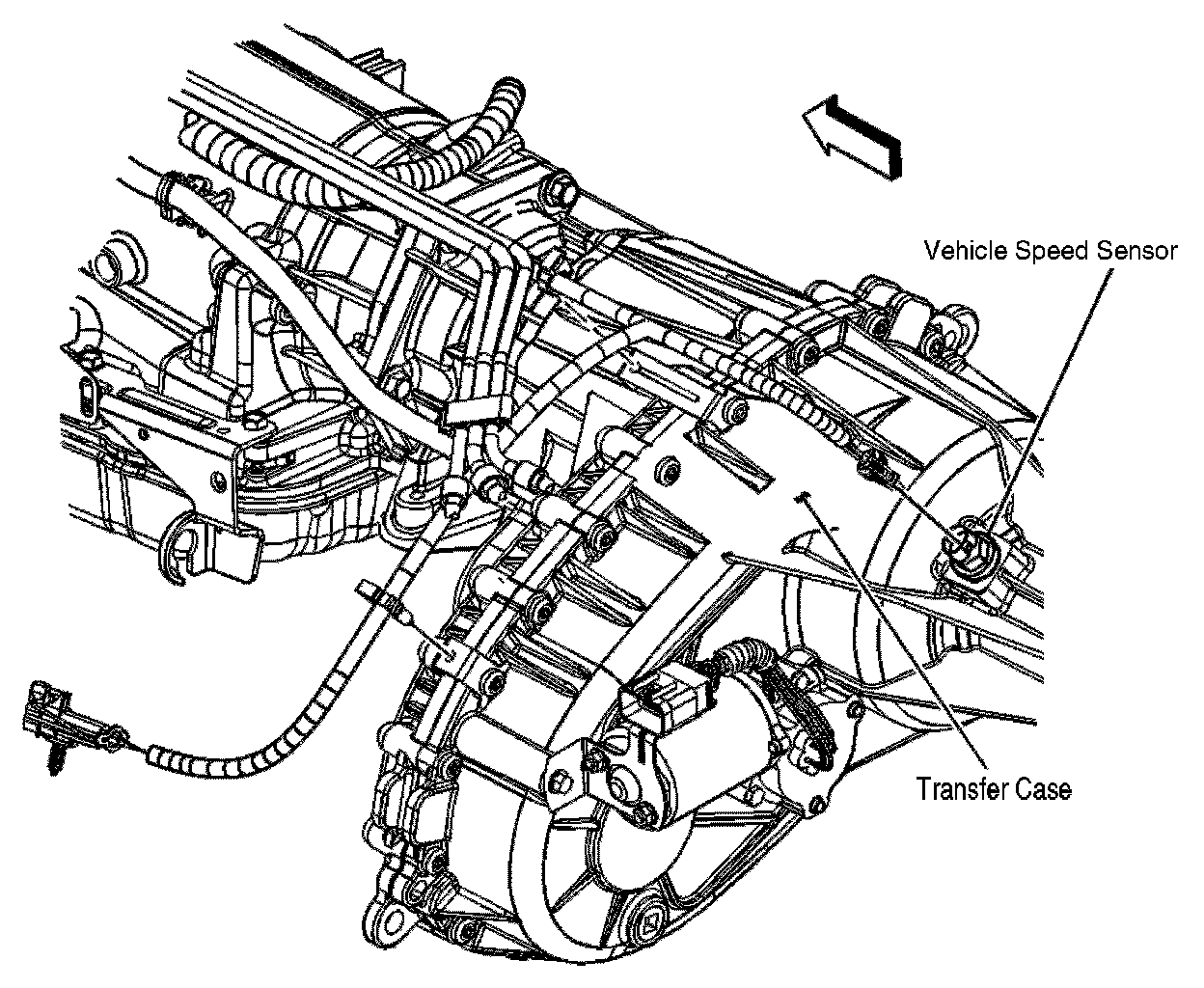

VEHICLE SPEED SENSOR






The vehicle speed sensor is attached to the output shaft at the left rear of the transfer case.
