Removal and Replacement

Multifunction Alarm Module Replacement

Removal Procedure

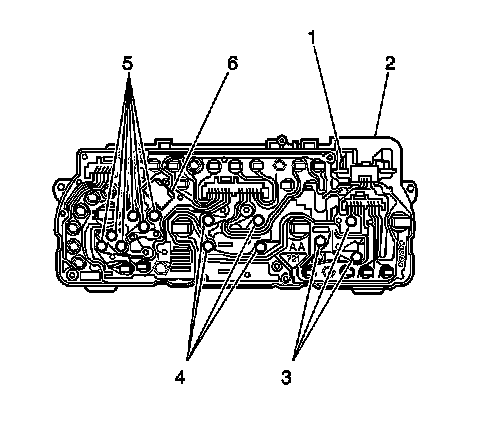

The multifunction alarm (1) is located in the upper right corner of the rear of the instrument cluster (2).





Caution: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Cluster Replacement (Instrument Panel Cluster (IPC) - Replacement).
3. Remove the following from the rear of the instrument cluster (2):

1. The multifunction alarm retainer
2. The multifunction alarm (1)

Installation Procedure




1. Install the multifunction alarm (1) to the rear of the instrument cluster (2). Secure the alarm with the retainer.
2. Install the instrument cluster. Refer to Instrument Cluster Replacement (Instrument Panel Cluster (IPC) - Replacement).
3. Connect the negative battery cable.
