Home >> Chevy Truck >> 2004 >> Silverado 2500 4WD V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Tool Data Values - RPO HP2 >> Normal Scan Tool Data Values - Energy Storage Control Module (ESCM)

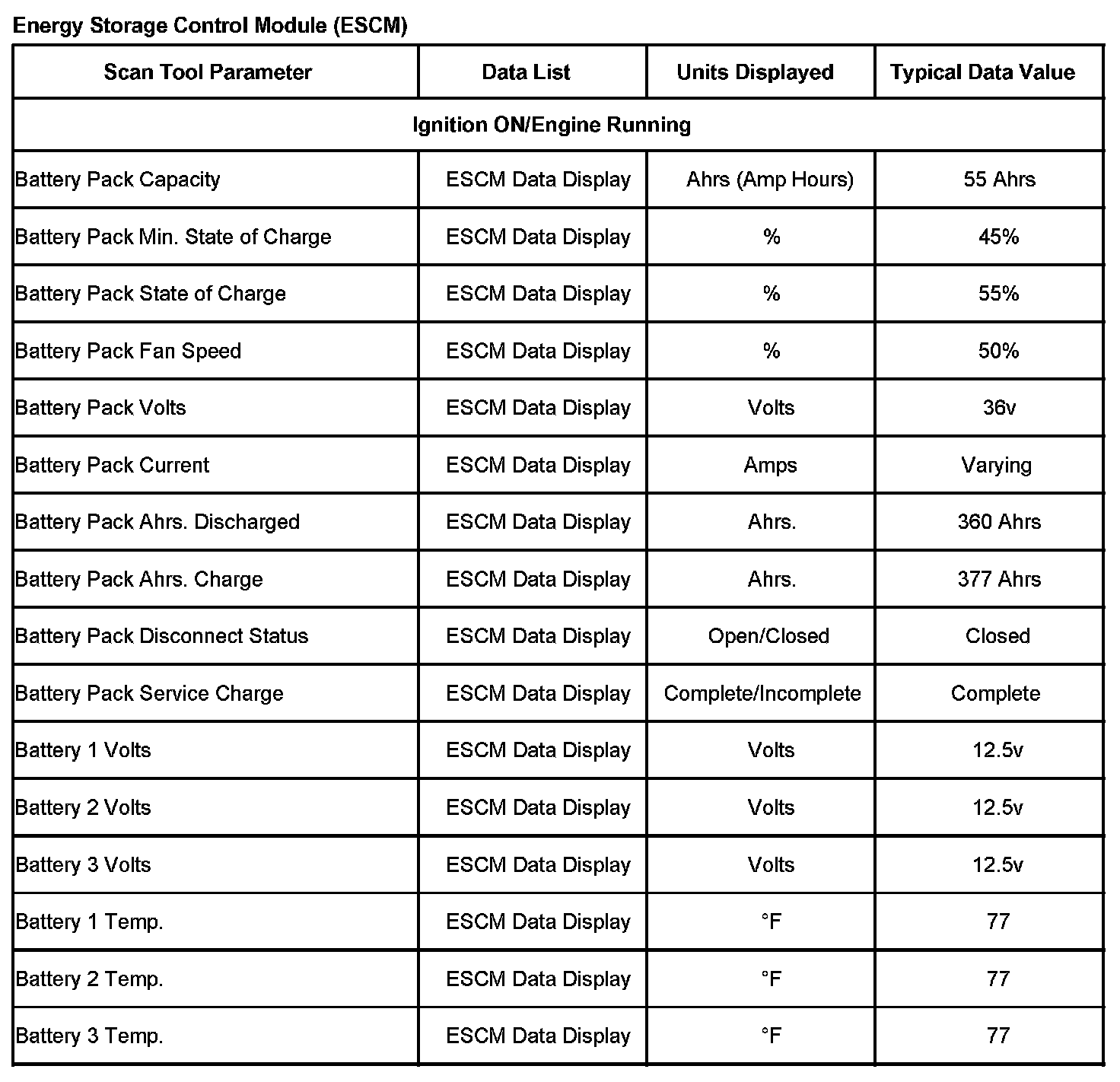

Normal Scan Tool Data Values - Energy Storage Control Module (ESCM)

Energy Storage Control Module (ESCM):
