Home
>>
Chevy Truck
>>
2004
>>
Silverado 2500 4WD V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Data, Normal Values and Definitions
>>
Scan Tool Data List - Antitheft System
Scan Tool Data List - Antitheft System

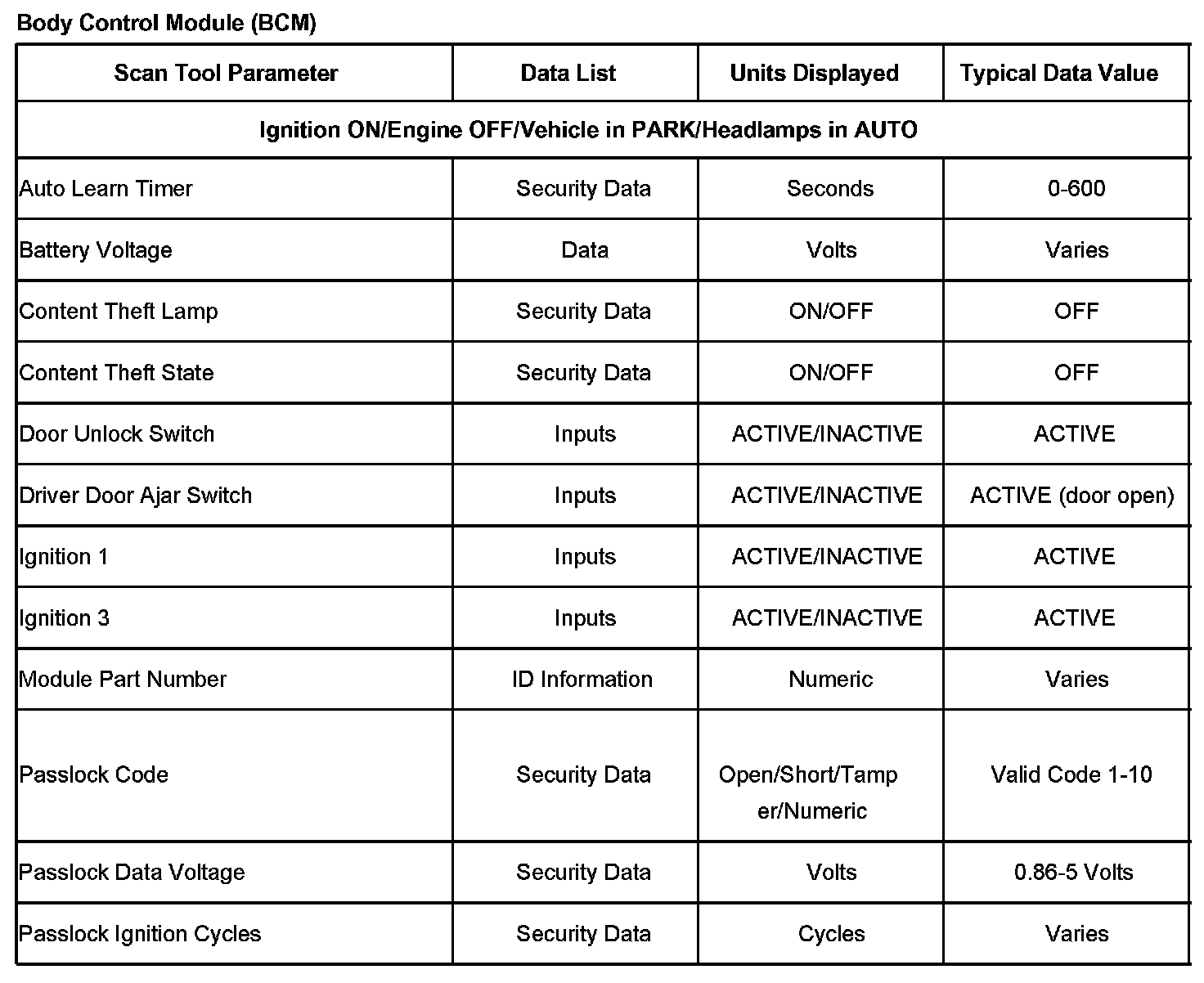

Body Control Module (BCM) Part 1:
Body Control Module (BCM) Part 2:
Powertrain Control Module (PCM):
