Normal Scan Tool Data Values - Starter/Generator Control Module (SGCM)

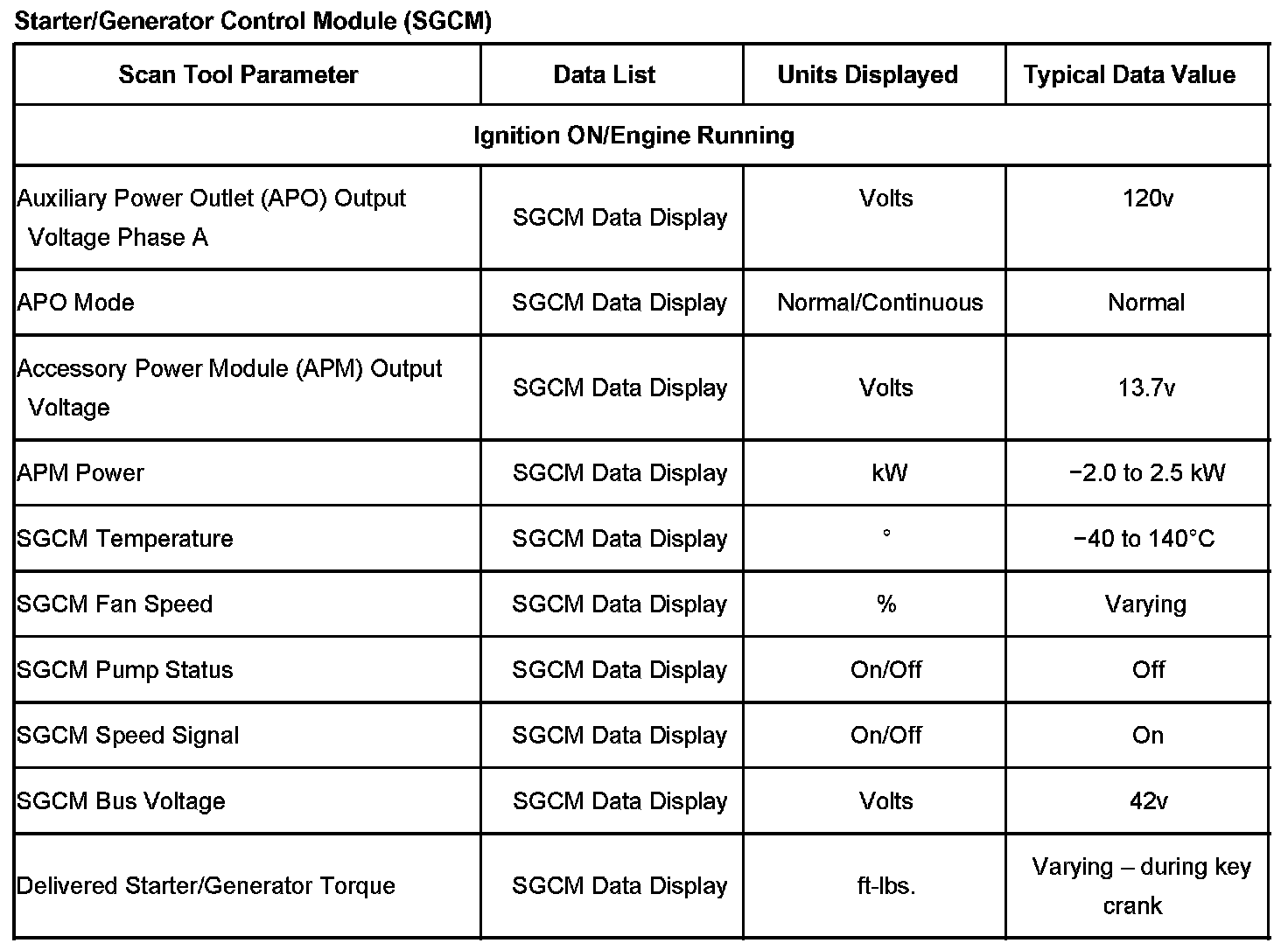

Starter/Generator Control Module (SGCM):
