Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations

Door Module: Locations

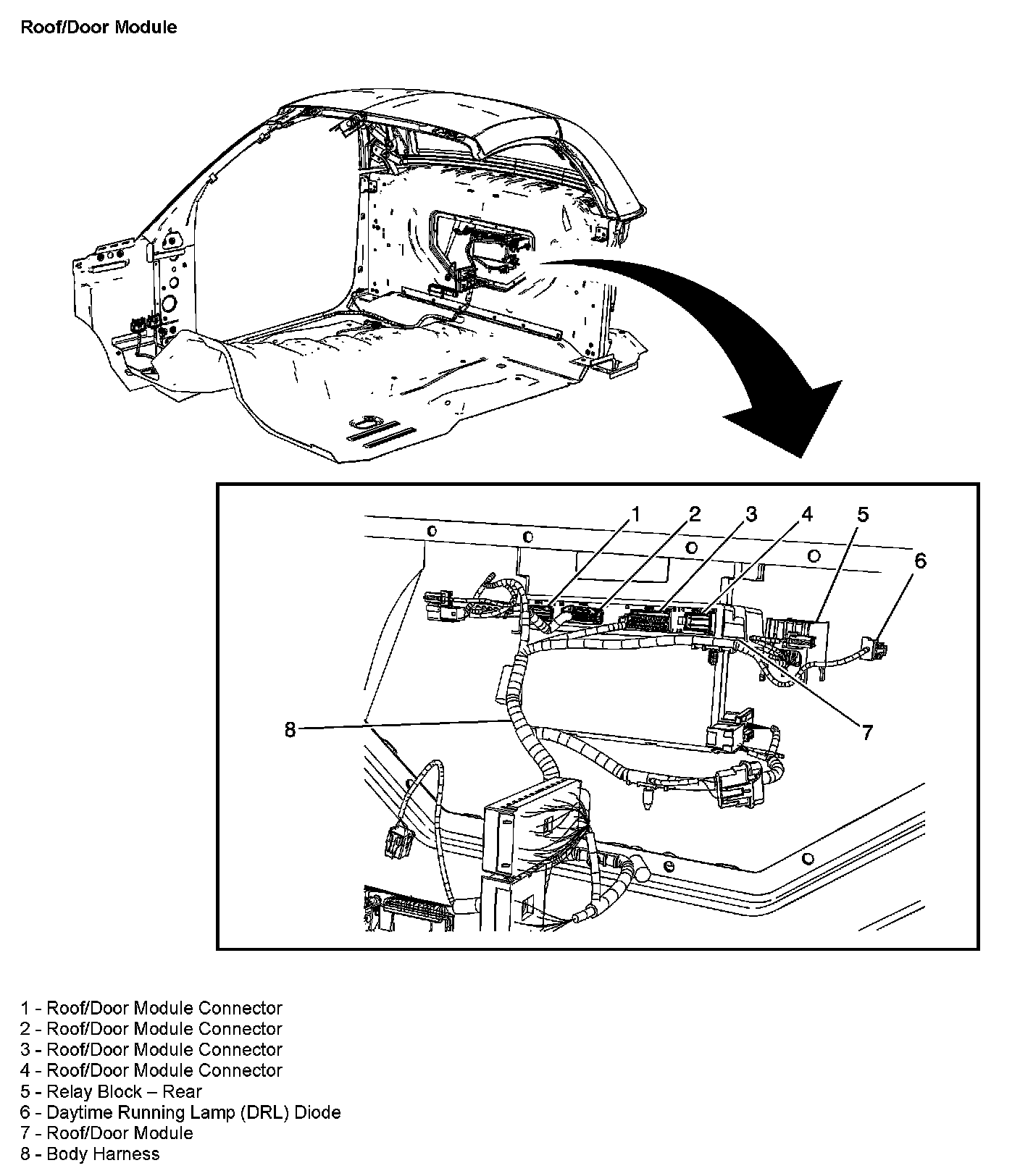

Roof/Door Module:



Body Harness Routing/Components Views:
