Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Engine Block and Components

Engine Block and Components

Disassembled Views

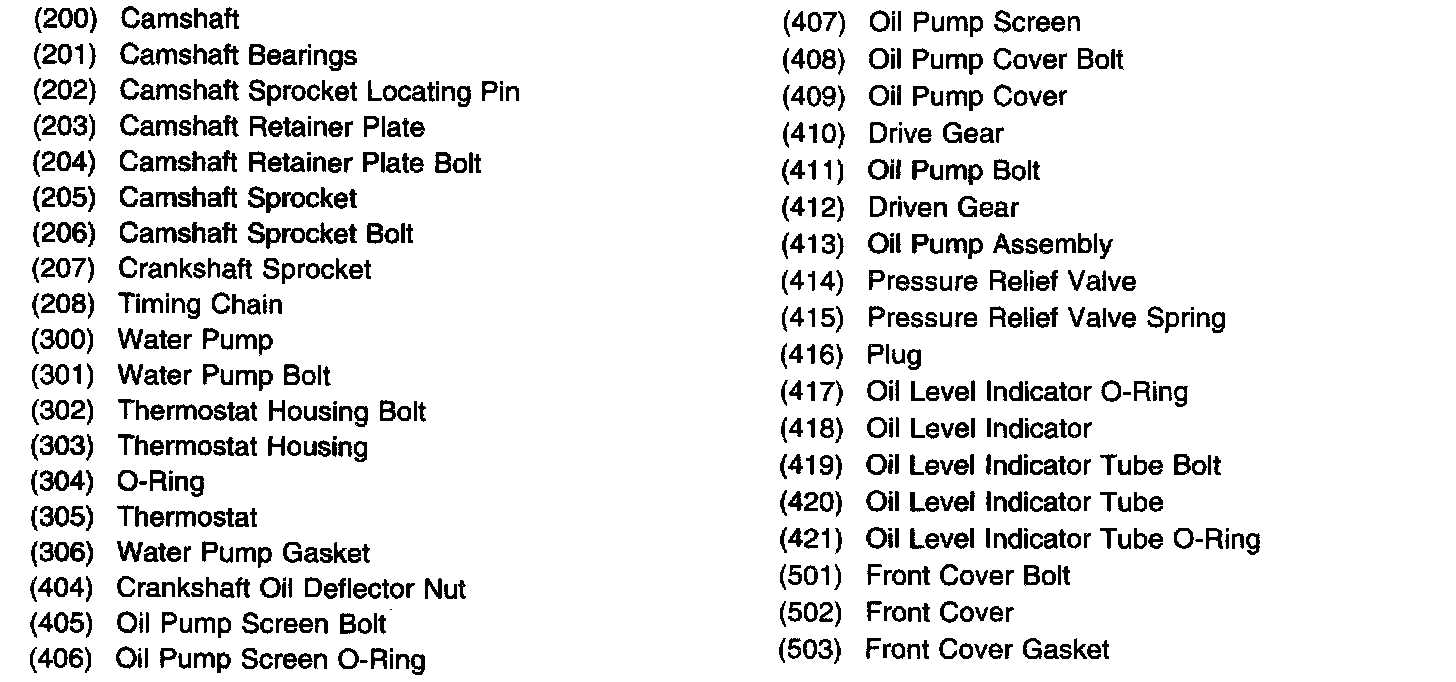

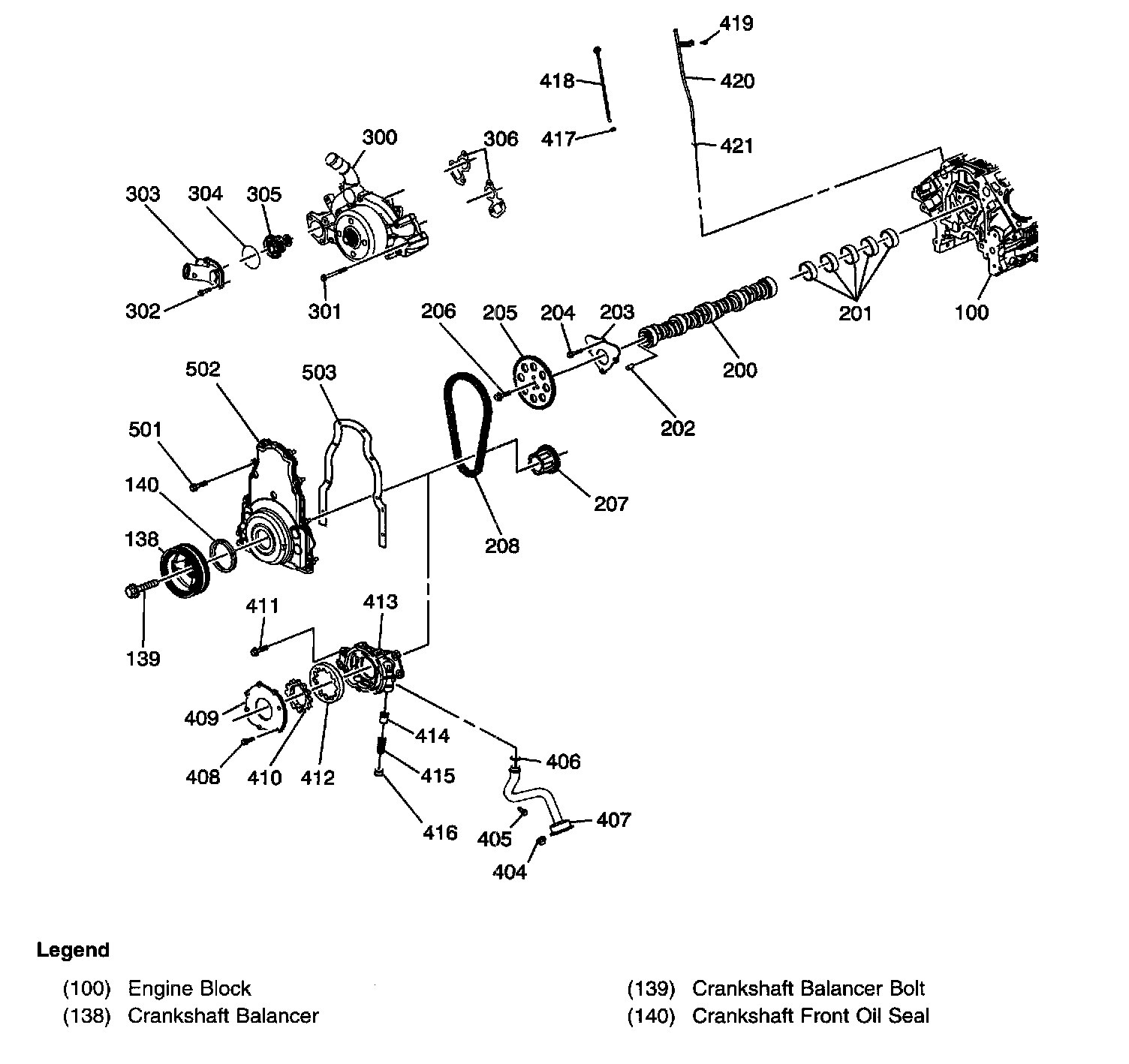

Front of Engine

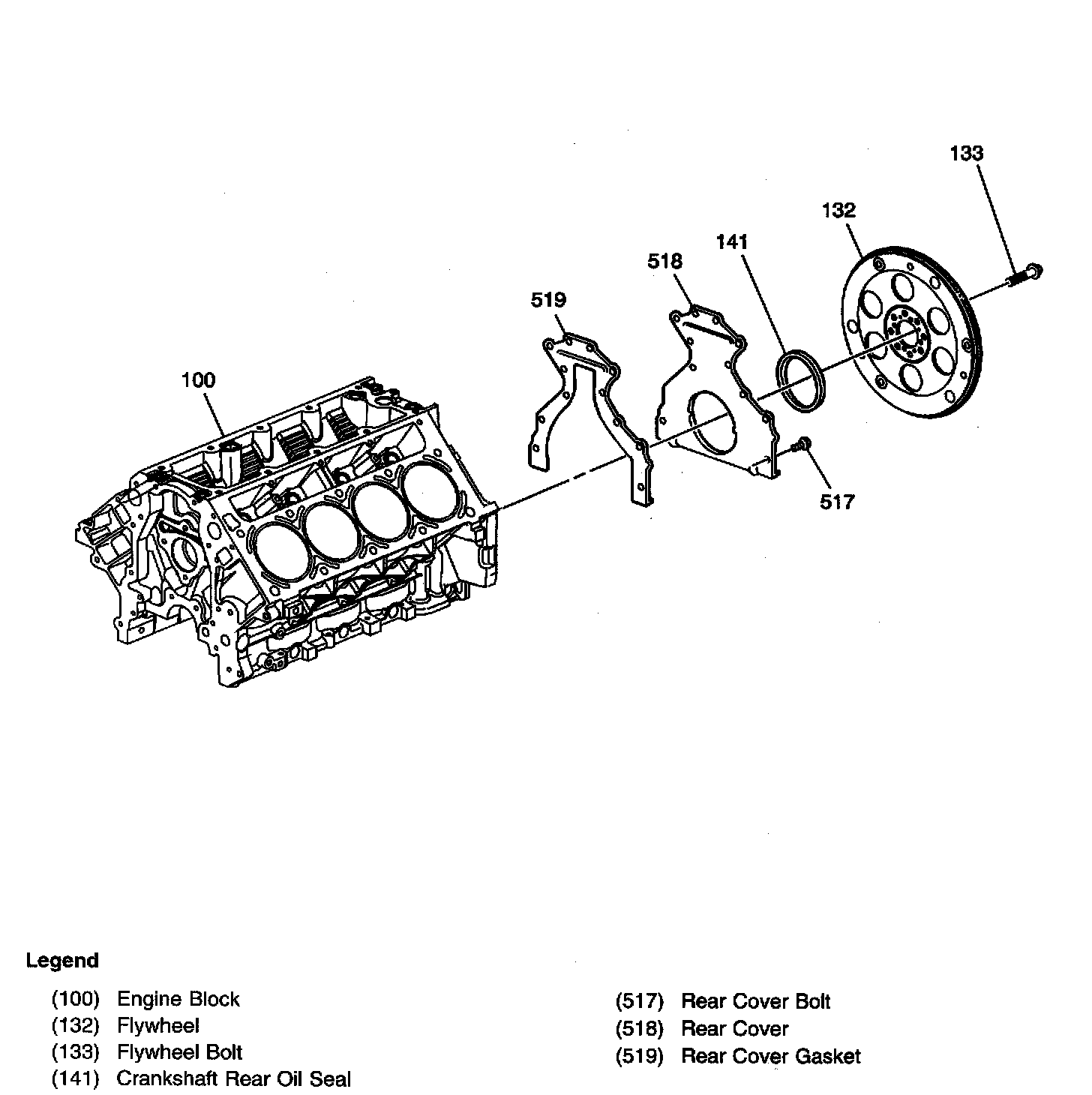

Rear of Engine

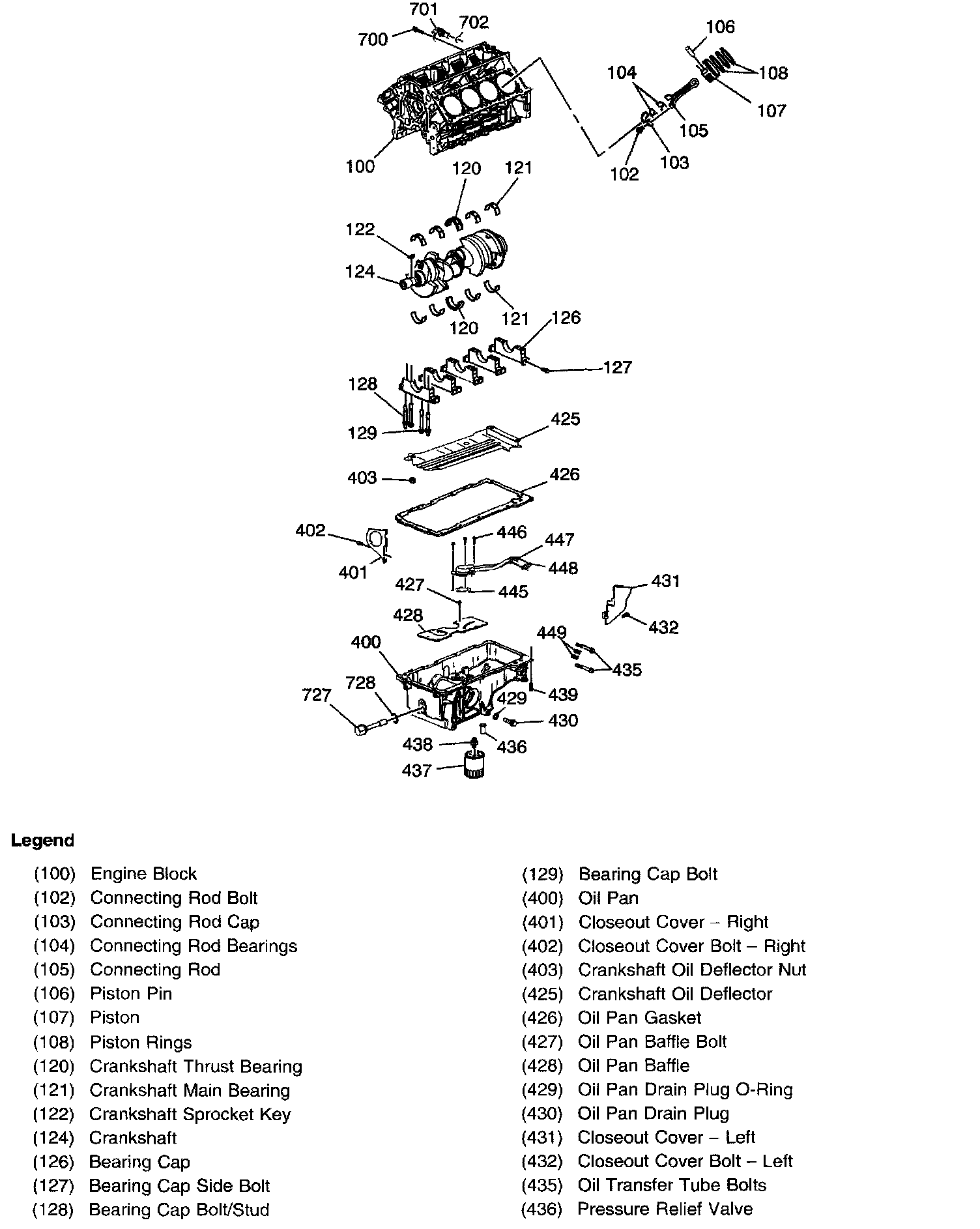

Lower Engine Assembly

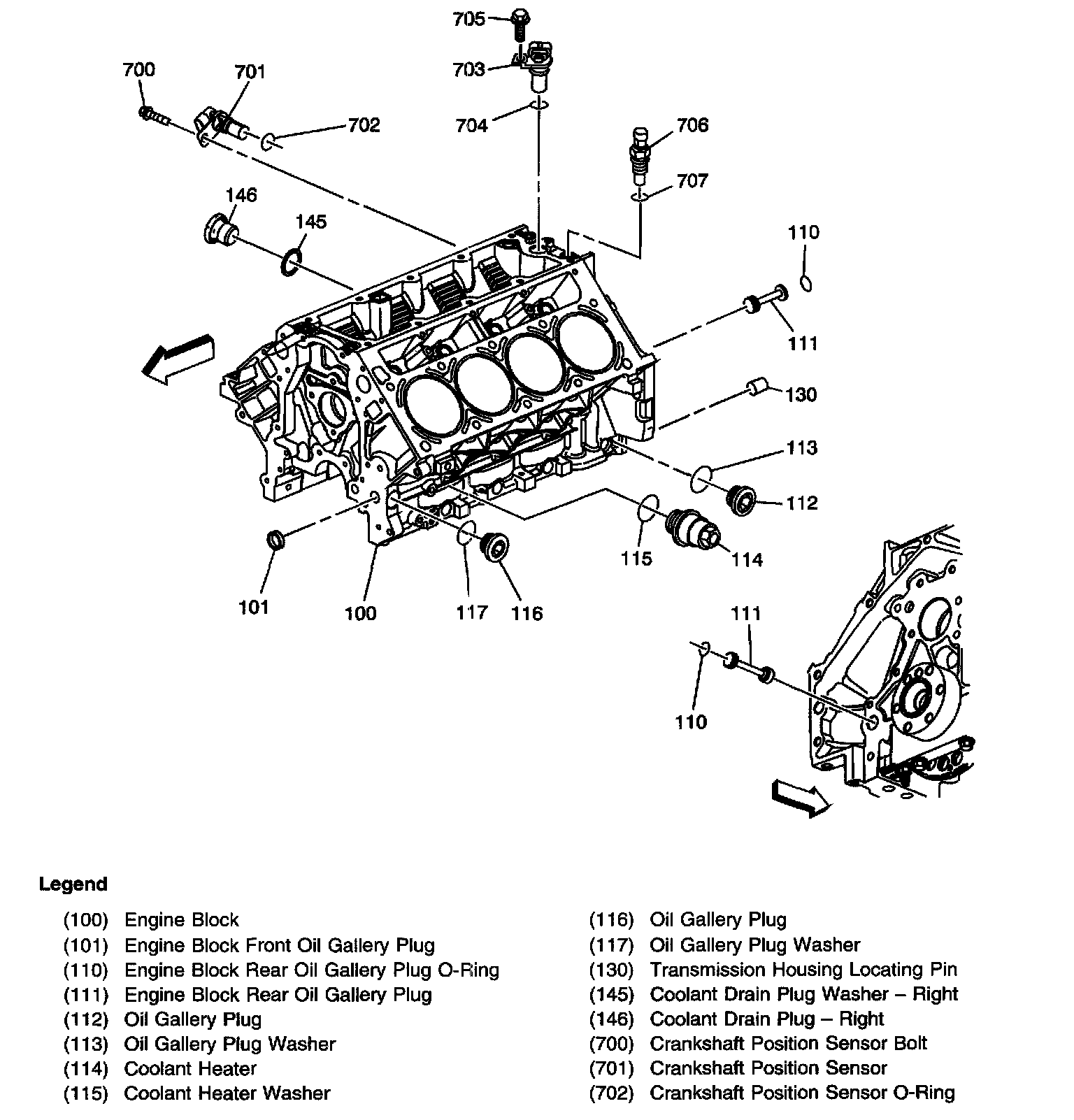

Engine Block Plugs/Sensors
