Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Convertible Top Control Module

Convertible Top Control Module

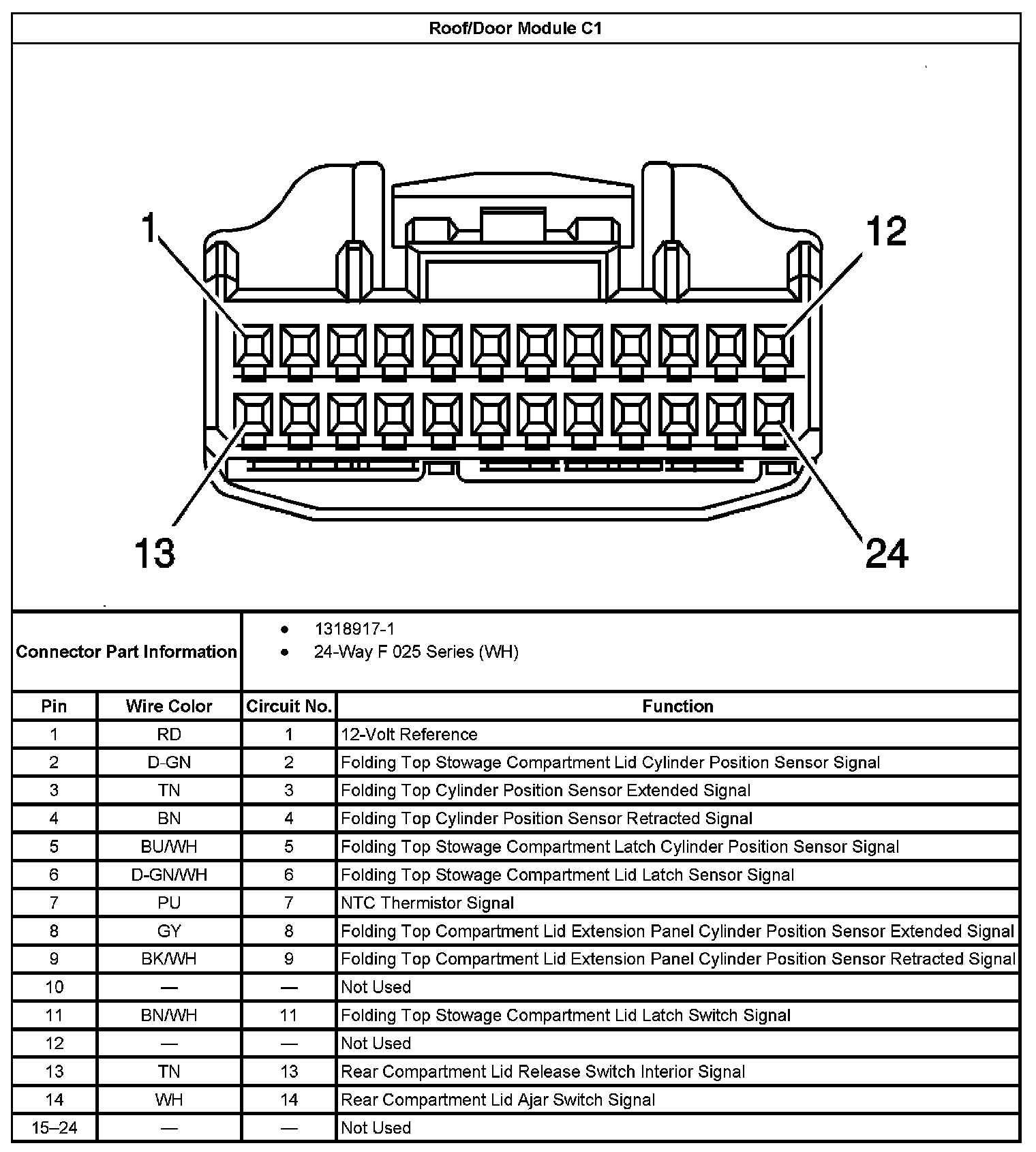

Roof/Door Module C1:

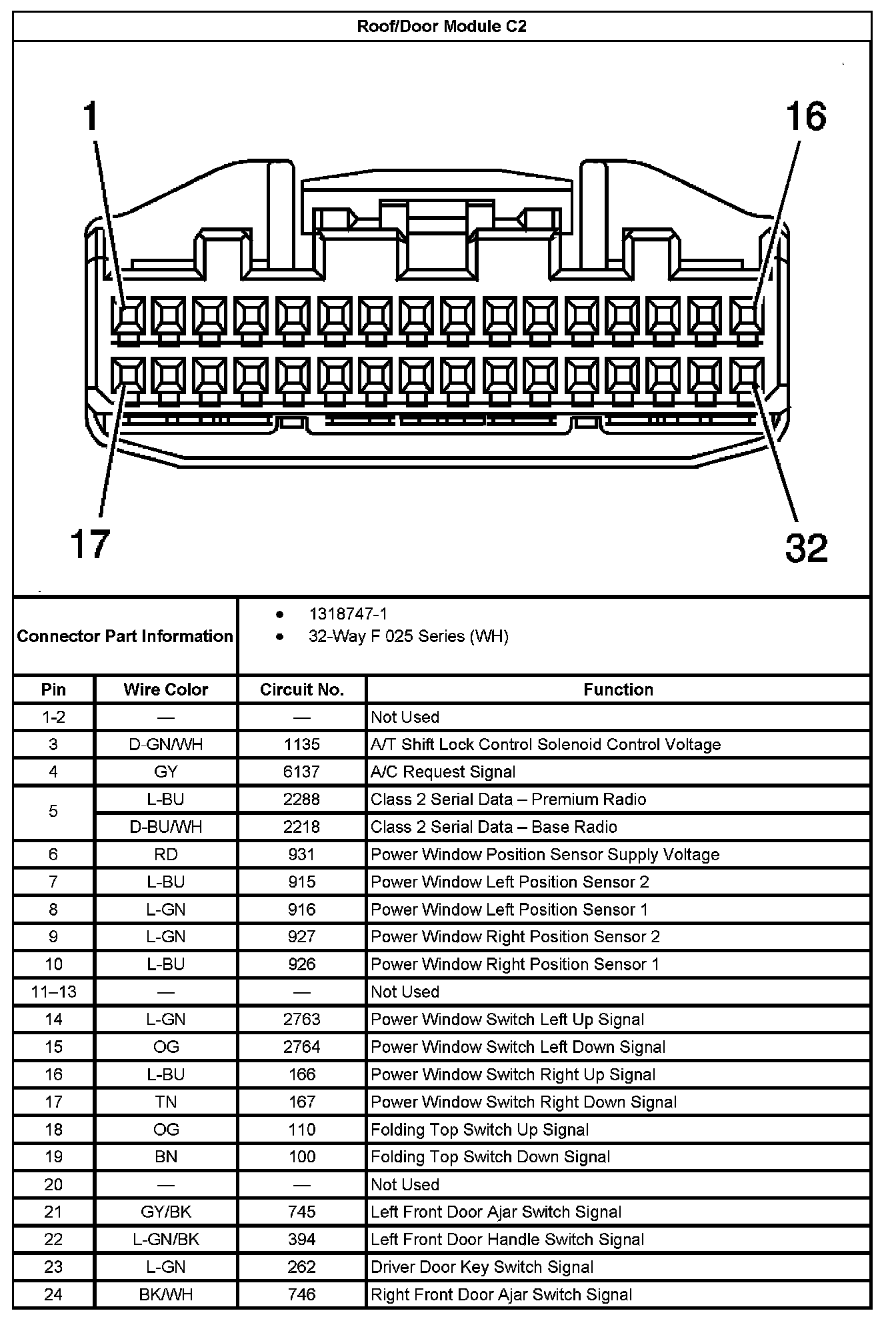

Roof/Door Module C2 Part 1:

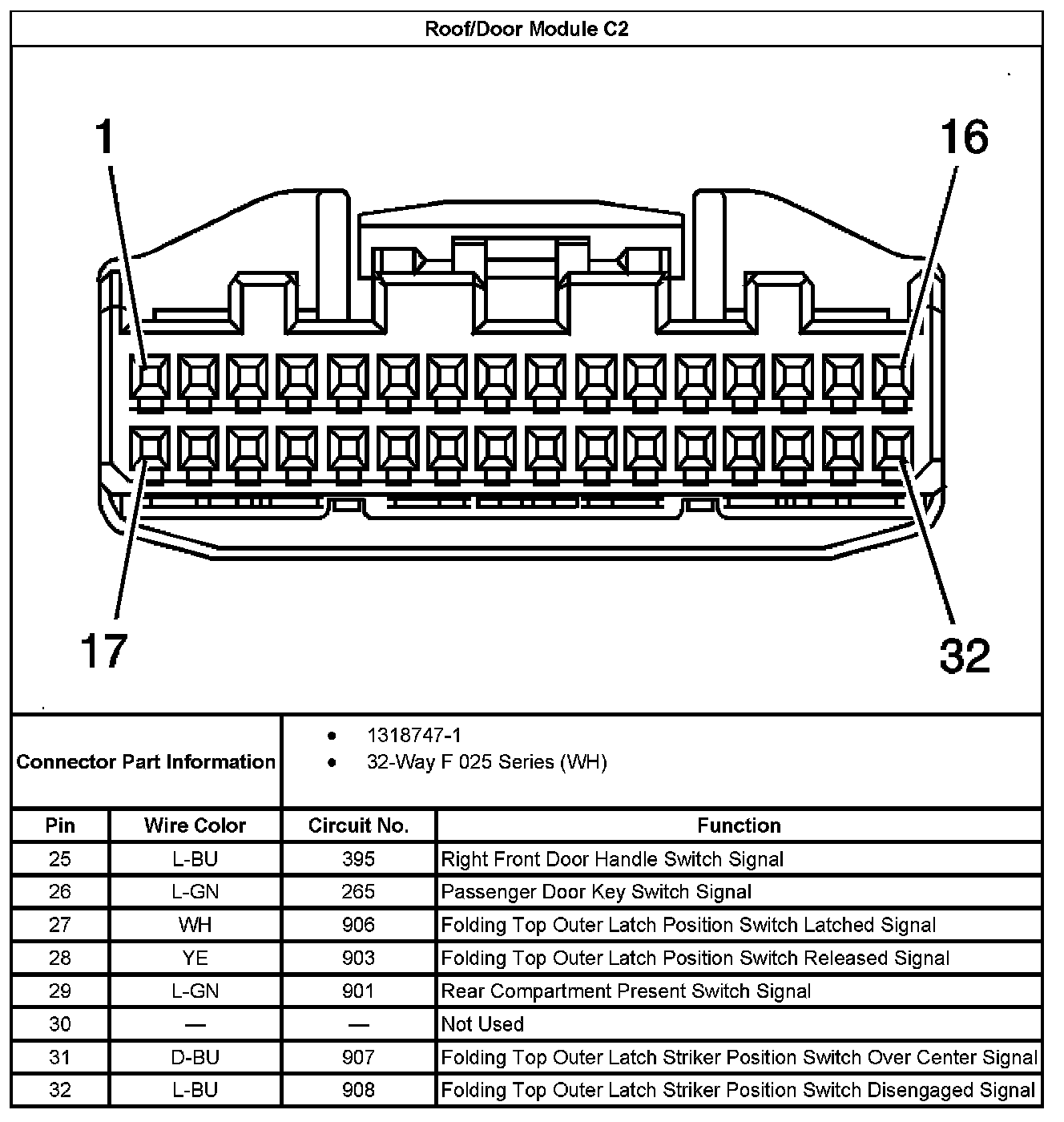

Roof/Door Module C2 Part 2:

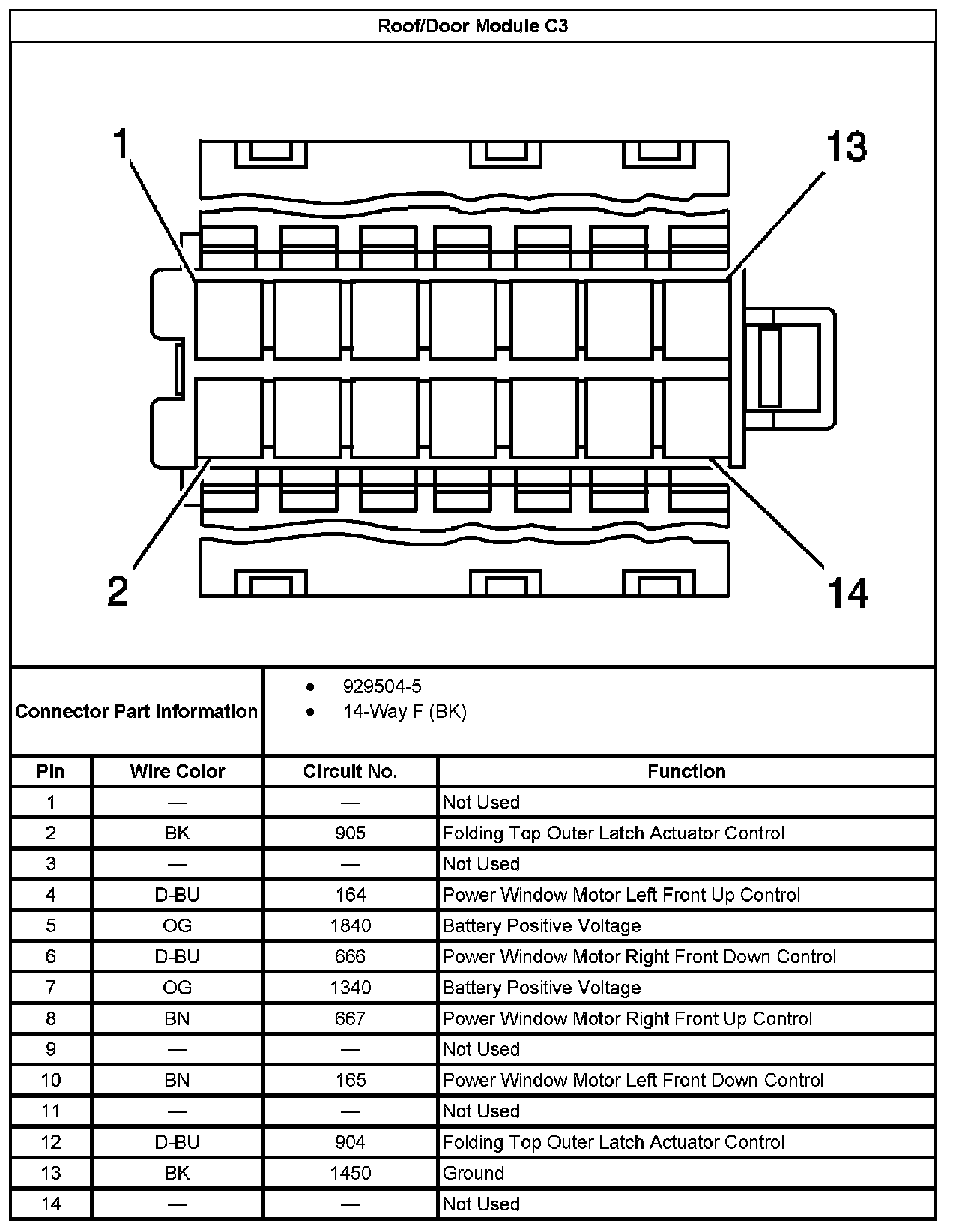

Roof/Door Module C3:



Roof/Door Module C4:
