Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Components

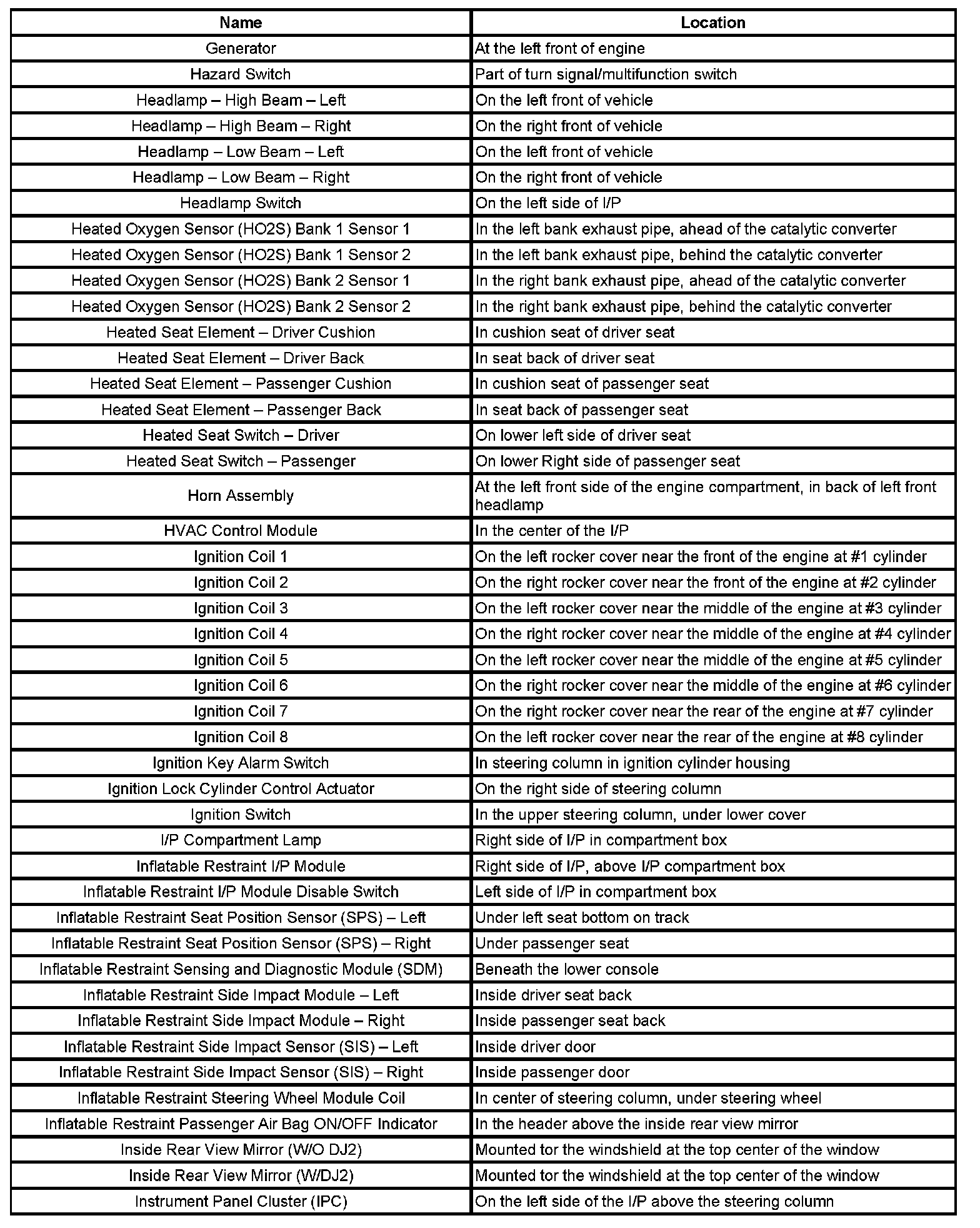

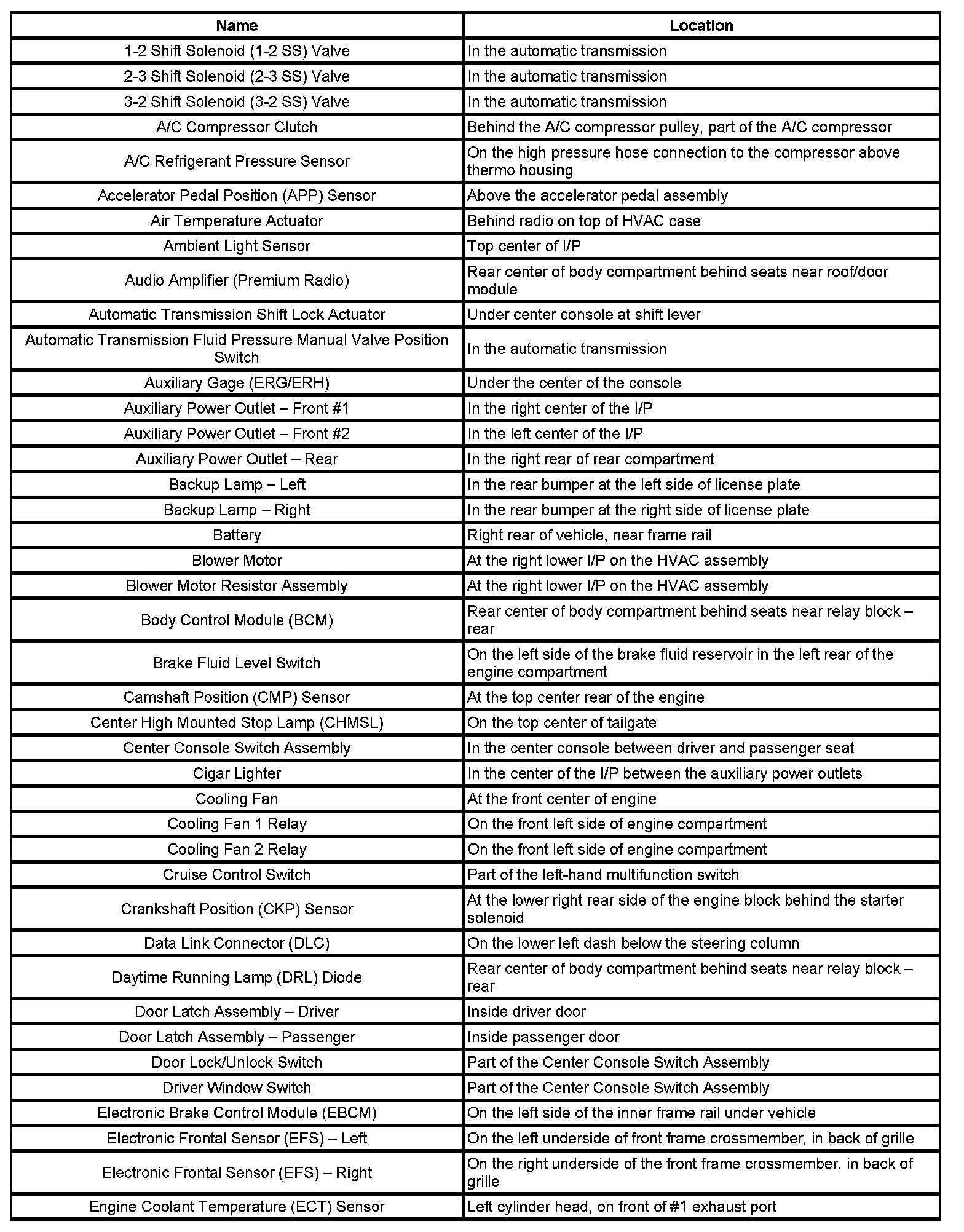

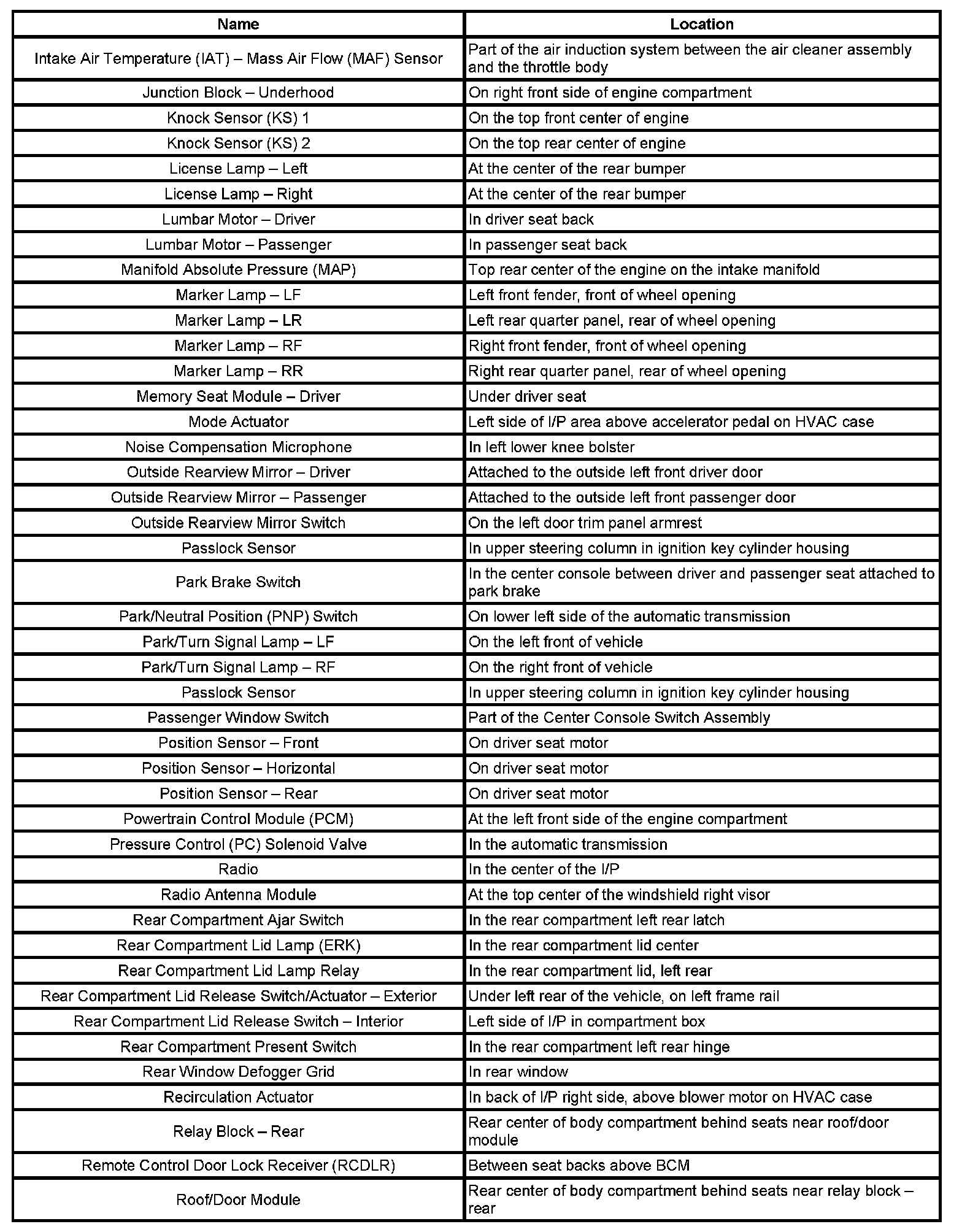

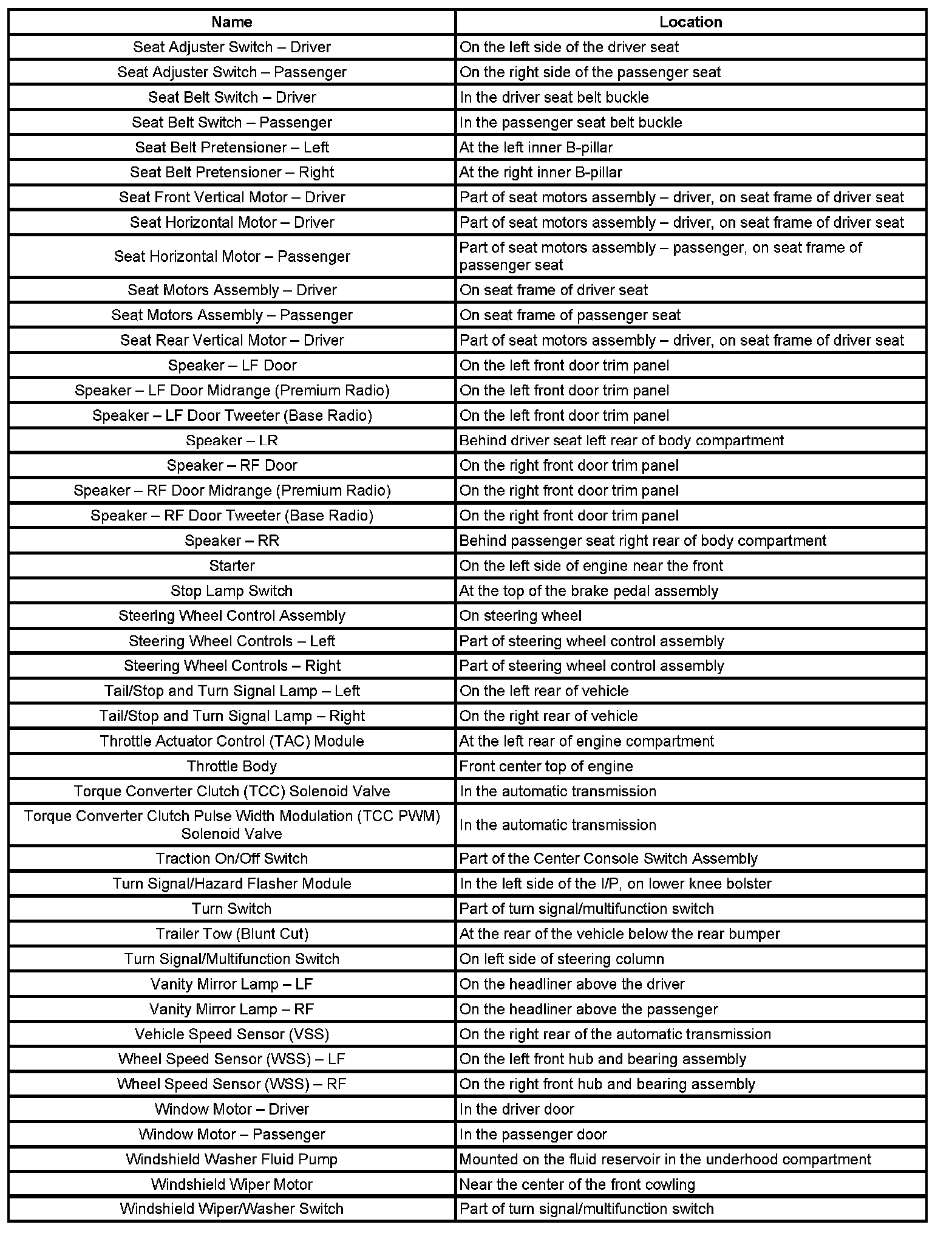

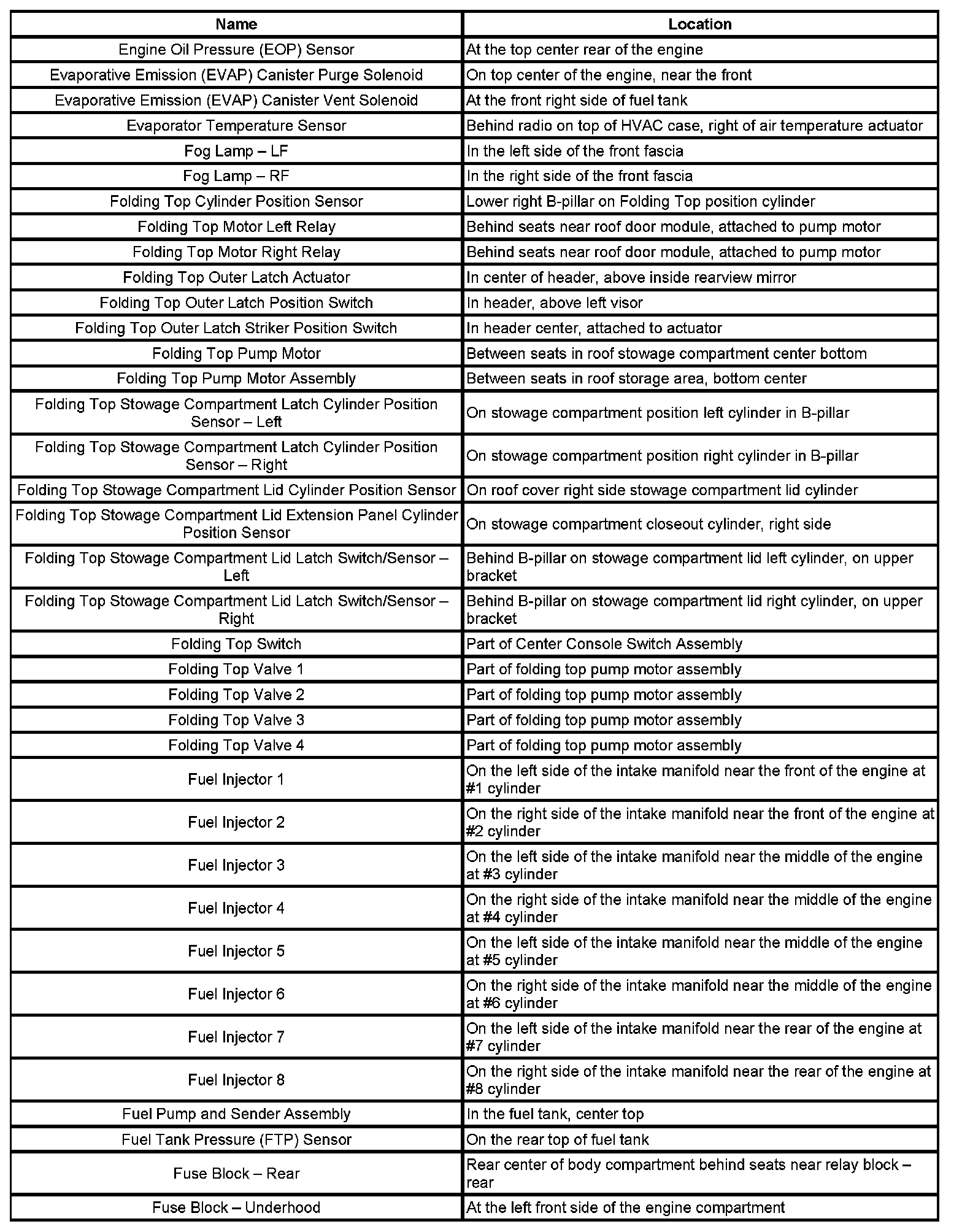

Components

1-2 Sh - En:



En - Fu:



Ge - In:



In - Ro:



Se - Wi:
