Cruise Control
>>
Locations
Cruise Control: Locations

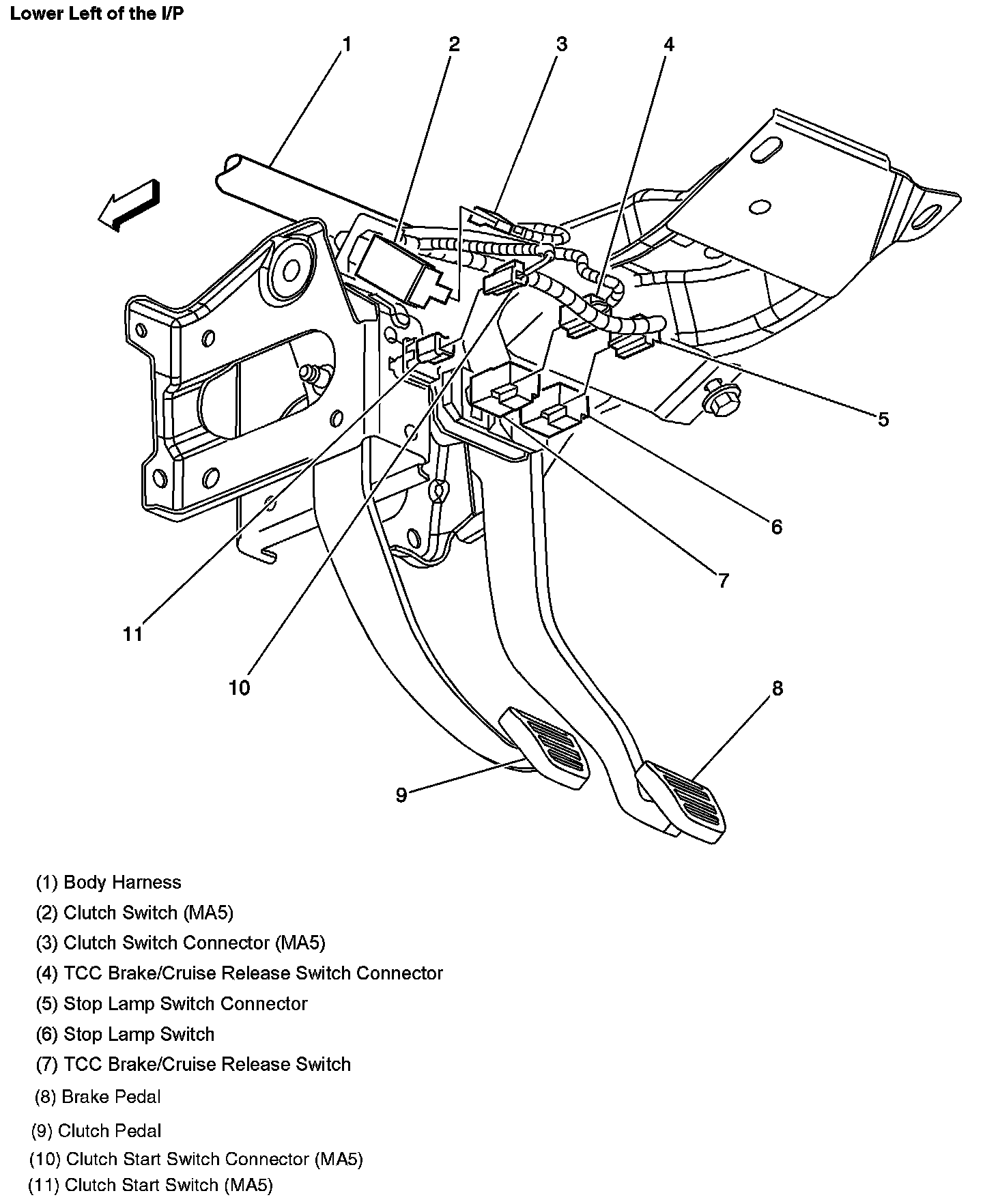

Lower Left Of The I/P:

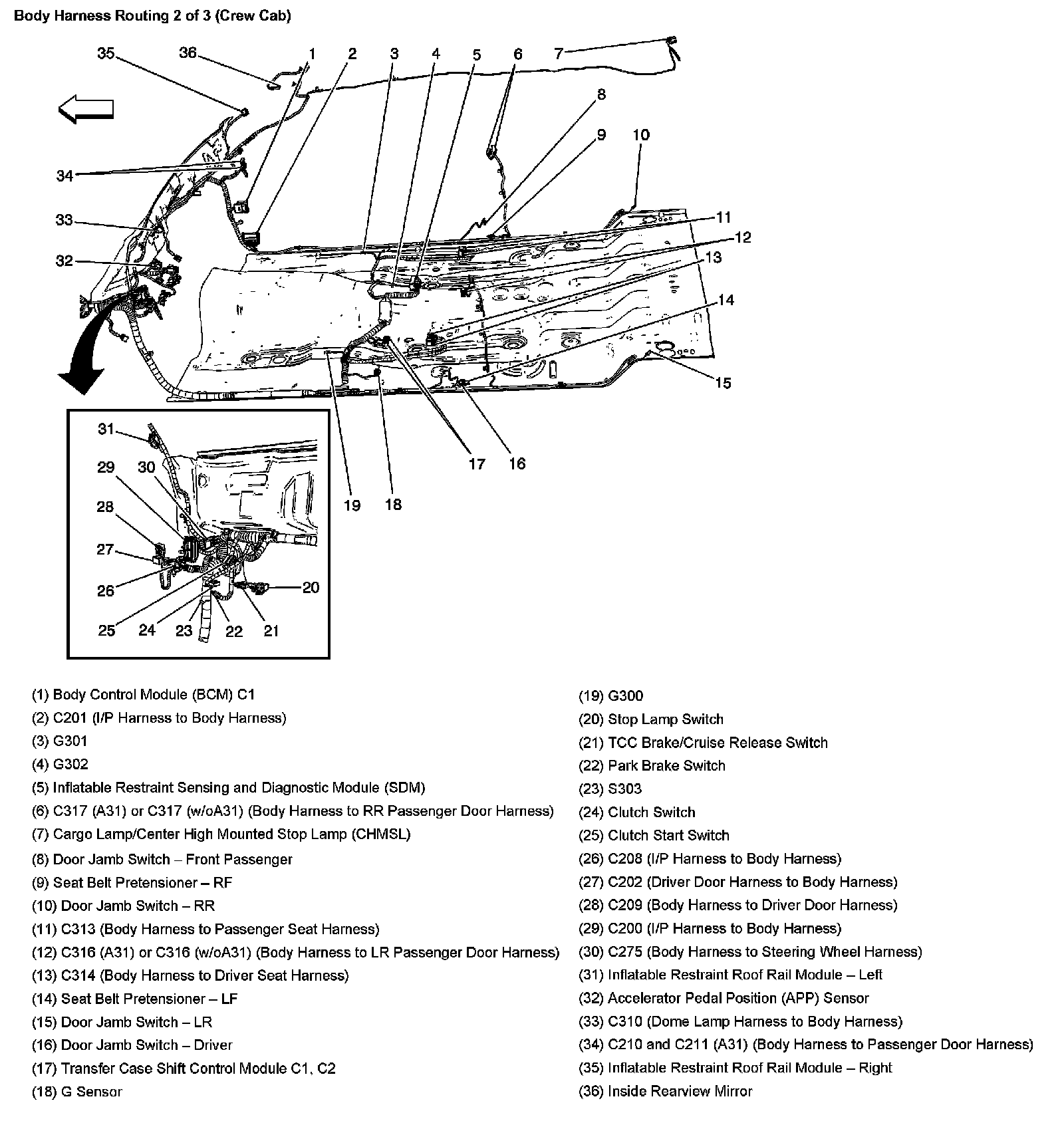

Body Harness Routing (Crew Cab) Part 2:

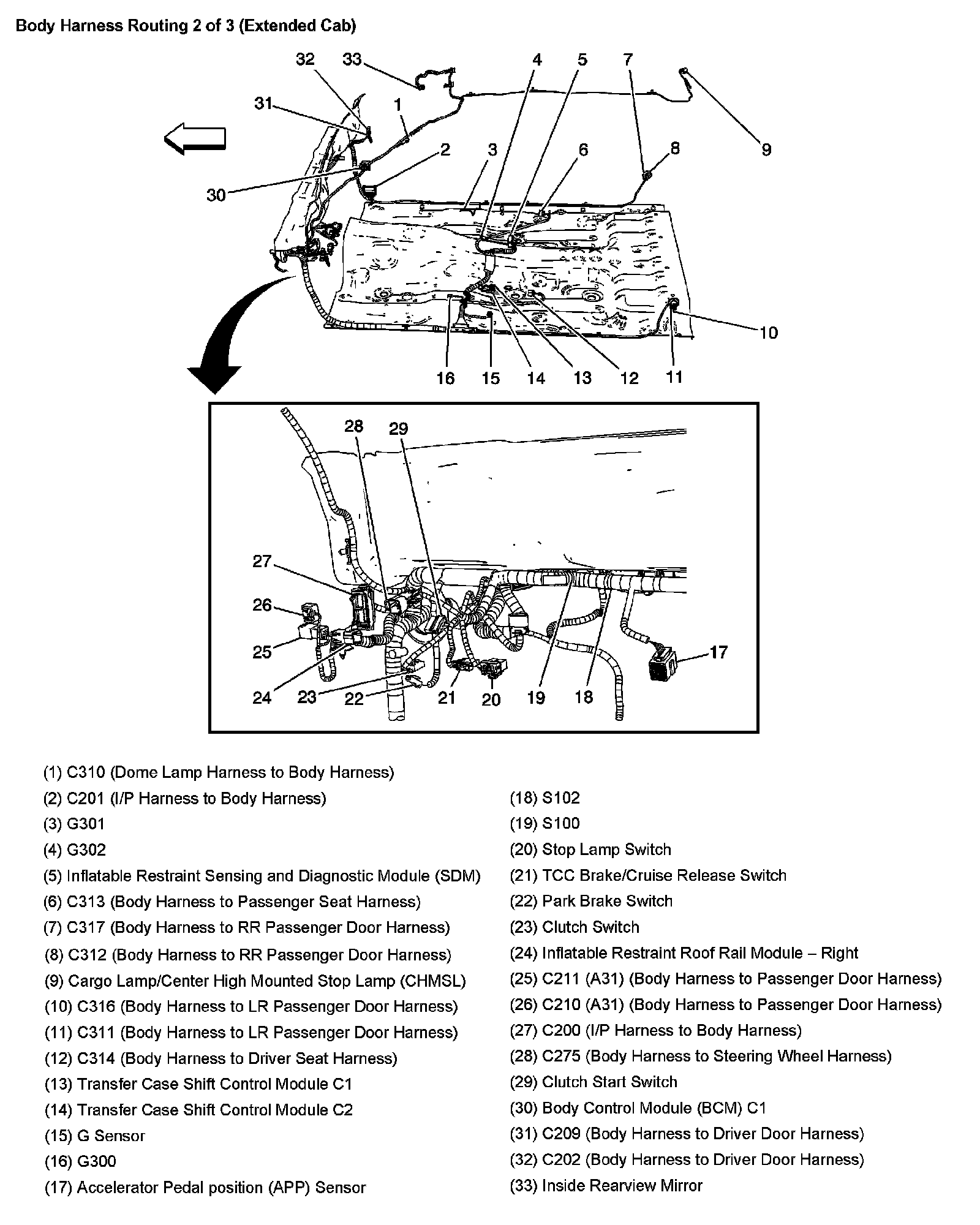

Body Harness Routing (Extended Cab) Part 2:
Body Harness Routing (Regular Cab) Part 2:

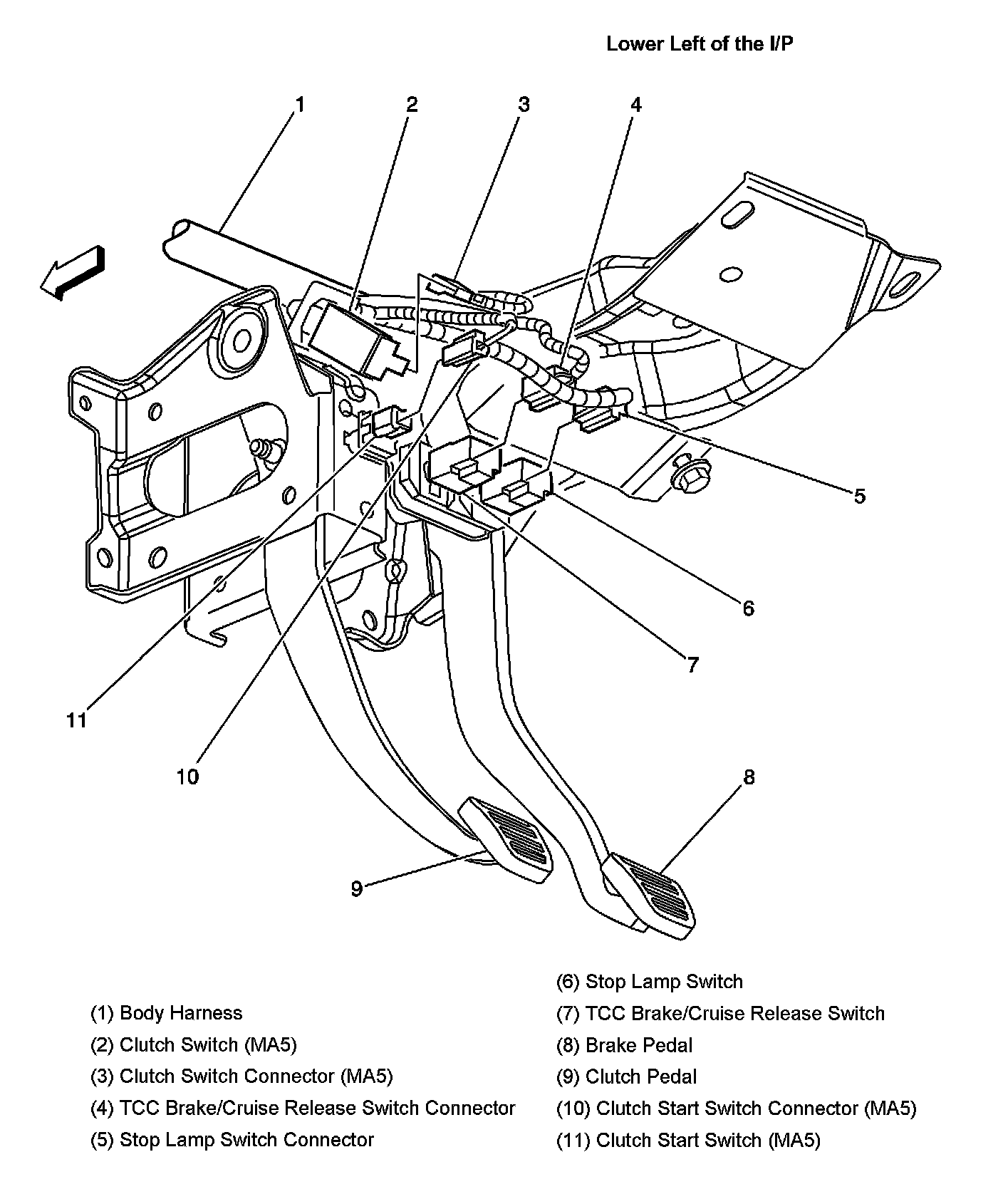

Lower Left Of The I/P:
