Home >> Chevy Truck >> 2003 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Automatic Control >> HVAC Module-Auxiliary

HVAC Module-Auxiliary

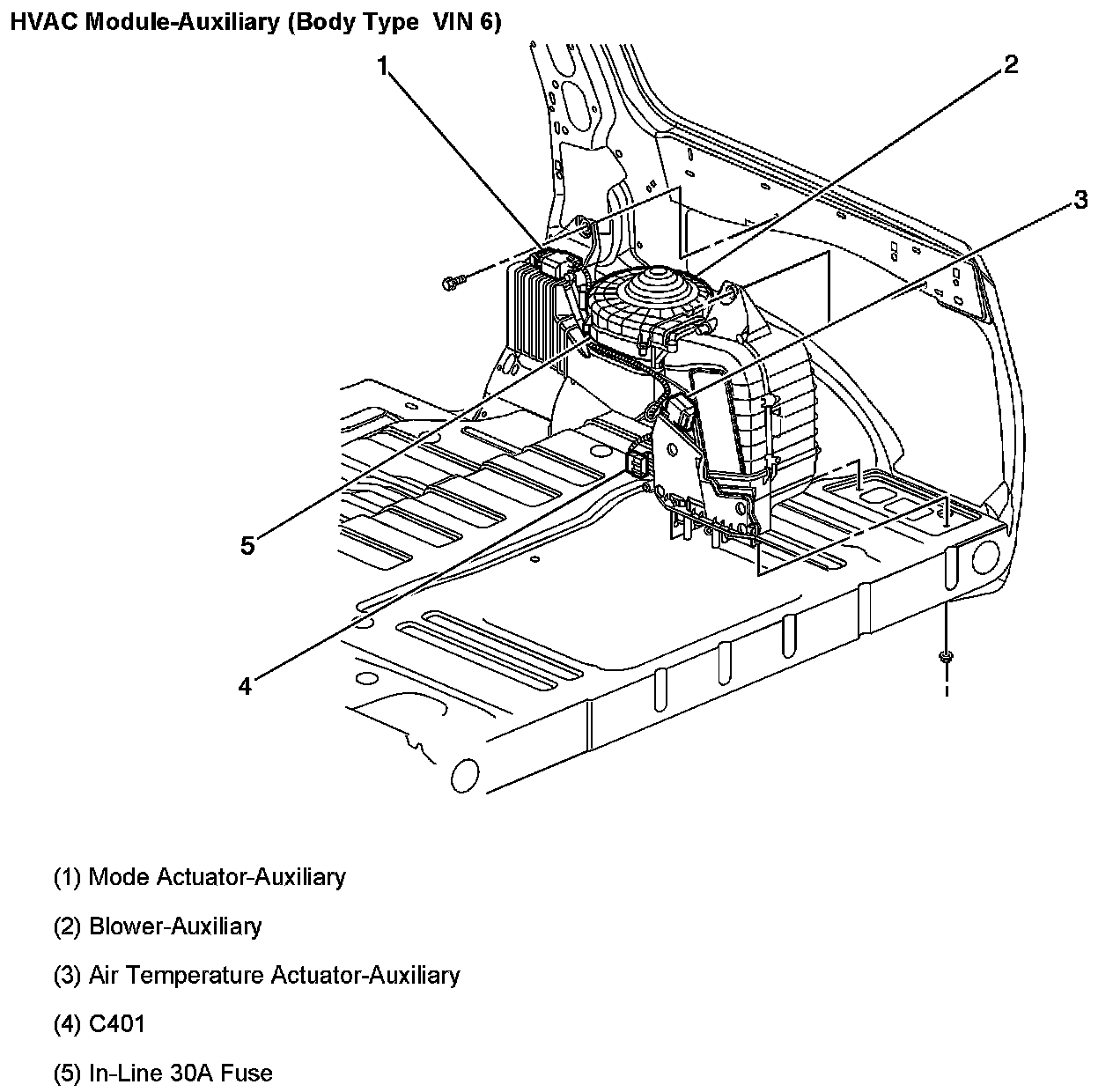

HVAC Module-Auxiliary (Body Type VIN 6):
