Home >> Chevy Truck >> 2003 >> C Tahoe 2WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Locations

Memory Positioning Module: Locations

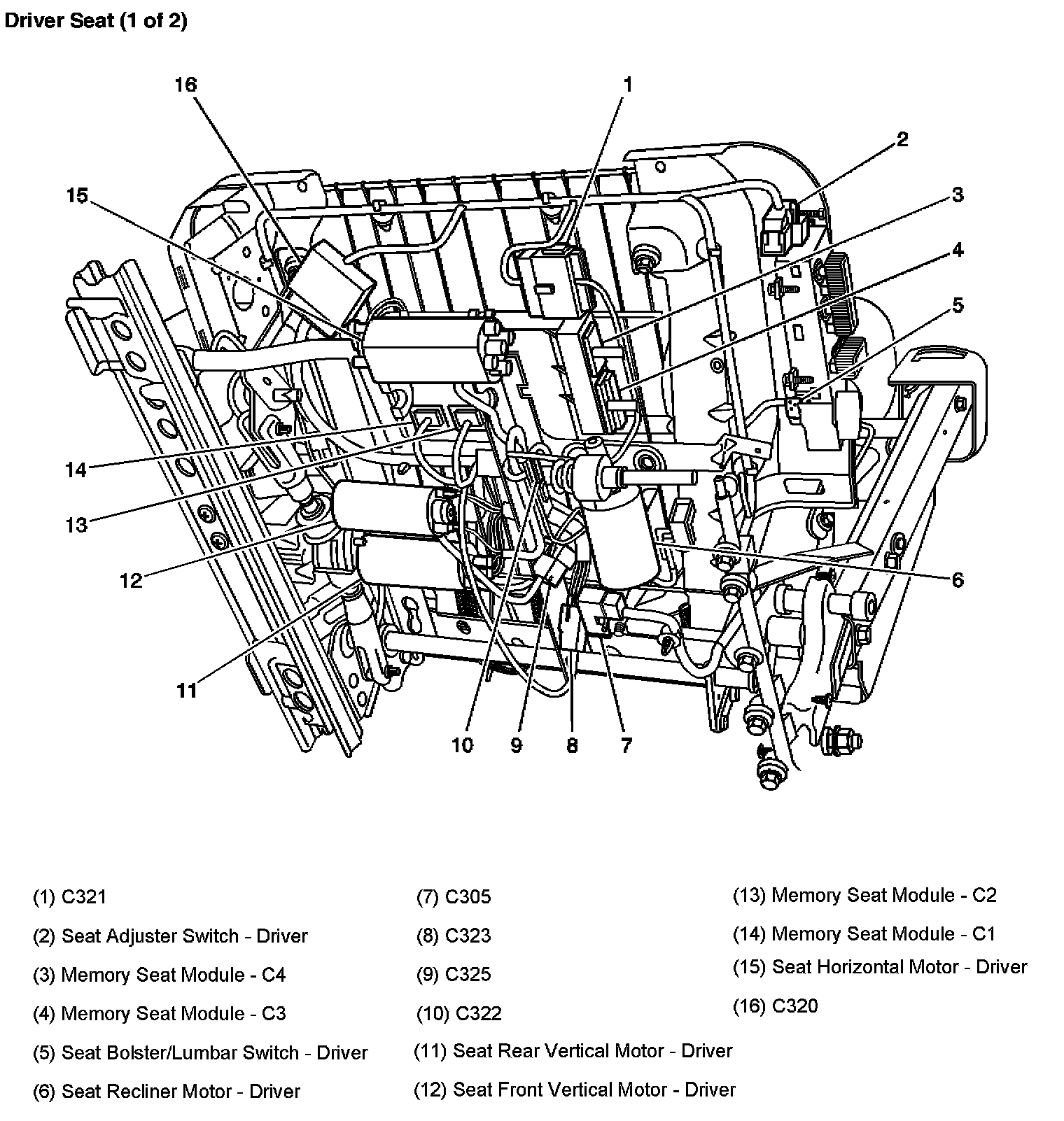

Driver Seat Part 1:

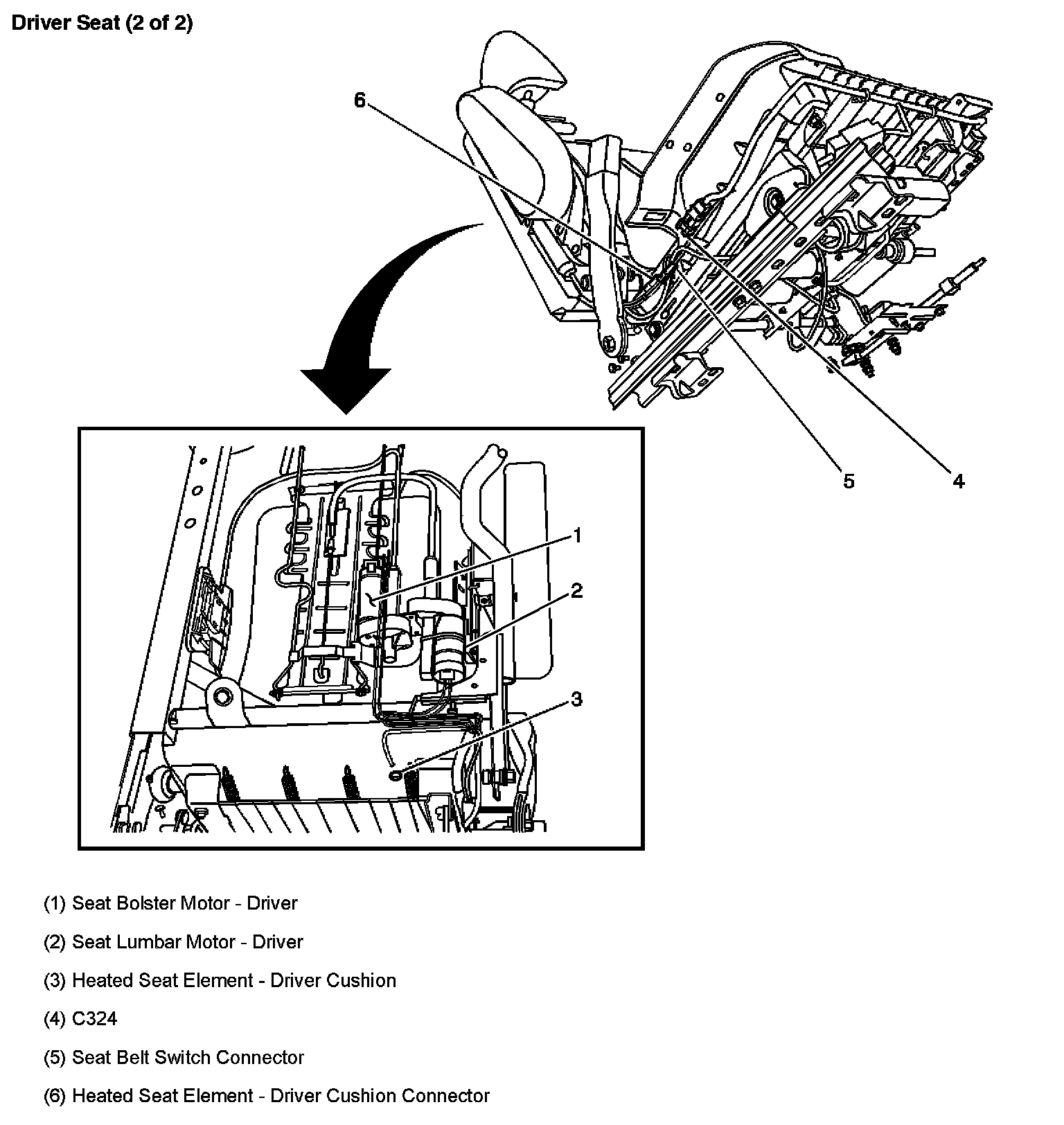

Driver Seat Part 2:
