Home >> Chevy Truck >> 2003 >> Astro Van 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Cruise Control >> Cruise Control Switch >> Locations

Cruise Control Switch: Locations

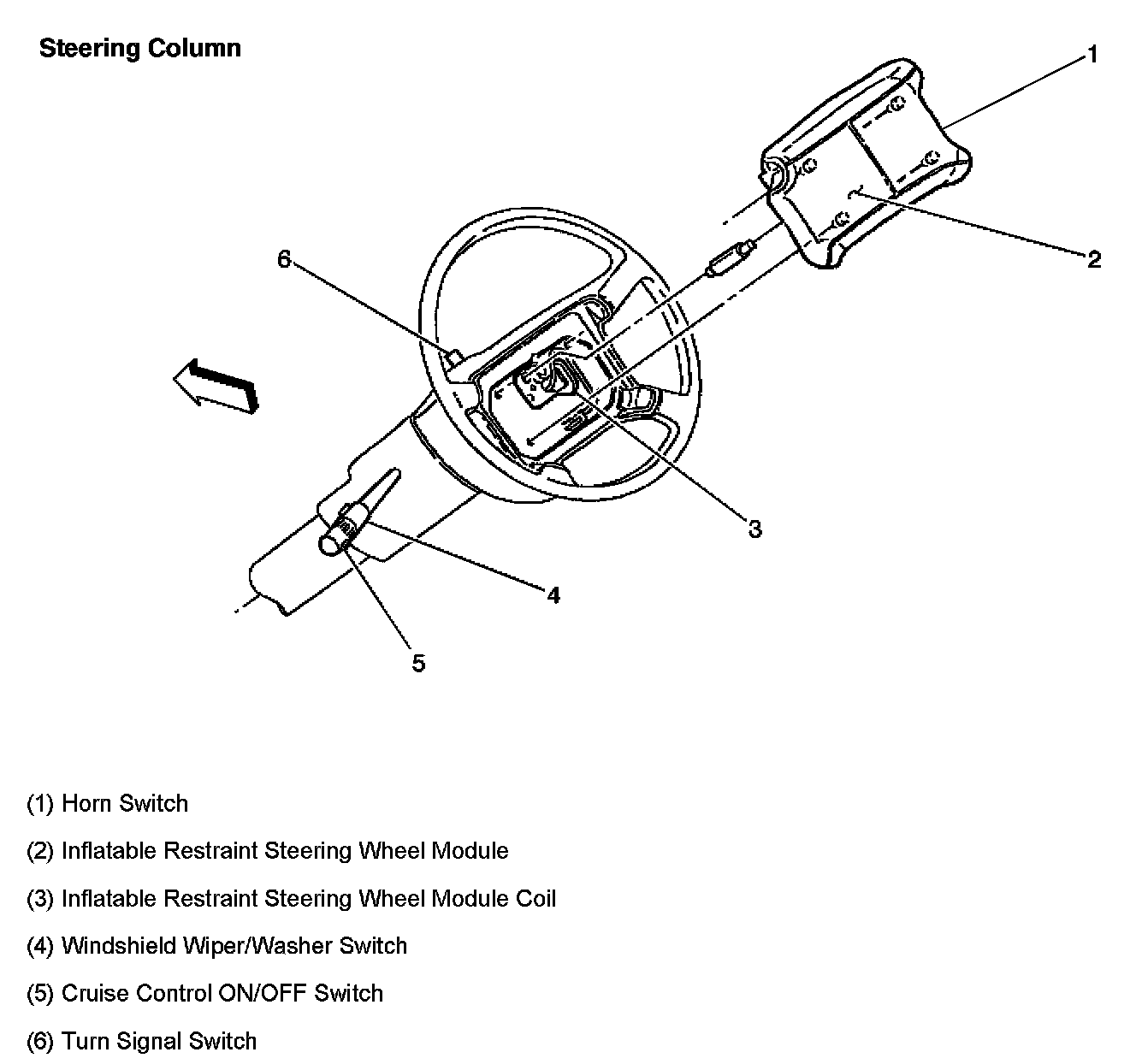

Steering Column:

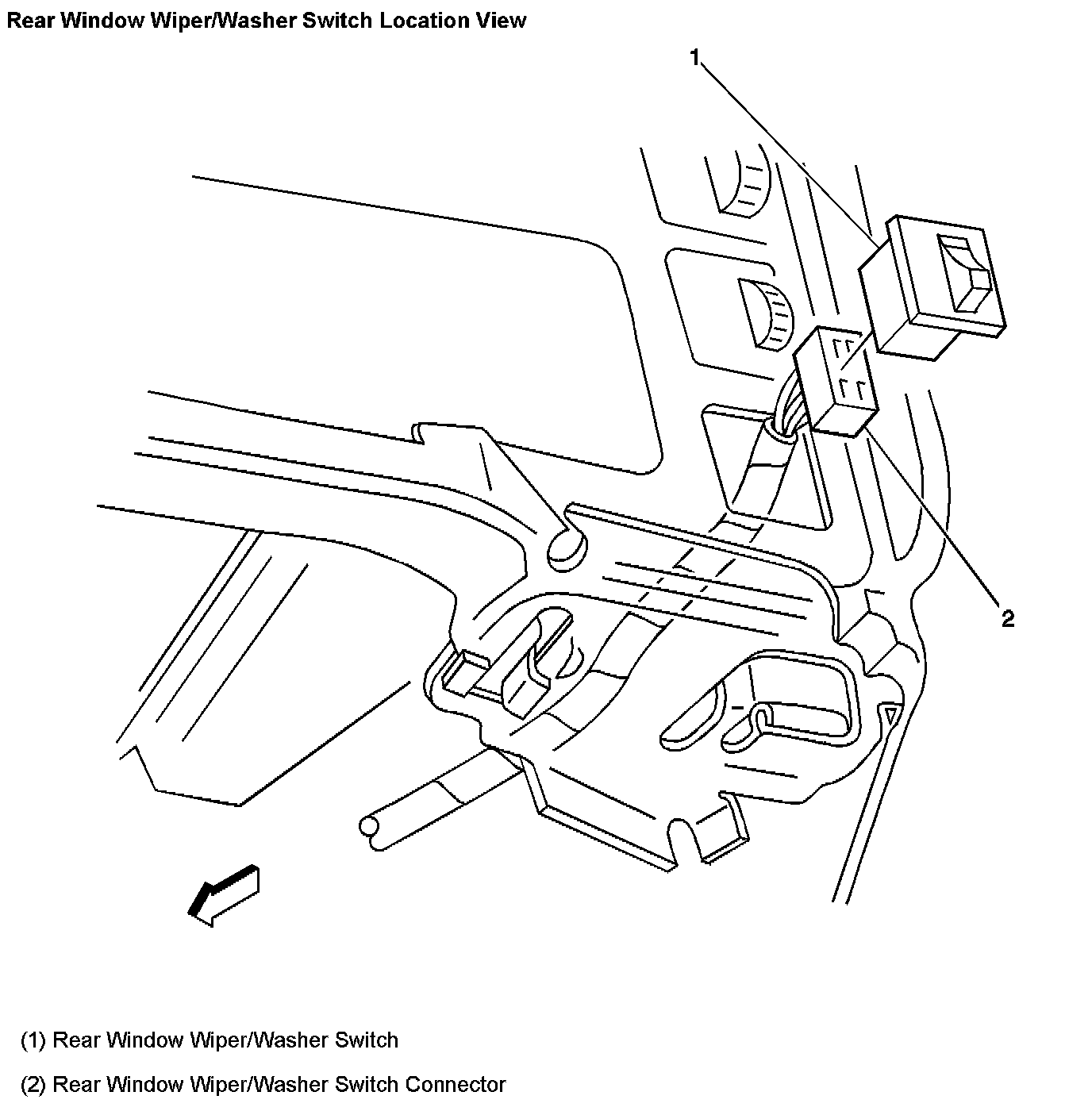

Rear Window Wiper/Washer Switch Location View:
