FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block Application Table
Fuse Block Application Table

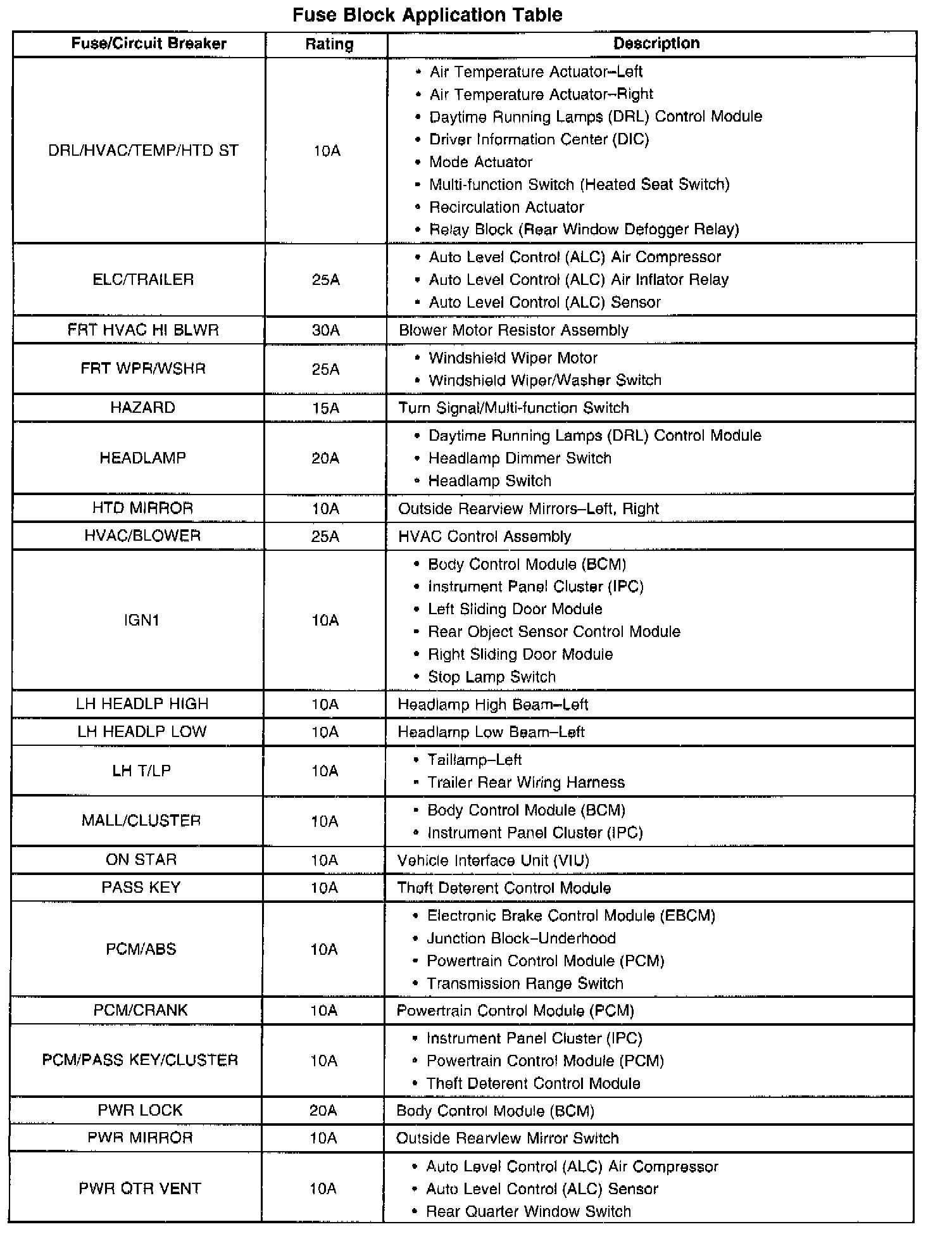

Fuse Block Application Table (Part 1 Of 3):

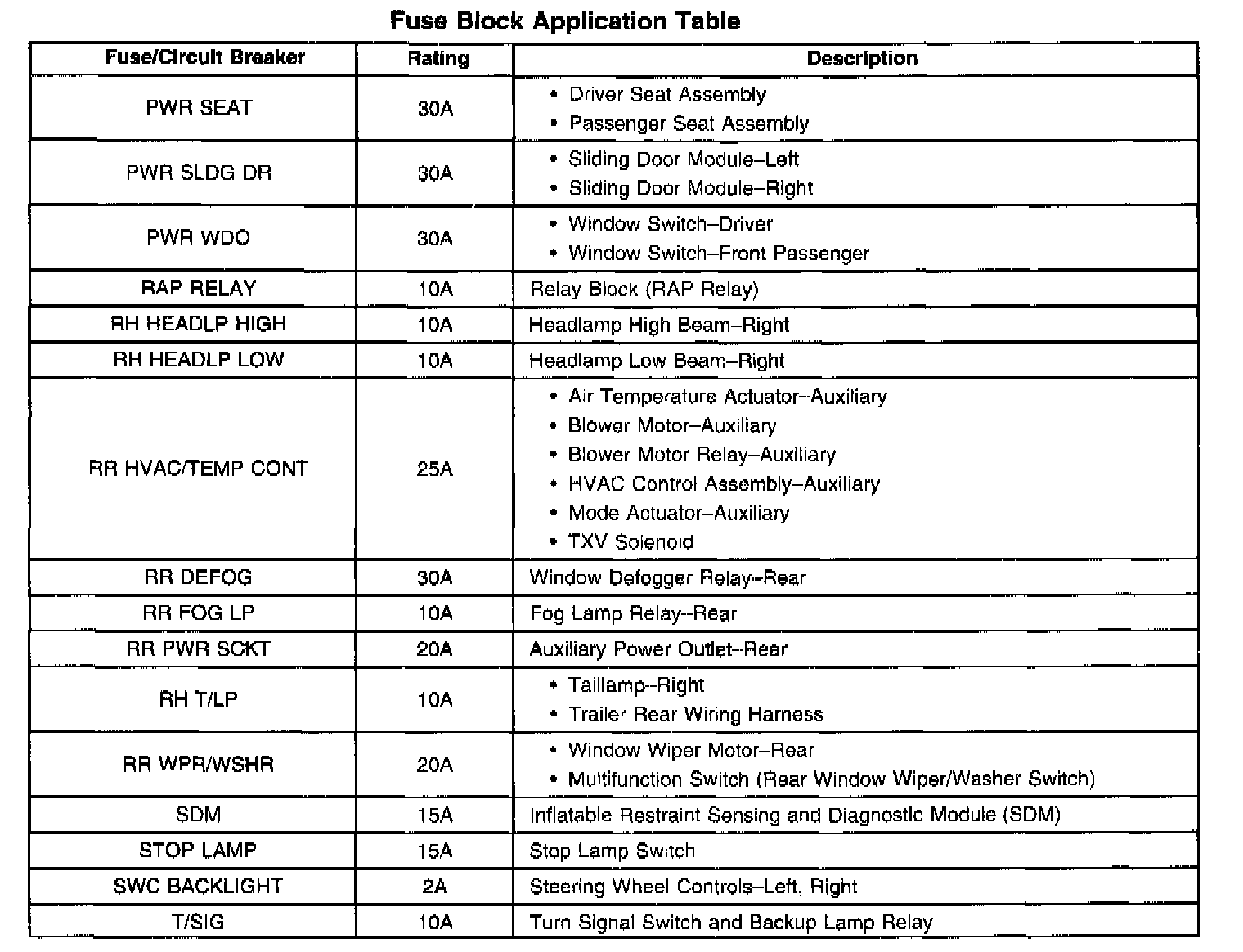

Fuse Block Application Table (Part 2 Of 3):
Fuse Block Application Table (Part 3 Of 3):
