Class 2 Serial Data, MIL, DLC, UART
>>
SP205, Transfer Case Shift Control Module, Memory Mirror Module
SP205, Transfer Case Shift Control Module, Memory Mirror Module

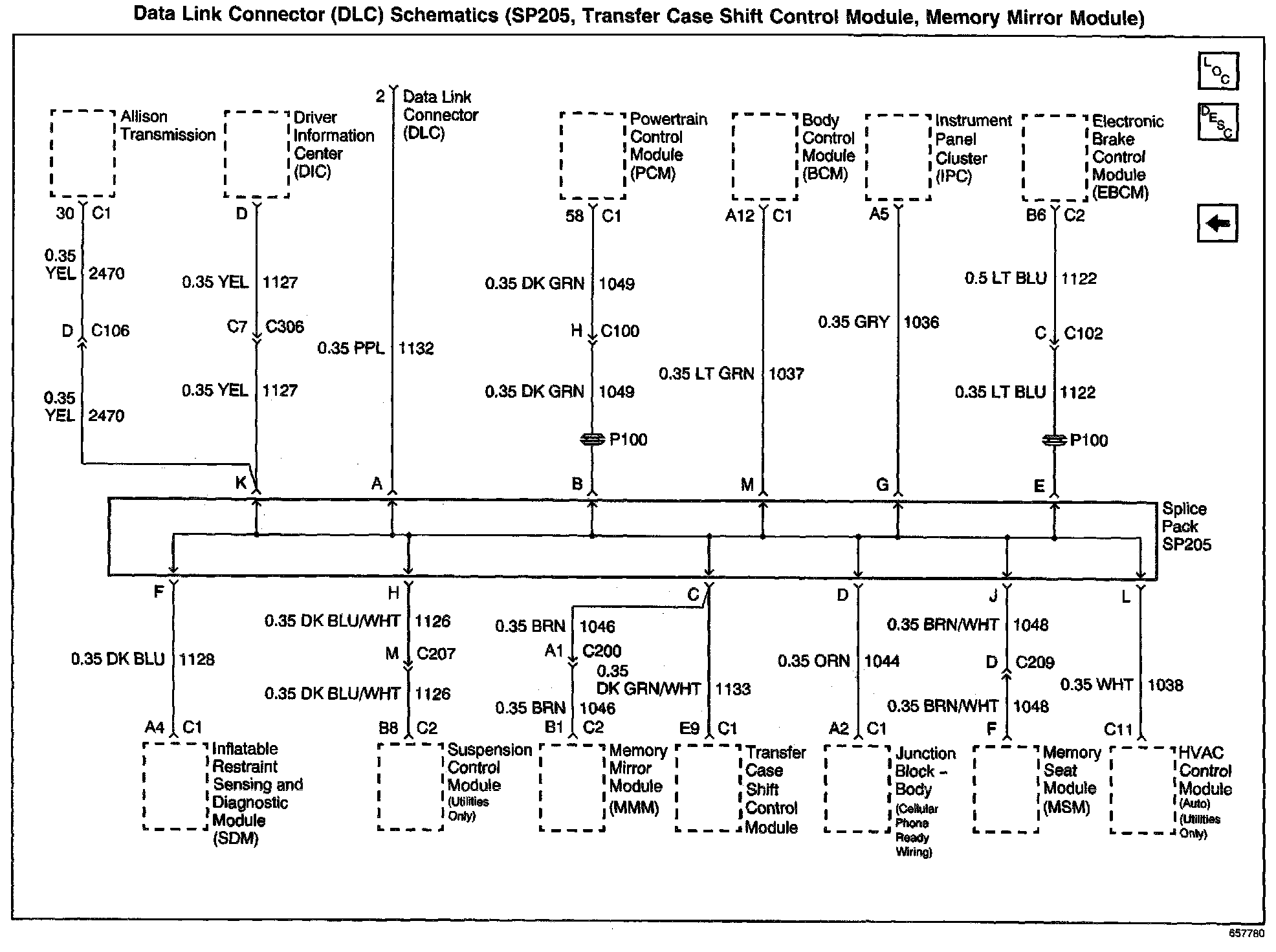

Data Link Connector (DLC) Schematics: SP205, Transfer Case Shift Control Module, Memory Mirror Module:
