Front Seat Adjuster Track Finish Cover Replacement (Inner)

Front Seat Adjuster Track Finish Cover Replacement (Inner)

Removal Procedure





1. Remove the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .

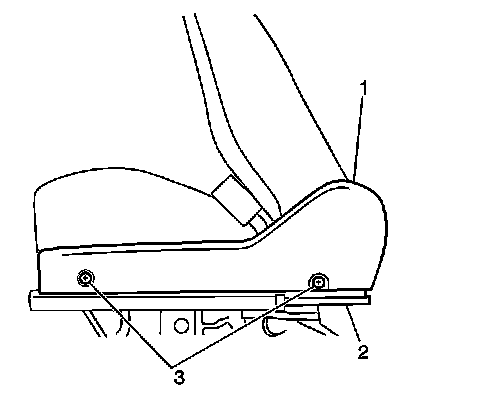

2. Remove the following components from the seat inner adjuster (2):

* The 2 screws (3)
* The seat inner adjuster finish cover (1)




Installation Procedure





1. Install the seat inner adjuster finish cover (1) to the seat inner adjuster (2). Secure the cover with the 2 screws (3).
2. Install the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .
