Front Seat Adjuster Replacement (Inner)

Front Seat Adjuster Replacement (Inner)

Removal Procedure





1. Remove the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .
2. Remove the front seat inner adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement (Outer) (Front Seat Adjuster Track Finish Cover Replacement (Outer))Front Seat Adjuster Track Finish Cover Replacement (Inner) (Front Seat Adjuster Track Finish Cover Replacement (Inner)) .
3. Remove the front seat outer adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement (Outer) (Front Seat Adjuster Track Finish Cover Replacement (Outer))Front Seat Adjuster Track Finish Cover Replacement (Inner) (Front Seat Adjuster Track Finish Cover Replacement (Inner)) .
4. Remove the front seat back cushion. Refer to Front Seat Back Replacement (Front Seat Back Replacement) .
5. Remove the front seat cushion. Refer to Front Seat Cushion Replacement (Front Seat Cushion Replacement)

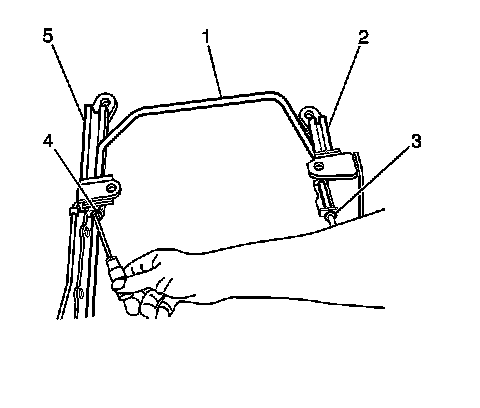

6. Lift the retaining spring (3) and remove the seat adjuster handle (1) from the inner seat adjuster (2).
7. Remove the inner seat adjuster (2) from the seat adjuster lateral rod.
8. Remove the following components from the inner seat adjuster (2):

1. The anchor bolt
2. The seat belt buckle




Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the seat belt buckle to the inner seat adjuster. Secure the buckle with the anchor bolt.

Tighten the front seat belt buckle anchor bolt to 35 N.m (25 lb ft).

2. Install the inner seat adjuster (2) to the seat adjuster lateral rod.
3. Install the seat adjuster handle (1) to the inner seat adjuster (2). Ensure that the handle is locked into position by the retaining spring (3).
4. Install the front seat cushion. Refer to Front Seat Cushion Replacement (Front Seat Cushion Replacement)
5. Install the front seat back cushion. Refer to Front Seat Back Replacement (Front Seat Back Replacement) .
6. Install the front seat outer adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement (Outer) (Front Seat Adjuster Track Finish Cover Replacement (Outer))Front Seat Adjuster Track Finish Cover Replacement (Inner) (Front Seat Adjuster Track Finish Cover Replacement (Inner)) .
7. Install the front seat inner adjuster finish cover. Refer to Front Seat Adjuster Track Finish Cover Replacement (Outer) (Front Seat Adjuster Track Finish Cover Replacement (Outer))Front Seat Adjuster Track Finish Cover Replacement (Inner) (Front Seat Adjuster Track Finish Cover Replacement (Inner)) .
8. Install the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .
