Headliner Replacement - Rear

Headlining Rear Trim Panel Replacement

Removal Procedure

1. Remove the rear passenger seats. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
2. Remove the front headliner. Refer to Headlining Front Trim Panel Replacement (Headliner Replacement - Front) .
3. Remove the driver side body side front garnish molding. Refer to Body Side Front Garnish Molding Replacement - Left Side (Body Side Front Garnish Molding Replacement - Left Side) .
4. Remove the passenger side front corner garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement - Right Side (Center Pillar Upper Garnish Molding Replacement - Right Side) .
5. Remove the body side rear upper garnish moldings. Refer to Body Side Rear Upper Garnish Molding Replacement (Body Side Rear Upper Garnish Molding Replacement) .
6. Remove the coat hooks. Refer to Coat Hook Replacement (Removal and Replacement) .
7. Remove the rear heater controls, if equipped. Refer to Control Assembly Replacement.
8. Remove the dome lamps. Refer to Dome Lamp Replacement (All except Luxury) in Lighting Systems.

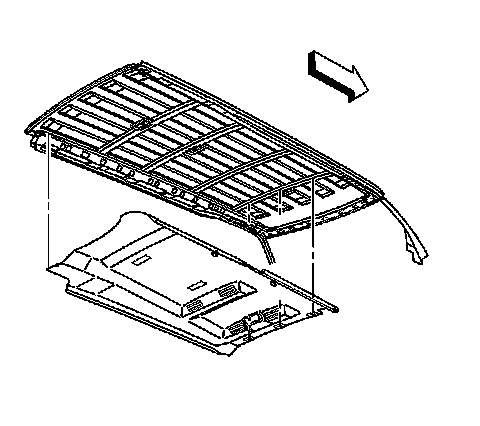

9. Remove the rear headliner from the vehicle.



Installation Procedure





1. Install the rear headliner to the vehicle.
2. Install the dome lamps. Refer to Dome Lamp Replacement (All except Luxury) in Lighting Systems.
3. Install the rear heater controls, if equipped. Refer to Control Assembly Replacement.
4. Install the coat hooks. Refer to Coat Hook Replacement (Removal and Replacement) .
5. Install the body side rear upper garnish moldings. Refer to Body Side Rear Upper Garnish Molding Replacement (Body Side Rear Upper Garnish Molding Replacement) .
6. Install the passenger side front corner garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement - Right Side (Center Pillar Upper Garnish Molding Replacement - Right Side) .
7. Install the driver side body side front garnish molding. Refer to Body Side Front Garnish Molding Replacement - Left Side (Body Side Front Garnish Molding Replacement - Left Side) .
8. Install the front headliner. Refer to Headlining Front Trim Panel Replacement (Headliner Replacement - Front) .
9. Install the rear passenger seats. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
