Home
>>
Chevy Truck
>>
1996
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Data List
>>
Specific Engine Data
>>
Misfire Data
Misfire Data

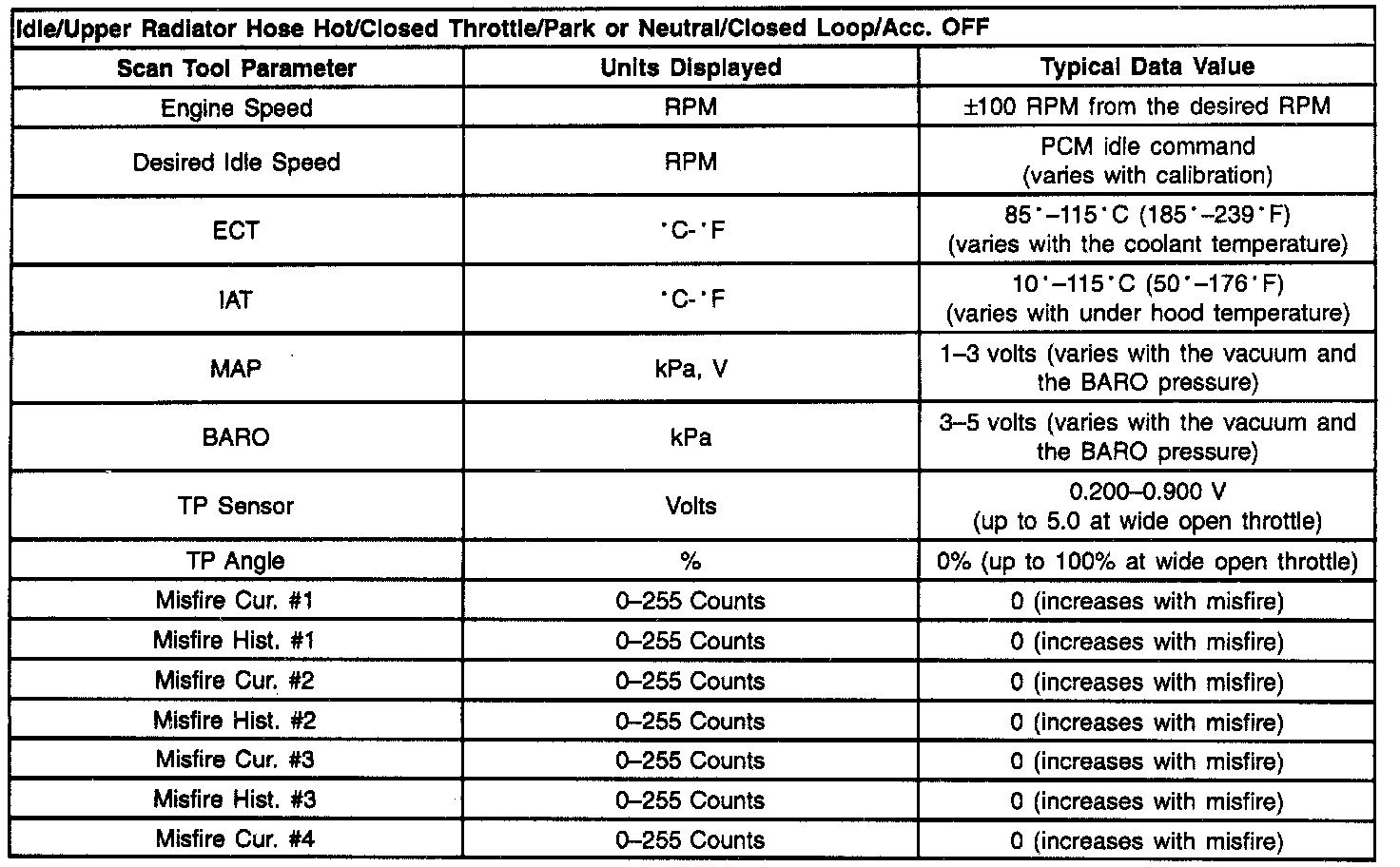

Scan Tool Data Specific Engine, Misfire Data (1 Of 2):
Scan Tool Data Specific Engine, Misfire Data (2 Of 2):
