EGR Data
EGR Data

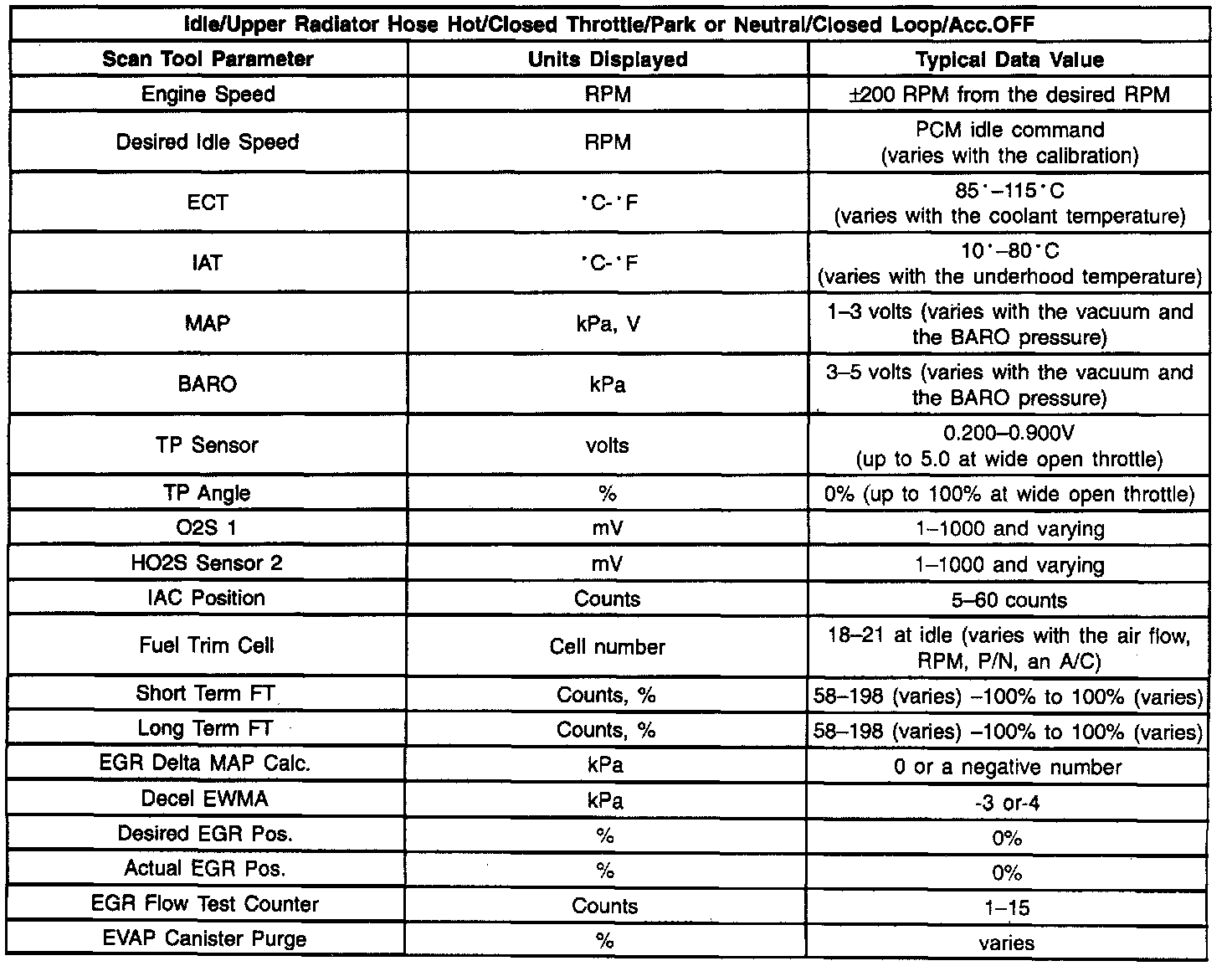

Scan Tool Data Specific Engine, EGR/EVAP (1 Of 2):
Scan Tool Data Specific Engine, EGR/EVAP (2 Of 2):
