FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Chevy Truck >> 1996 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Engine Data >> Engine 2 Data

Engine 2 Data

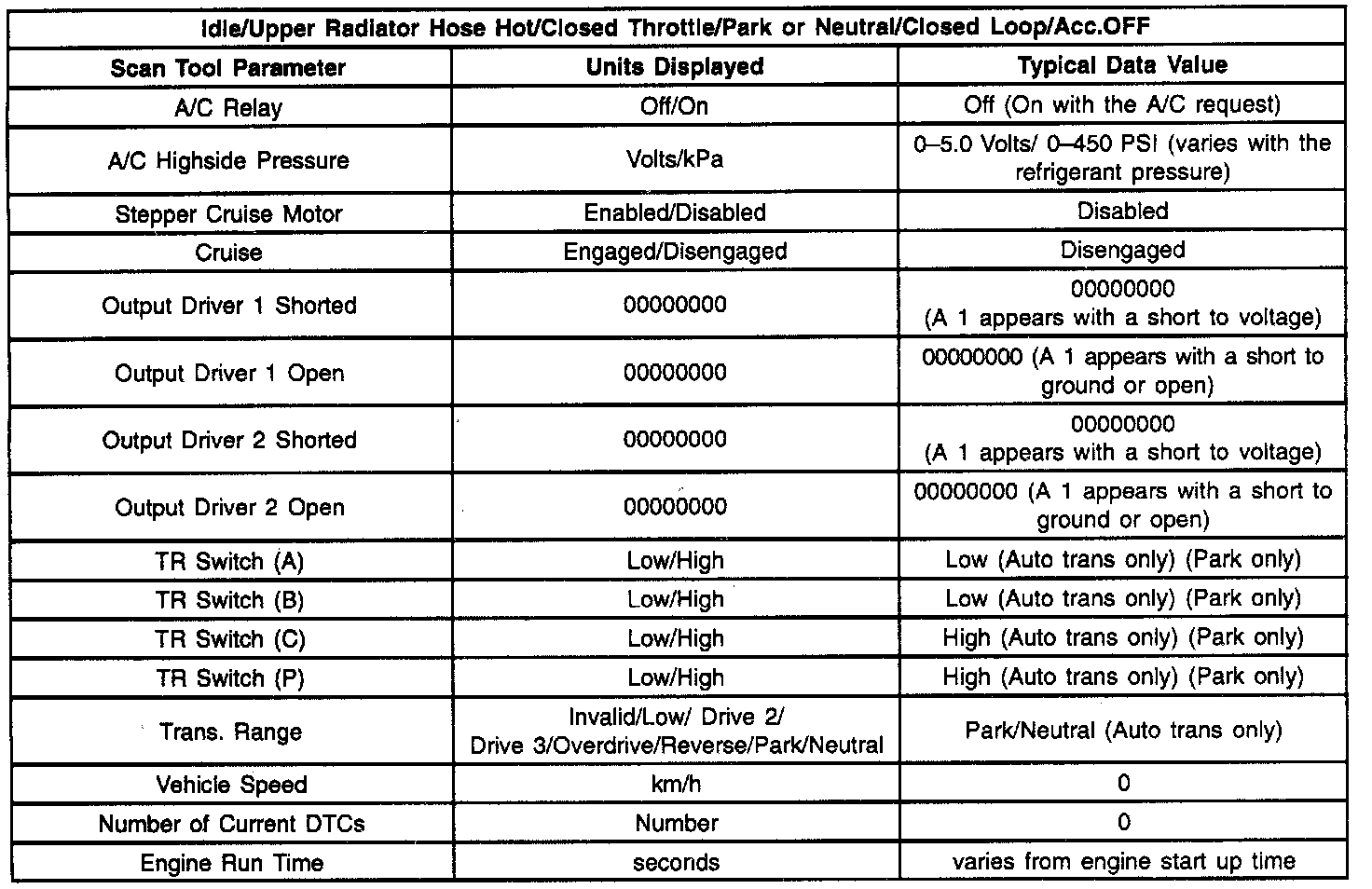

Scan Tool Data Engine 2 Data (1 Of 2):

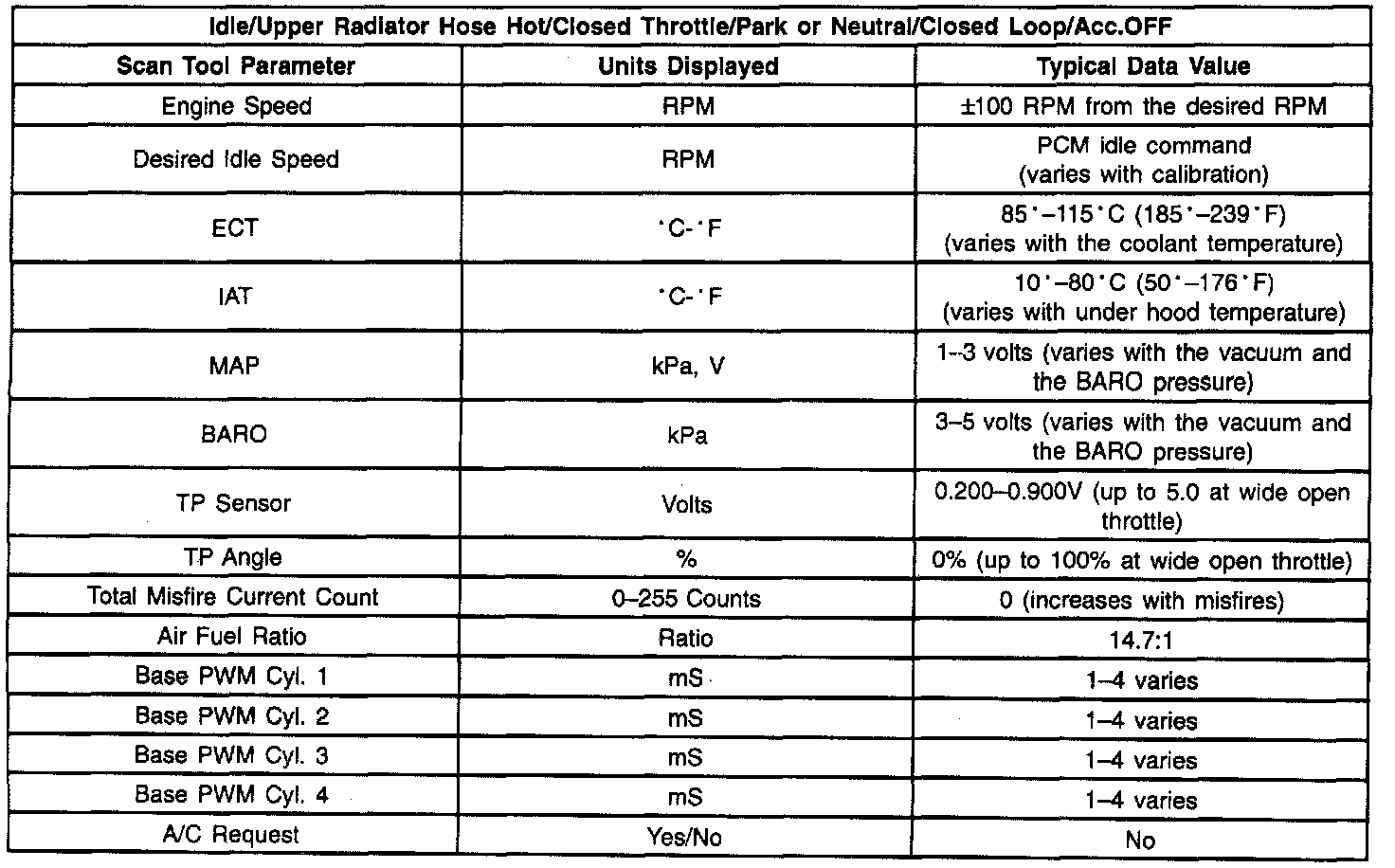

Scan Tool Data Engine 2 Data (2 Of 2):
