Home >> Chevy Truck >> 1996 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Interior Lamps Control Module

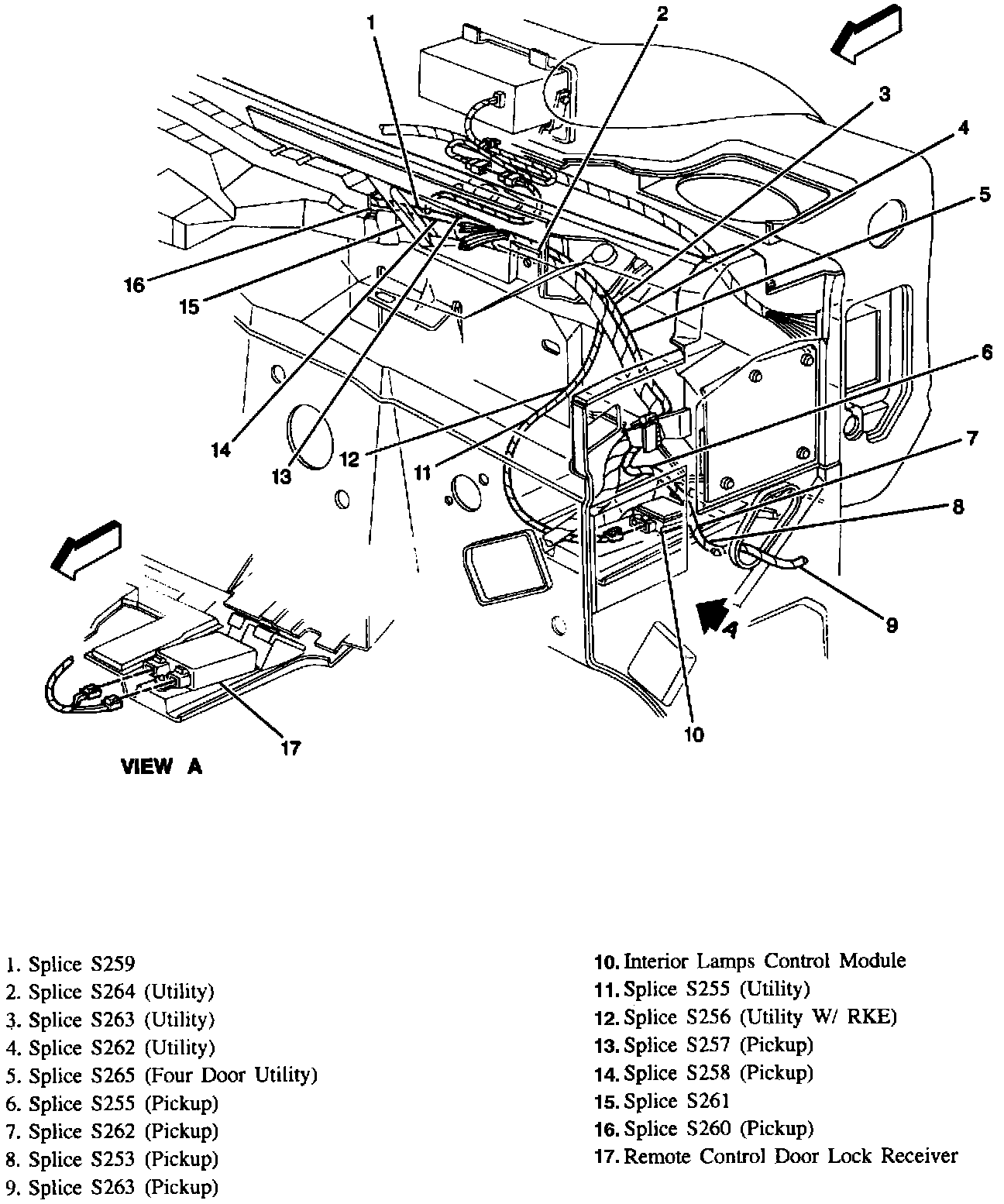

Interior Lamps Control Module

Remote Keyless Entry/Interior Lamp Control Wiring:
