Home >> Chevy Truck >> 1996 >> G 10 Van V8-5.7L VIN R >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Engine

Fastener Tightening Specifications - Engine

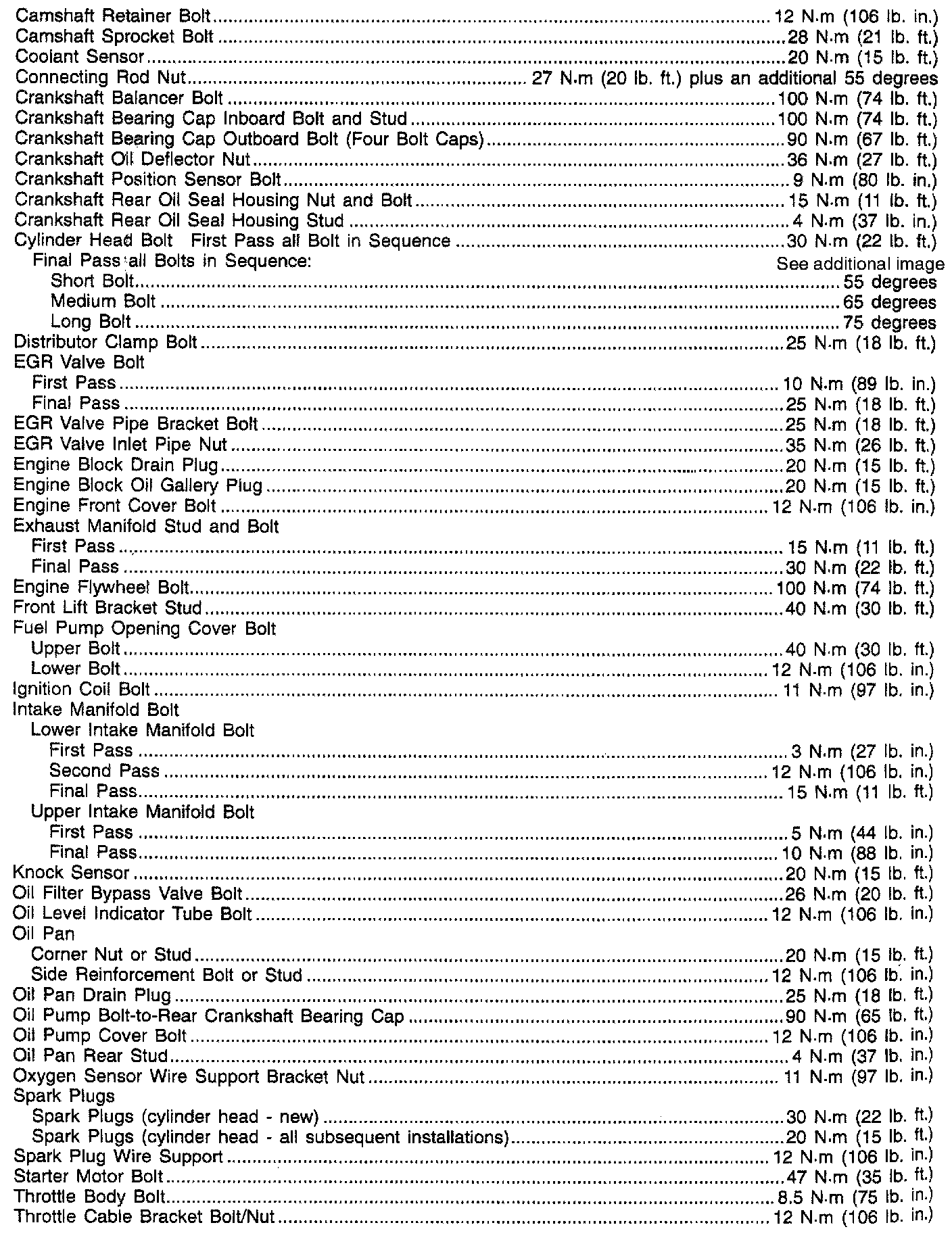

5.0L And 5.7L - Torque Specifications:



5.0L And 5.7L - Torque Specifications:
