Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
4WAL Module
4WAL Module

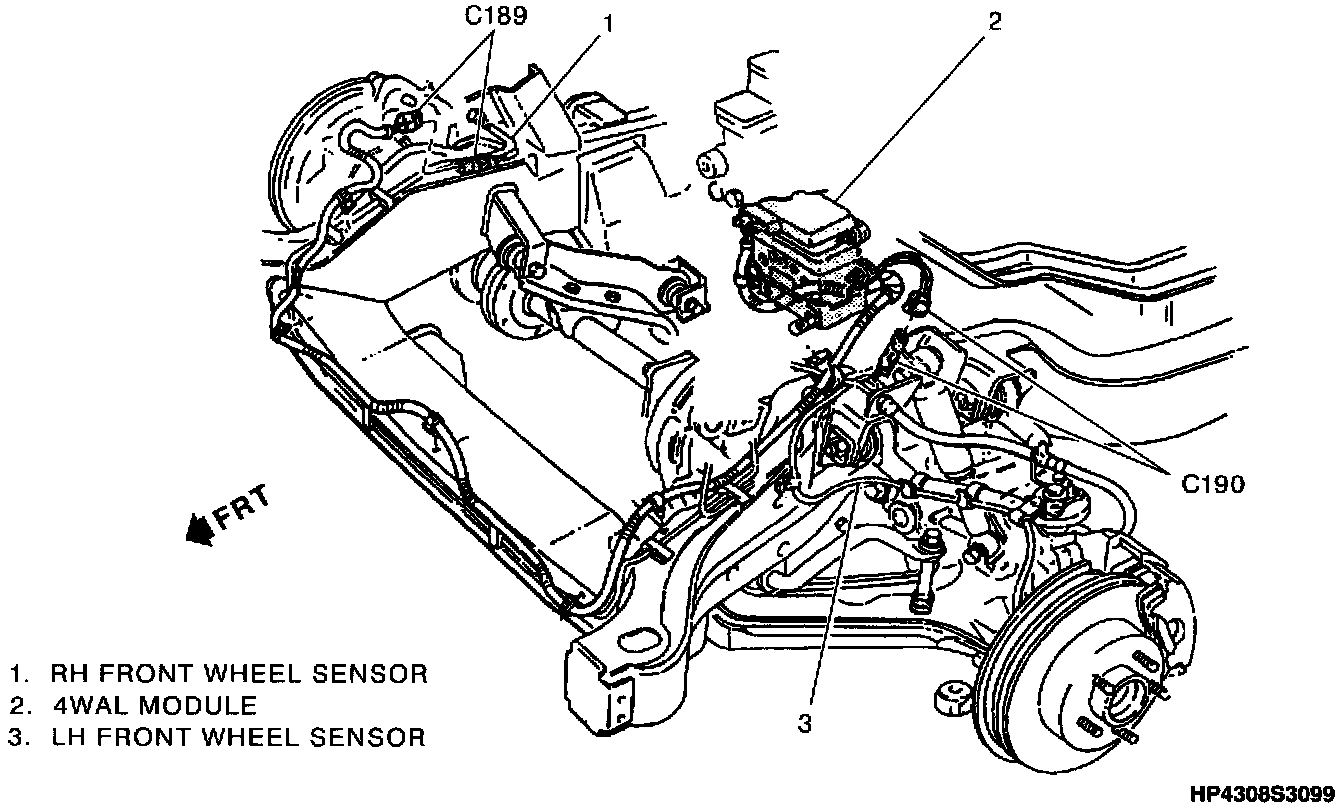

Four Wheel Antilock Front Brake Sensors:
