Home >> Chevy Truck >> 1994 >> G 20 Van V8-393 6.5L DSL >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Keyless Entry Module

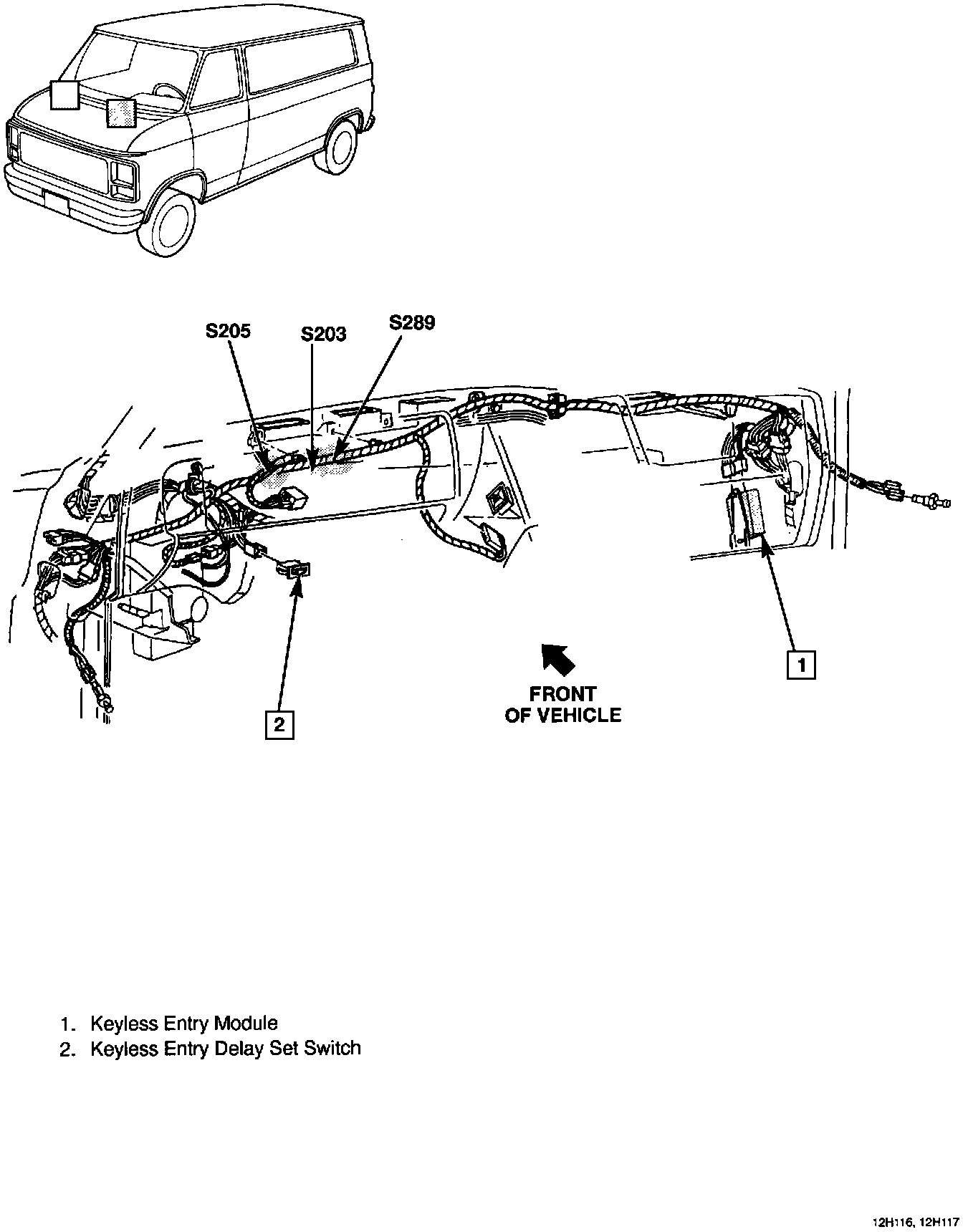

Keyless Entry Module

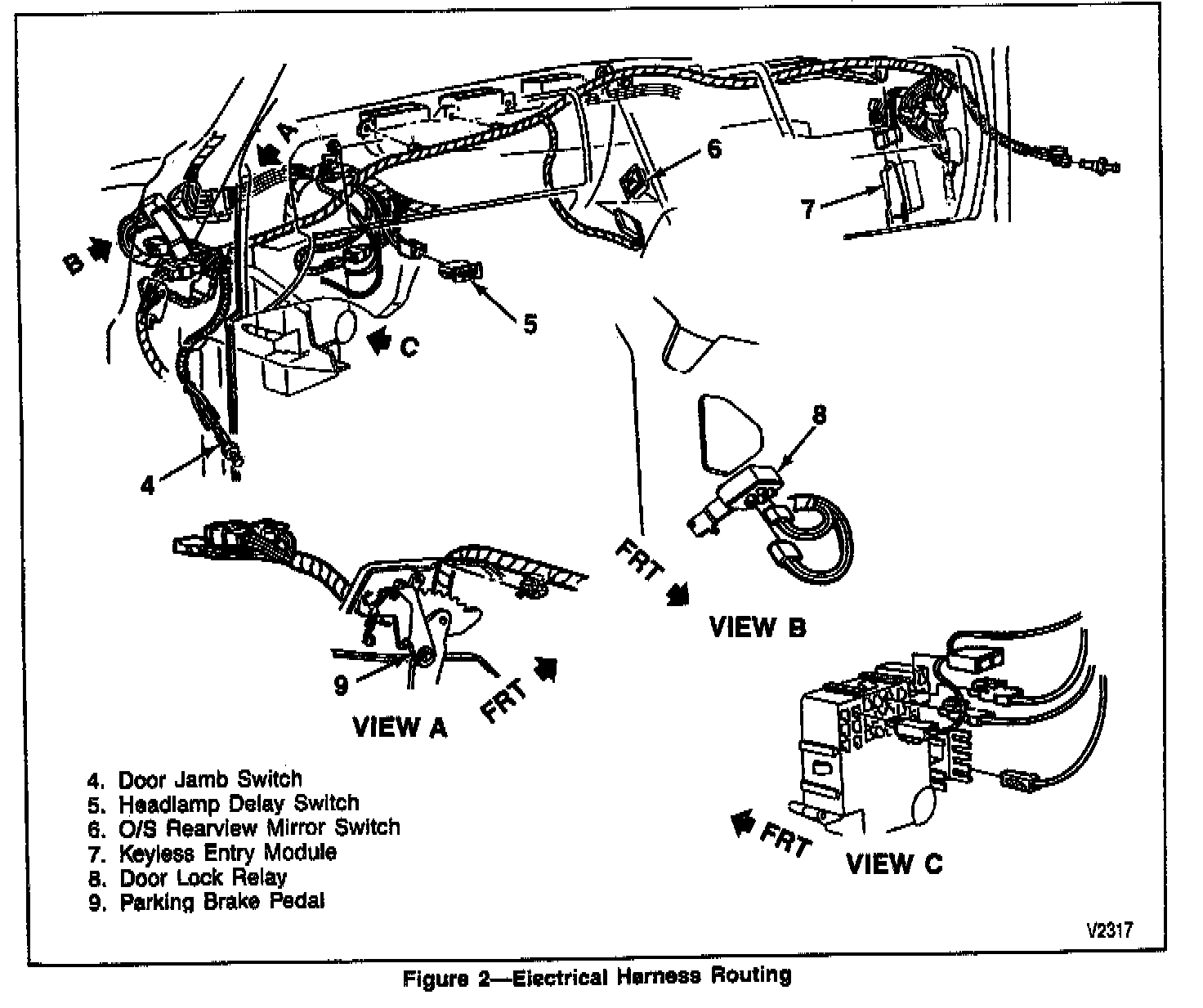

Power Door Locks, Windows And Mirrors With Keyless Entry:
