Home >> Chevy Truck >> 1994 >> G 20 Van V8-393 6.5L DSL >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Selector Control

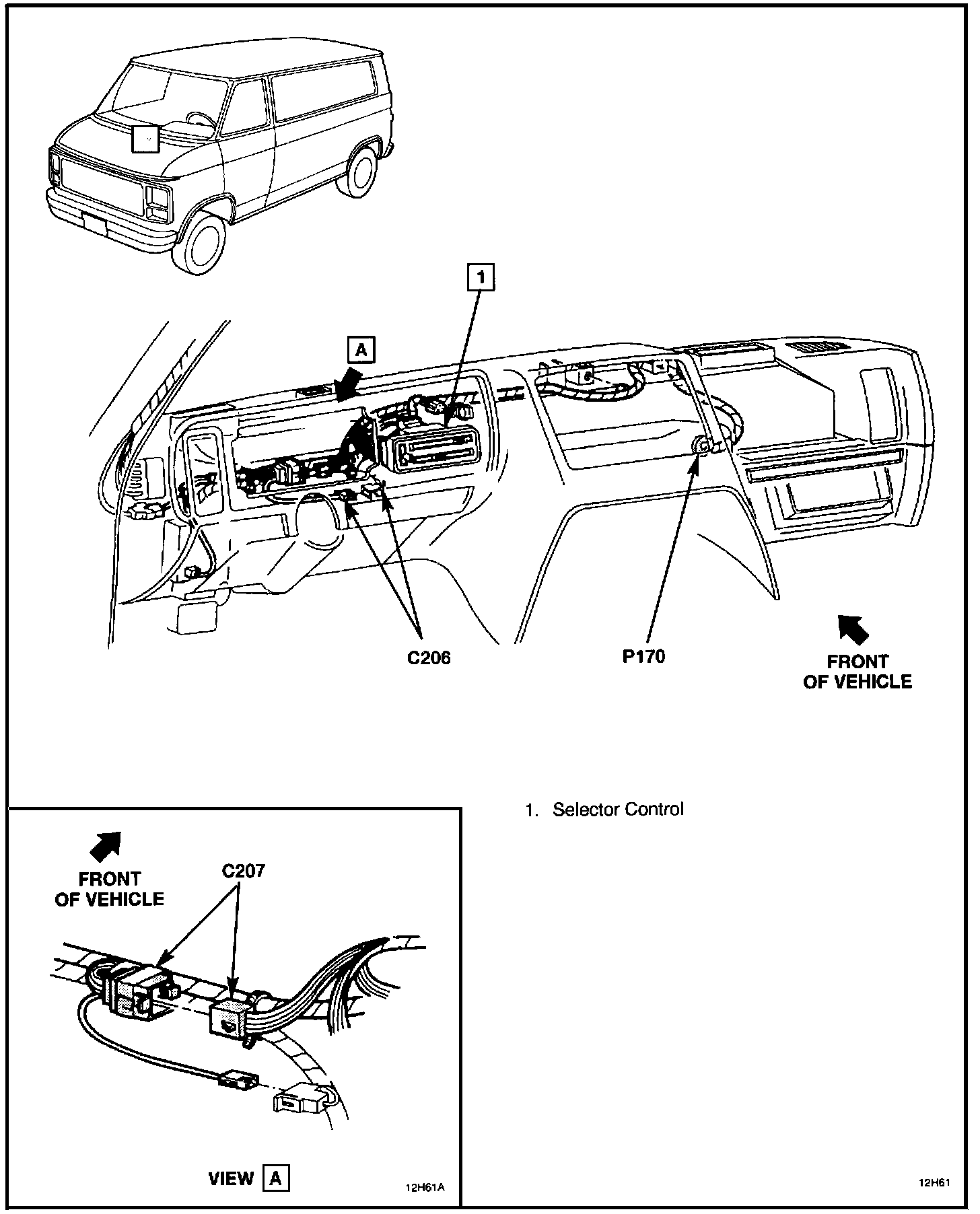

Selector Control

Heater-A/C And Auxiliary A/C Controls And Wiring:
