Home >> Chevy Truck >> 1994 >> G 20 Van V8-393 6.5L DSL >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> In-Line Diode

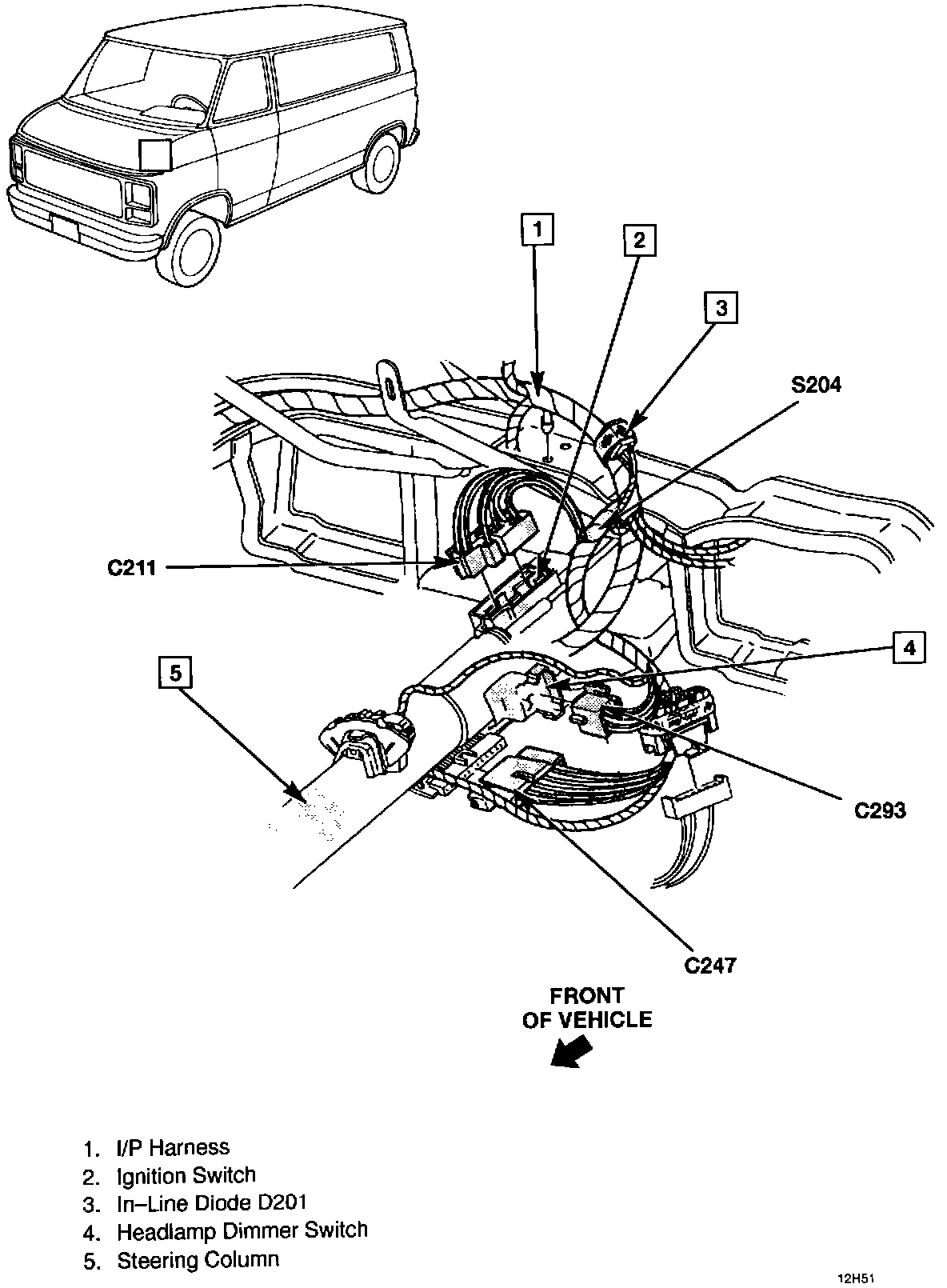

In-Line Diode

Steering Column Wiring And Switches:
