Electronic Spark Control Module: Locations

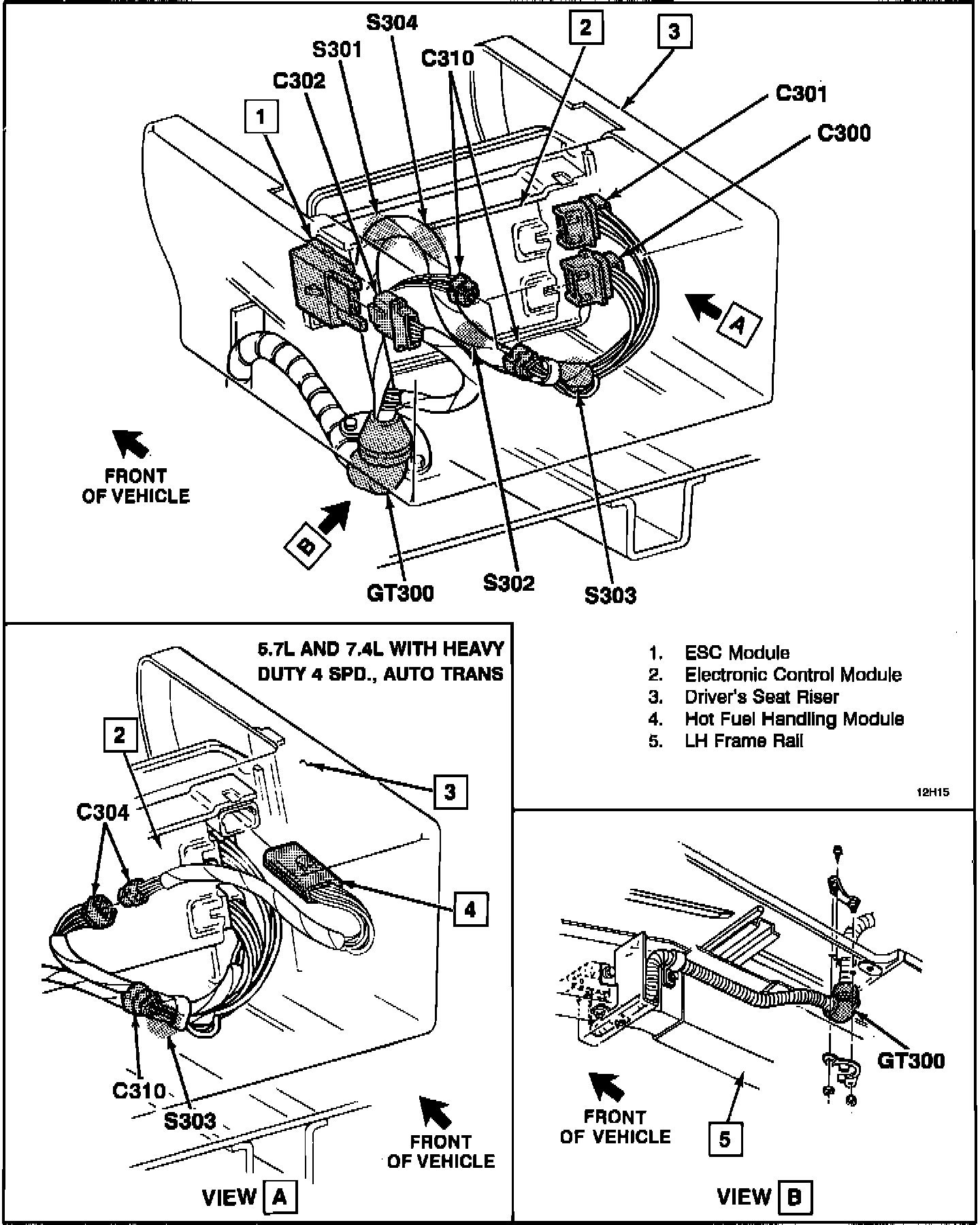

Electronic Control Module And Wiring:



ESC Module Location - C/K, R/V, & M:
