Home >> Chevy Truck >> 1992 >> G 30 Van V6-262 4.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Audio Alarm Module

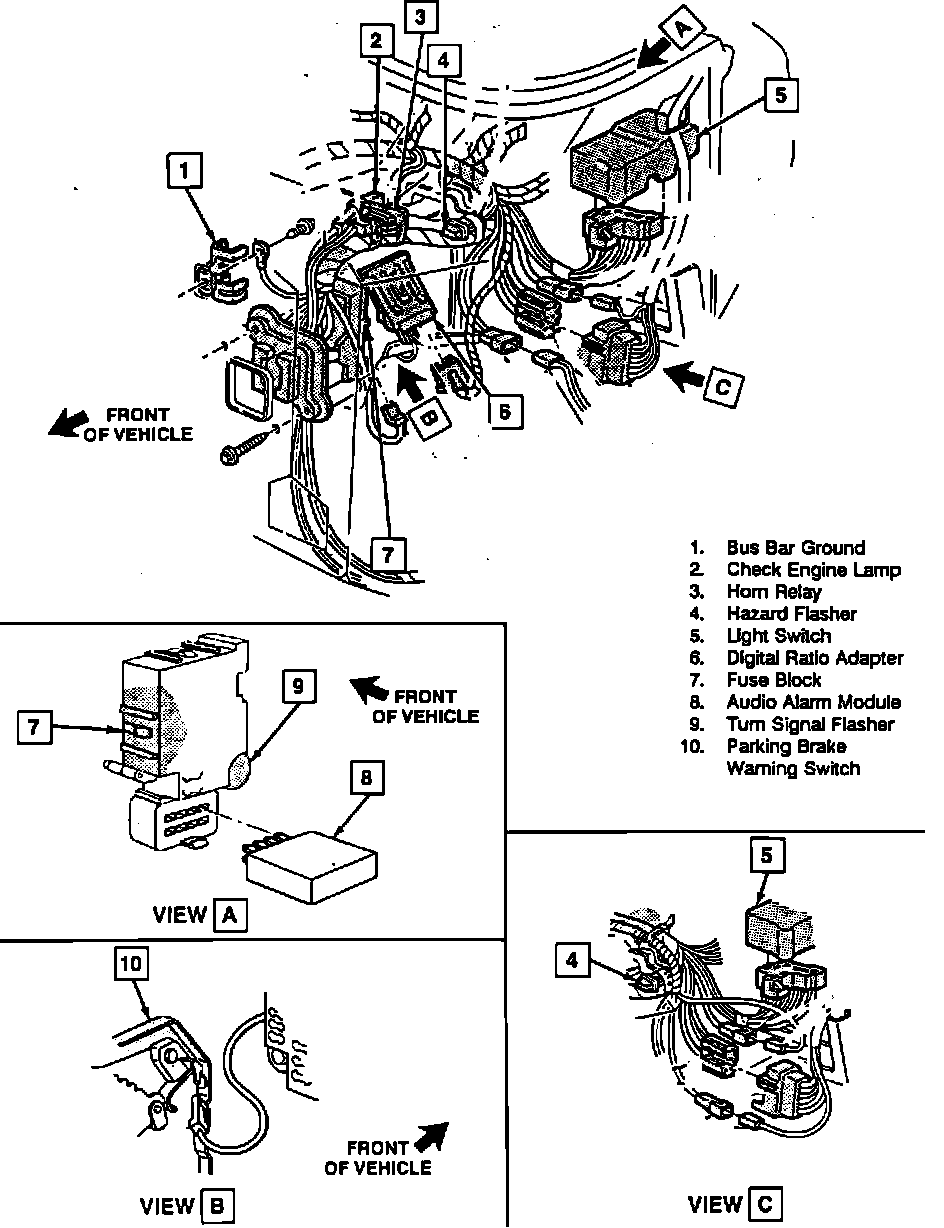

Audio Alarm Module

Steering Column Components:




Behind LH Side Of I/P, At Convenience Center

Applicable to: G Series
