Keyless Entry Receiver: Locations

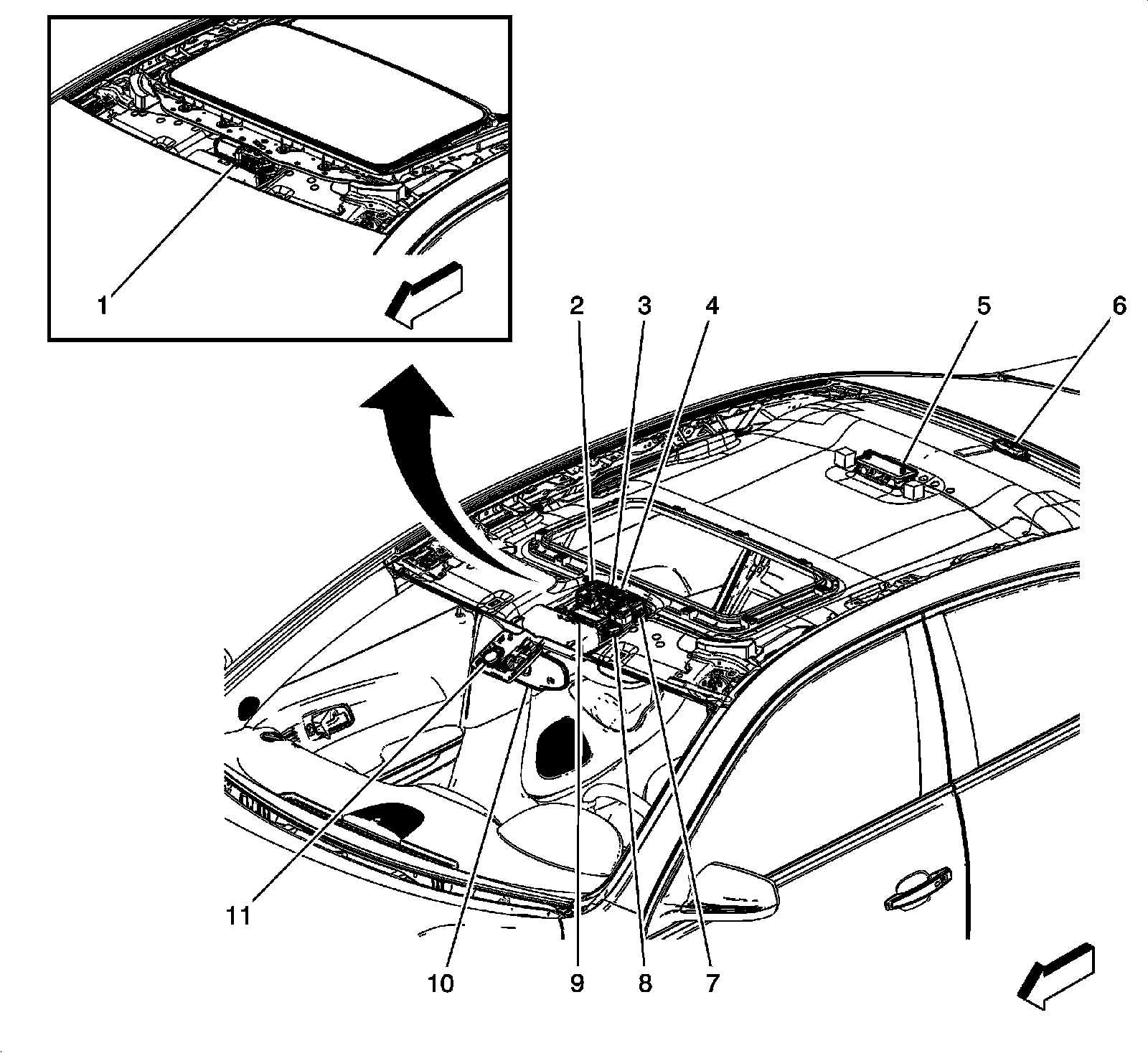

Passenger Compartment/Roof Component Views

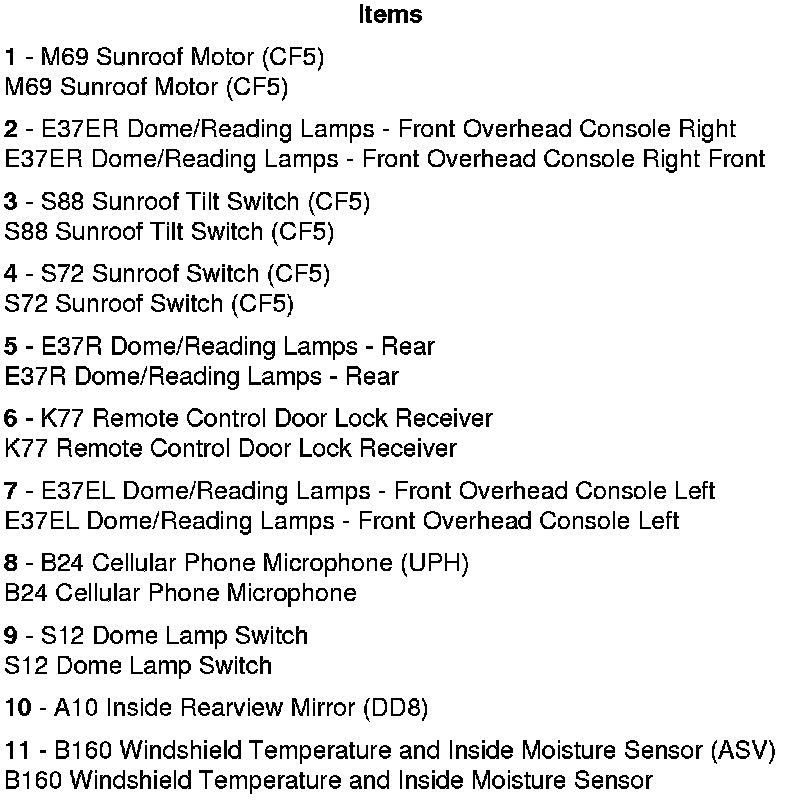

Headliner Components (CF5)
