Home >> Chevrolet >> 2013 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body Control Systems

Body Control Systems

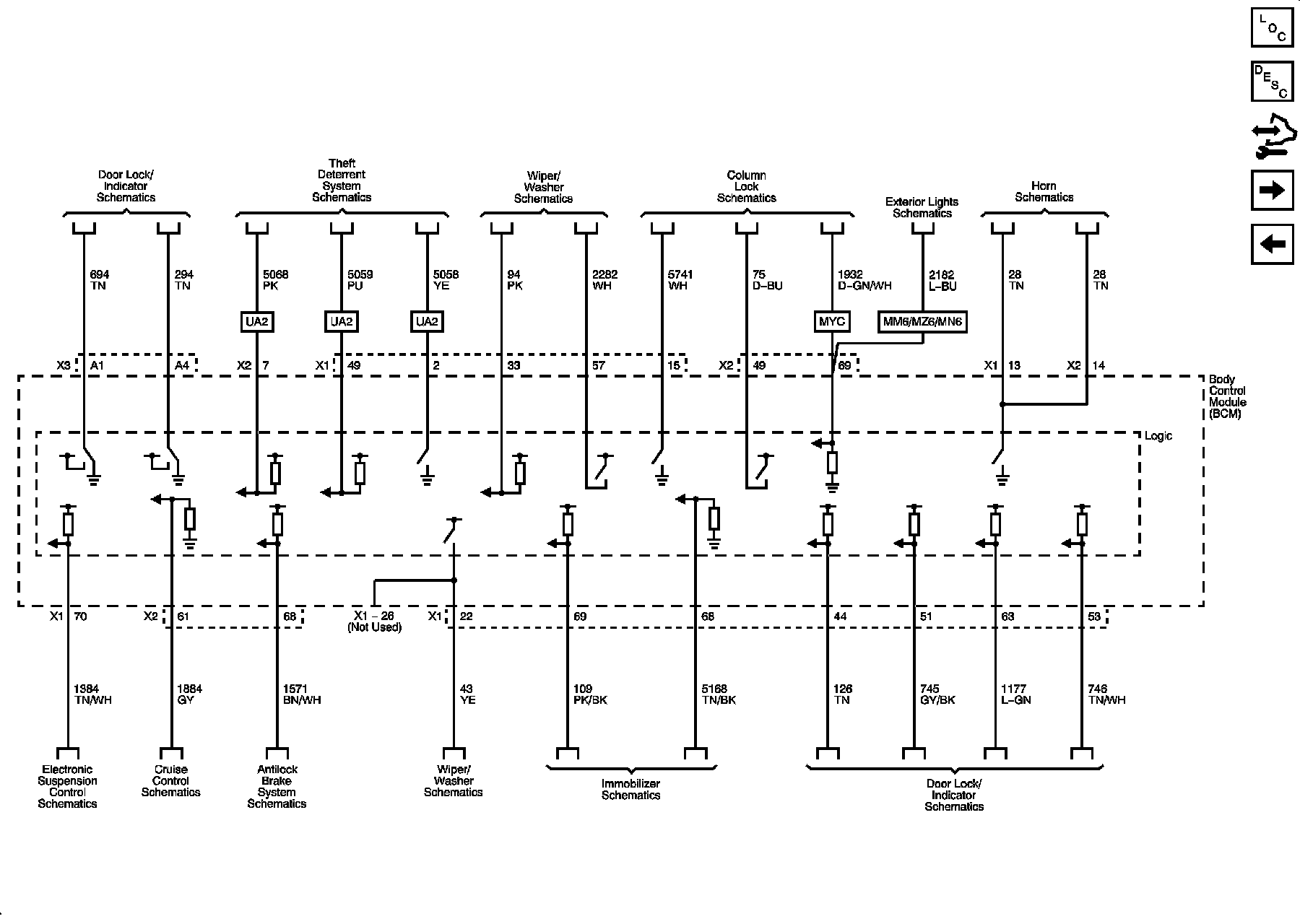

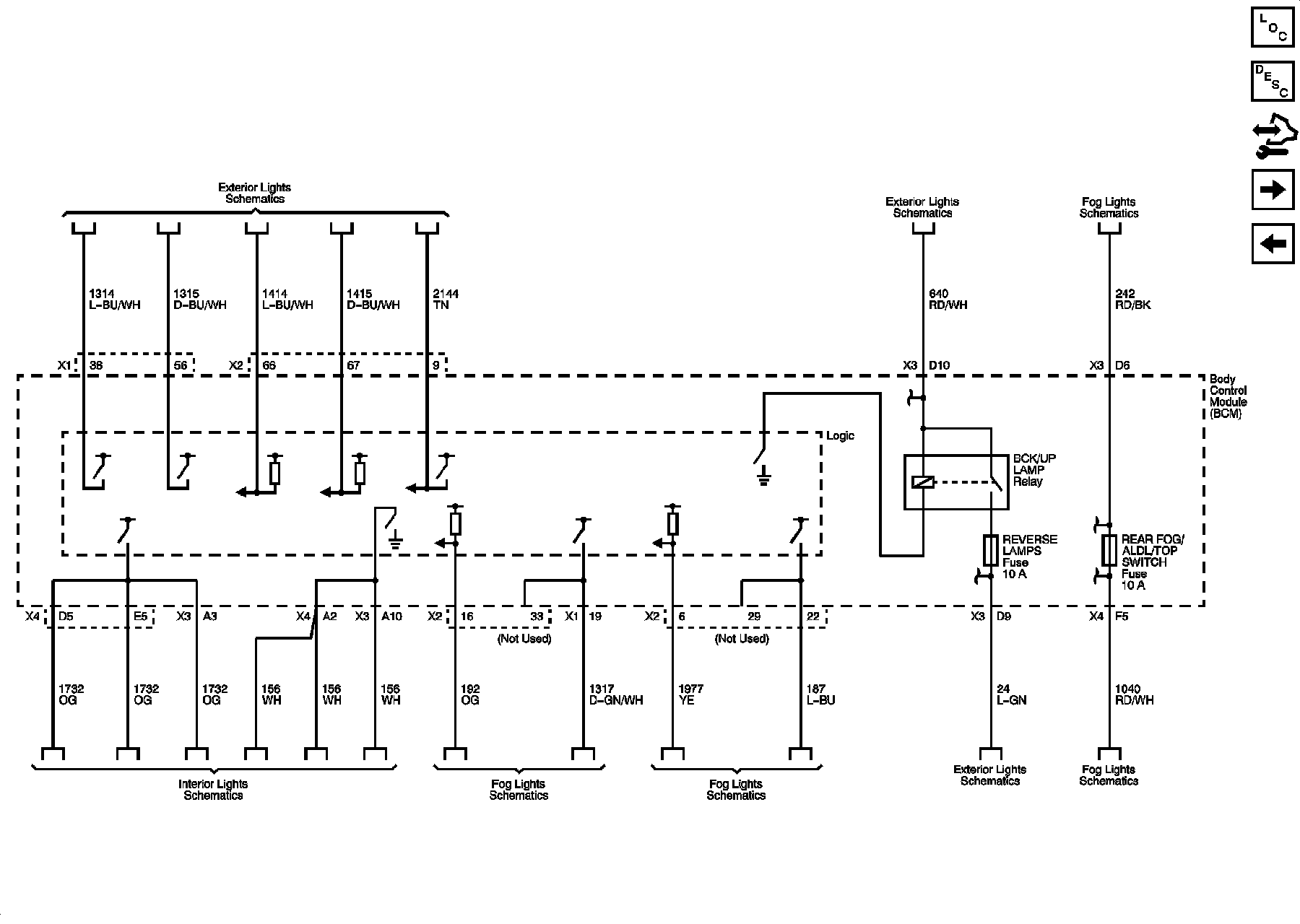

Body Control System Schematics

Power, Ground, and Serial Data






Lighting References (1 of 2)






Lighting References (2 of 2)






Subsystem References (1 of 2)






Subsystem References (2 of 2)
