Home >> Chevrolet >> 2012 >> Sonic L4-1.4L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Rear End Lower >> 5HB

5HB

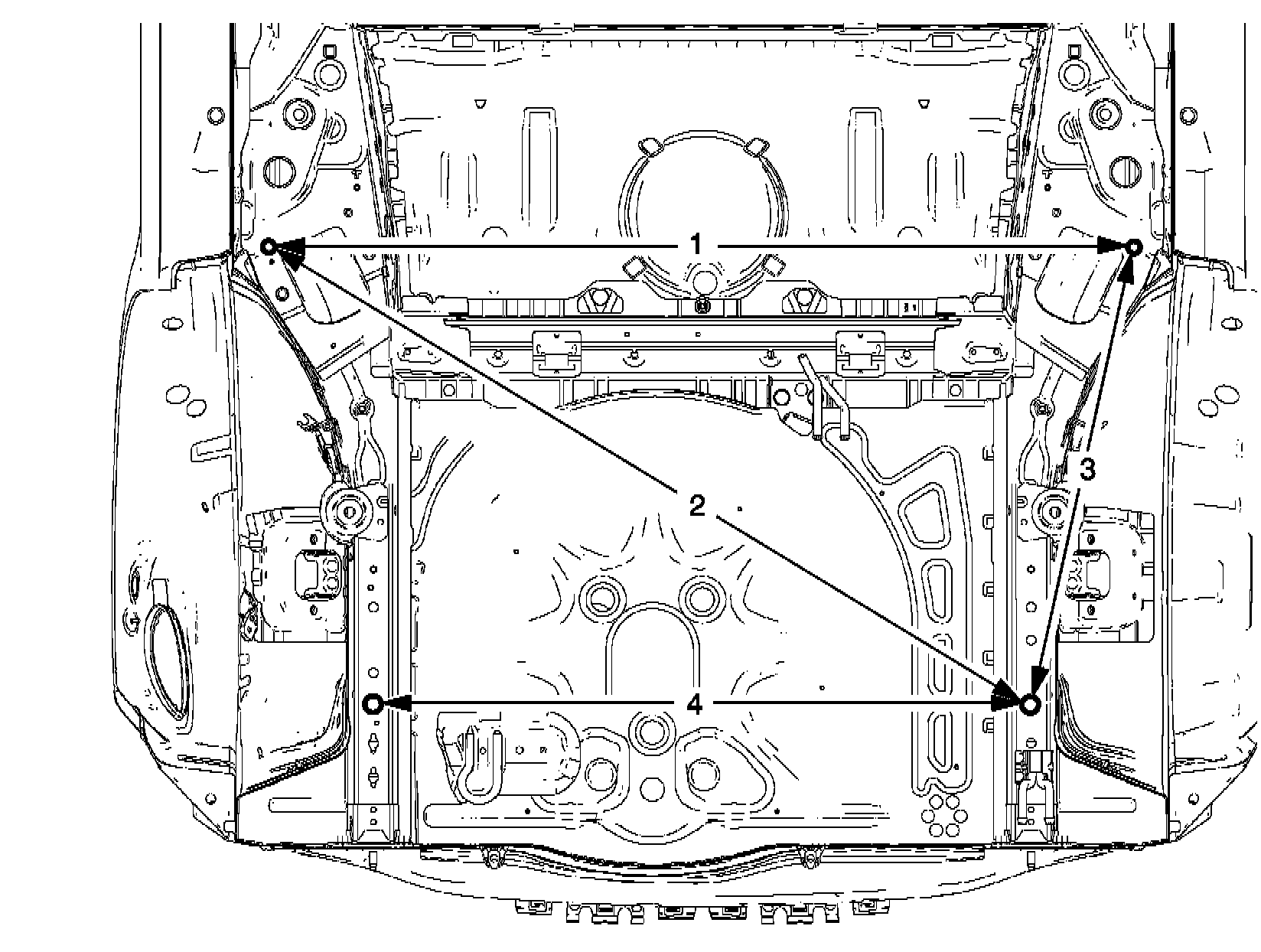

Rear End Lower

��E:





(1)1233 mm

(2)1259 mm

(3)627 mm

(4)966 mm

###
