Windows




Moveable Window Schematics

Driver Door (AXG)





Driver Door (AEC)





Passenger Door

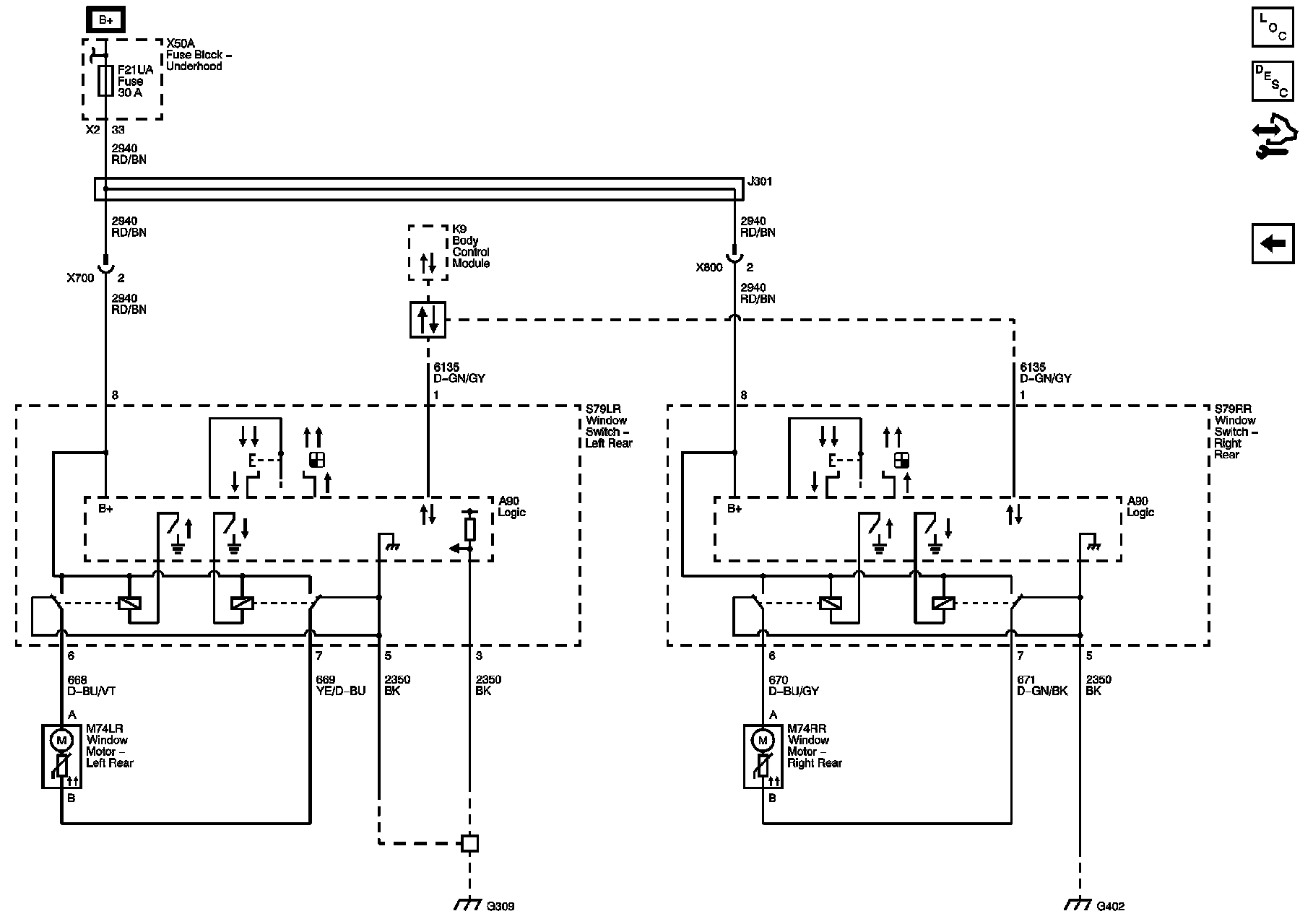

Rear Doors
