Steering Column Lock Control Module (ULS)




Component Connector End Views

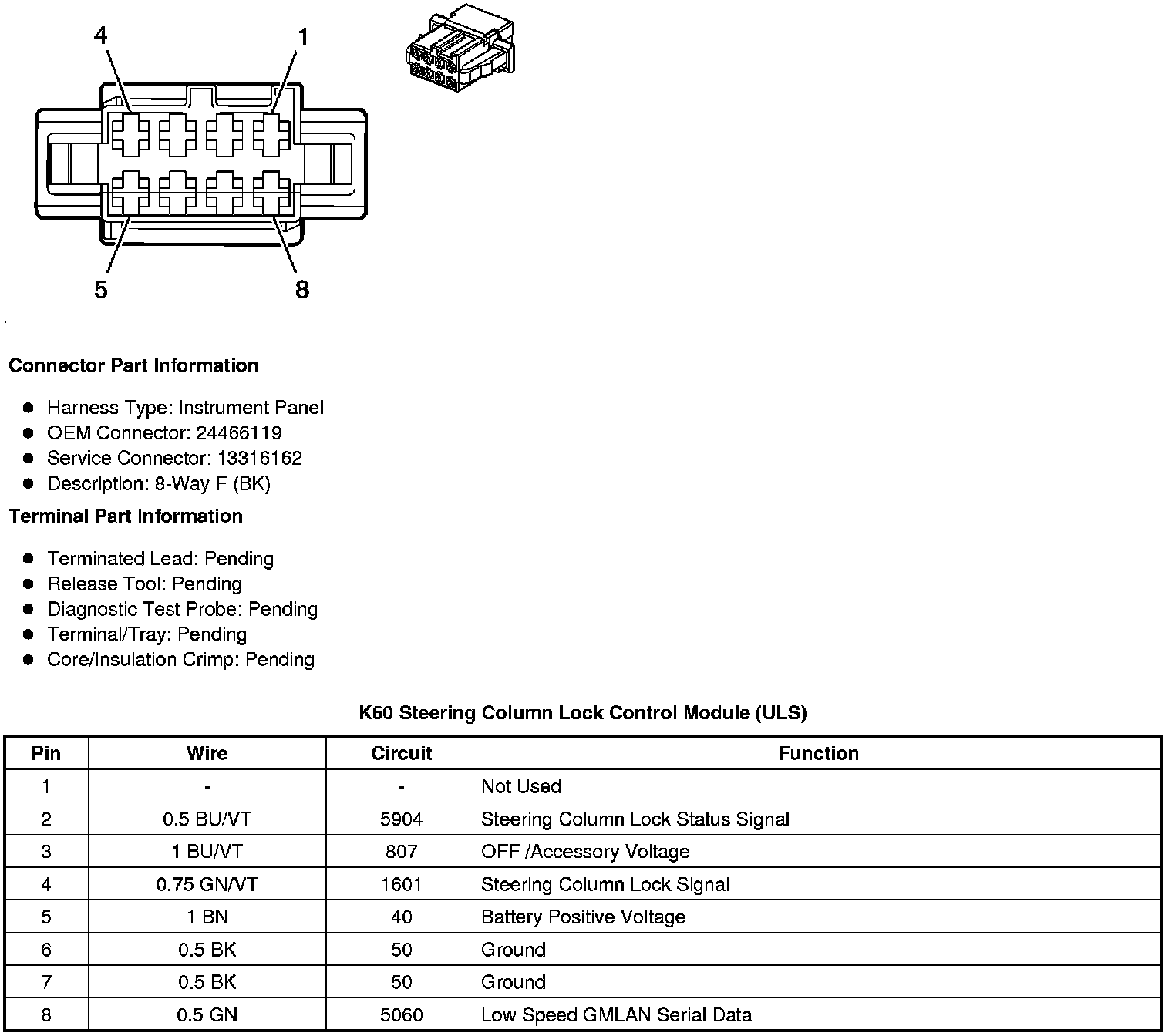

K60 Steering Column Lock Control Module (ULS)
