Home >> Chevrolet >> 2012 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications >> Electrical Specifications >> Sensor Resistance Table (Inside and Ambient Air Temp Sensor)

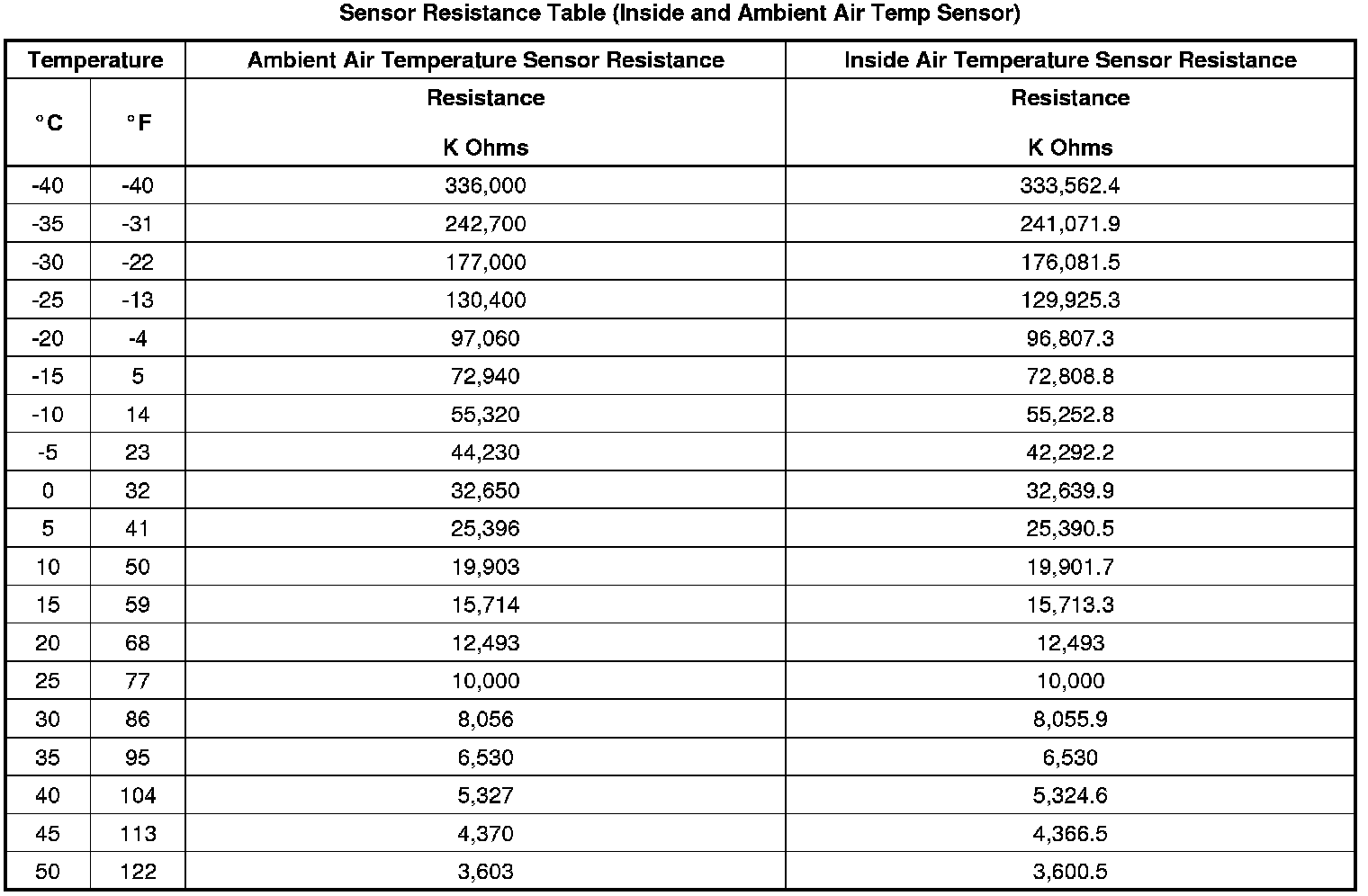

Sensor Resistance Table (Inside and Ambient Air Temp Sensor)




Sensor Resistance Table (Inside and Ambient Air Temp Sensor)
