Home >> Chevrolet >> 2012 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) X3

Engine Control Module (ECM) X3

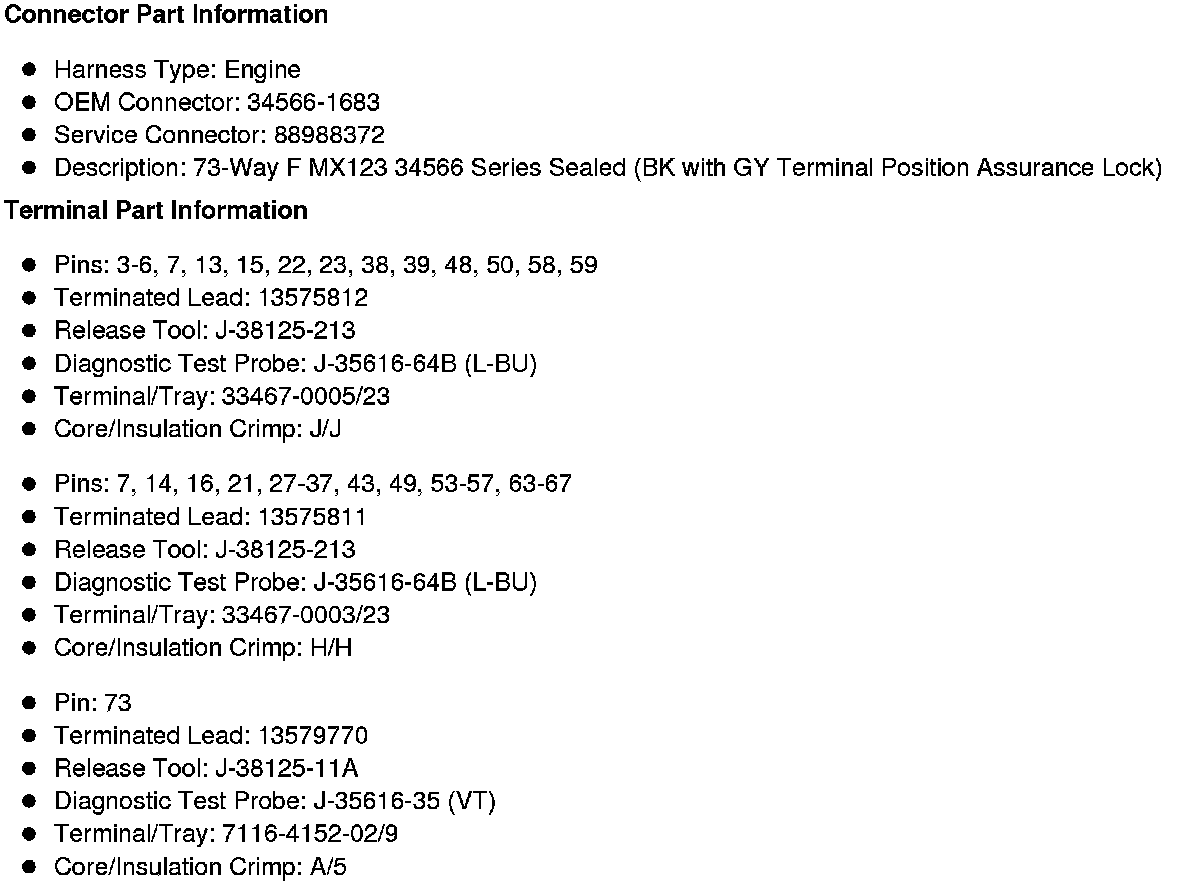

Component Connector End Views

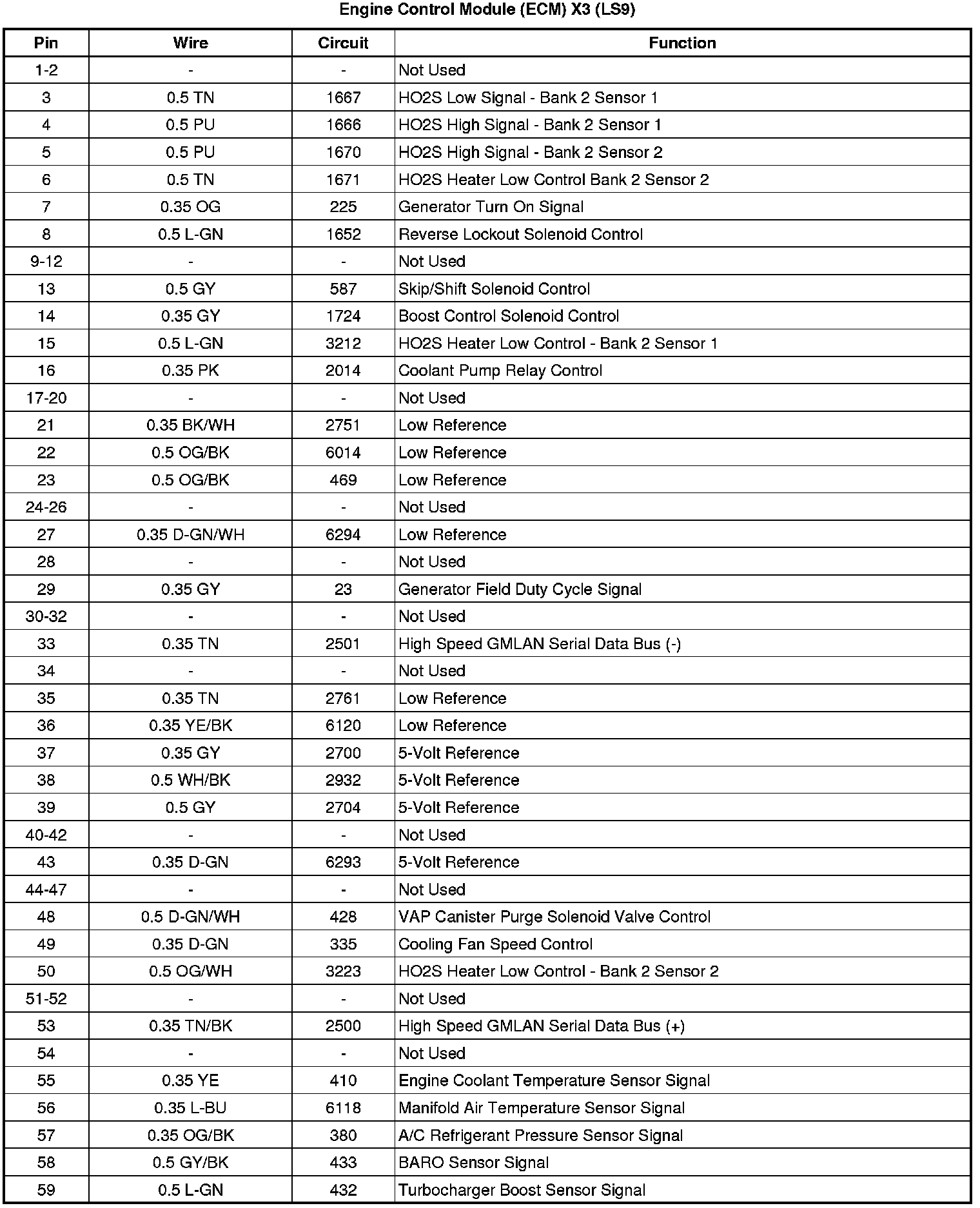

Engine Control Module (ECM) X3 (LS9)
