Air Flow Meter/Sensor: Locations




Front of Vehicle/Engine Compartment Component Views

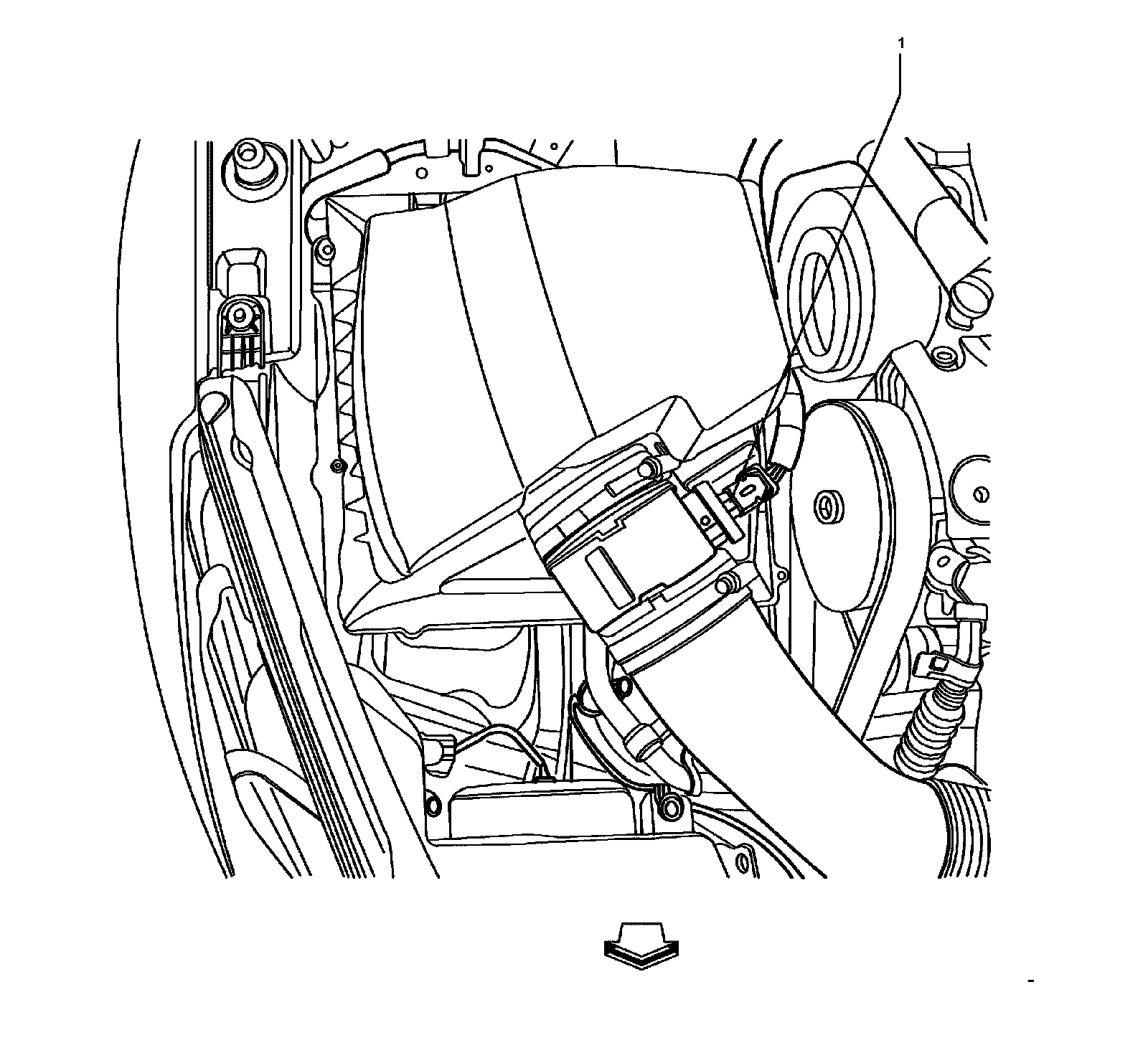

Right Front of the Vehicle Components 1 of 2




1 - B75B Mass Air Flow/Intake Air Temperature Sensor
