Refrigerant Pressure Sensor / Switch: Locations

Powertrain Component Views

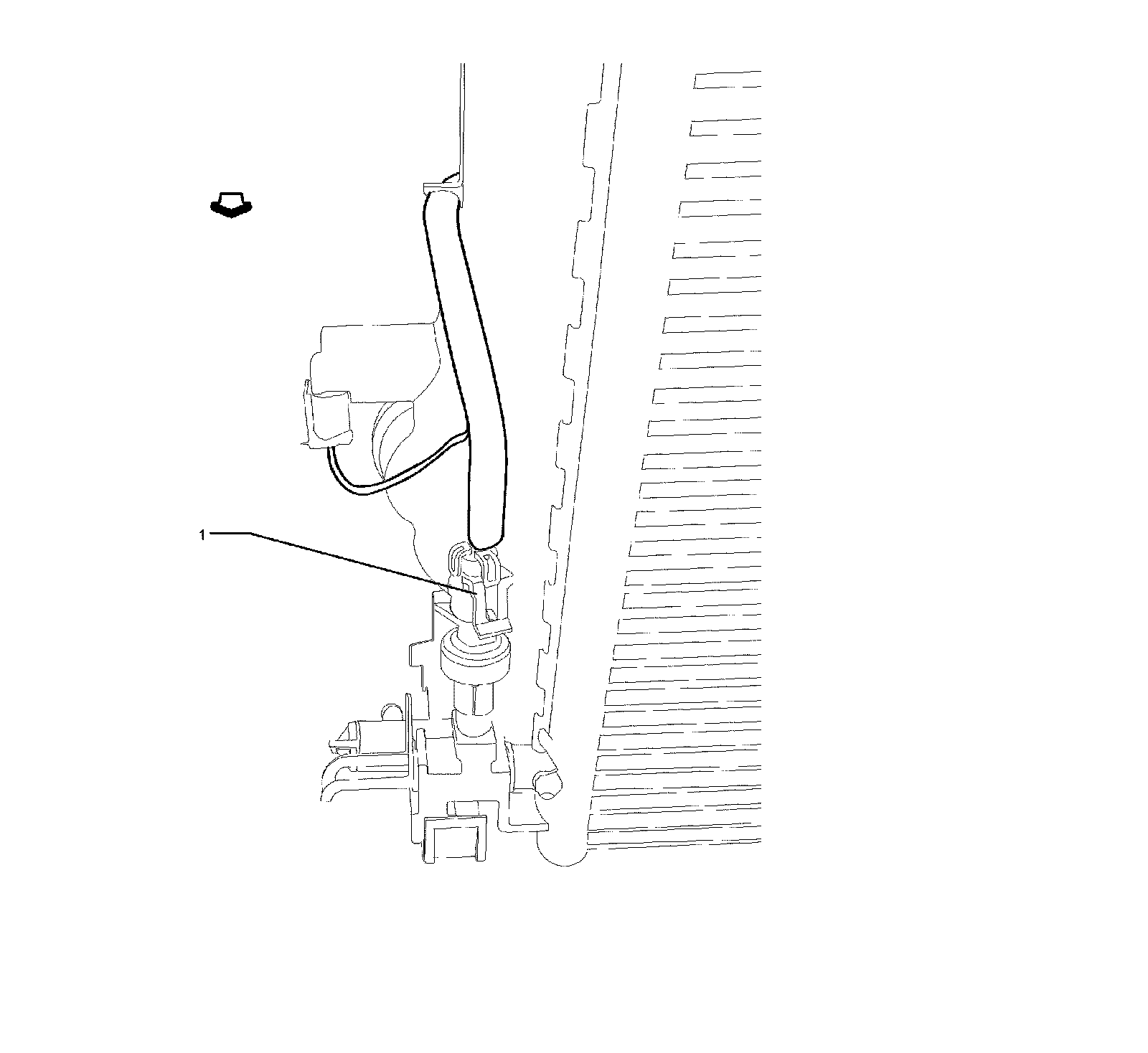

Lower Right Side of the Engine Components

1 - B1 A/C Refrigerant Pressure Sensor
