Shift Interlock Solenoid
Shift Interlock Solenoid

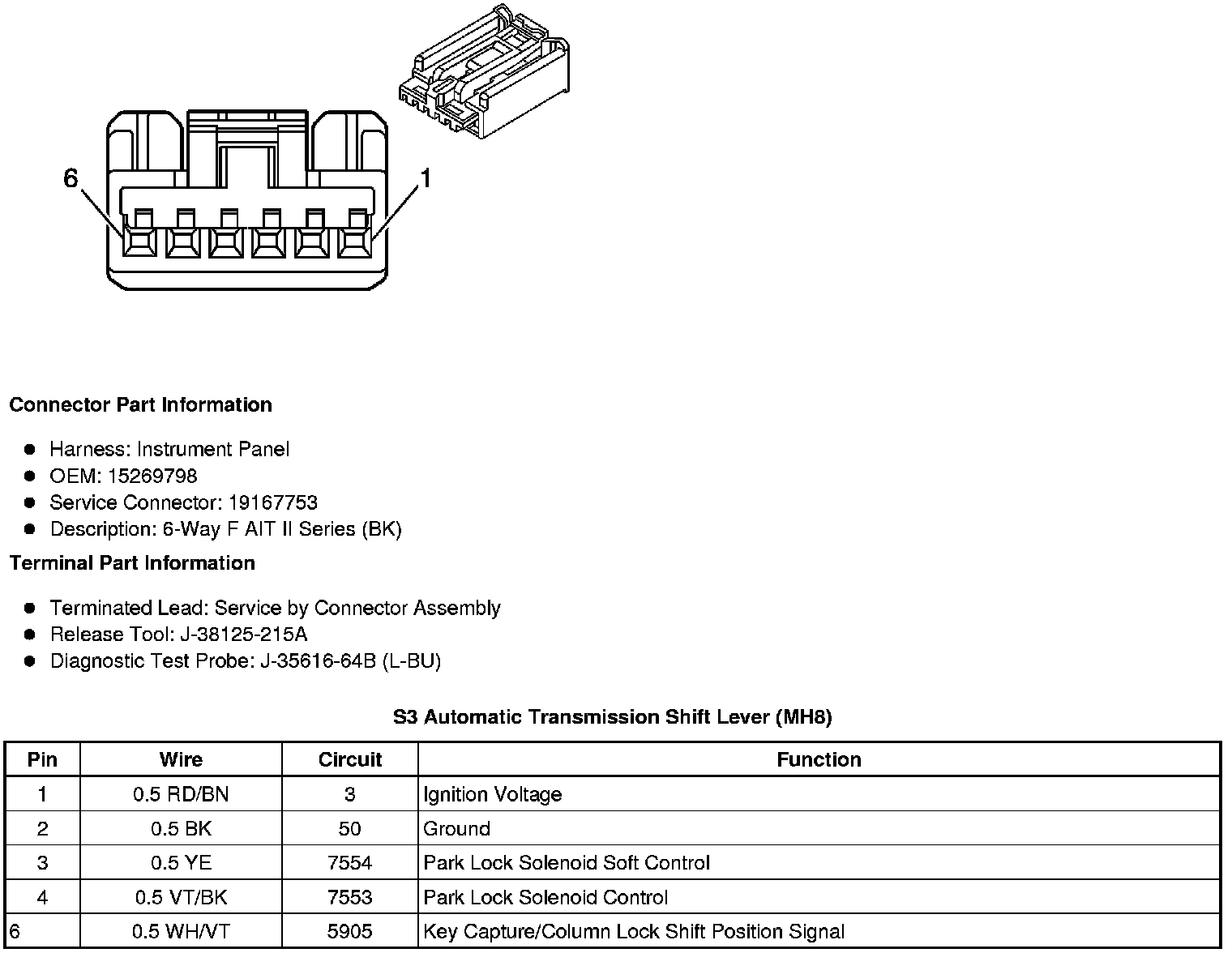

Component Connector End Views
S3 Automatic Transmission Shift Lever (MH8)
