Home >> Chevrolet >> 2011 >> Cruze L4-1.4L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch




Component Connector End Views

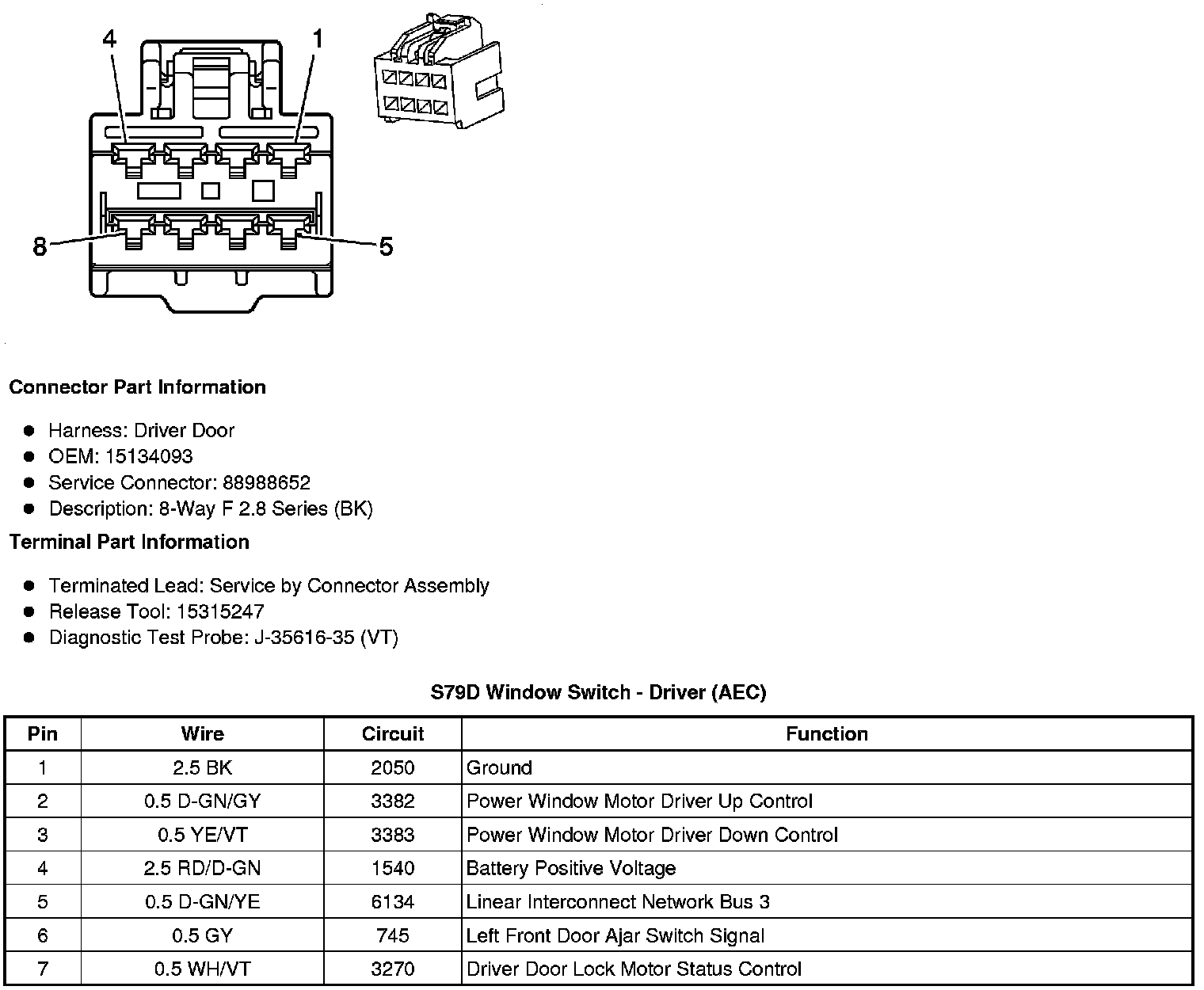

S79D Window Switch - Driver (AEC)

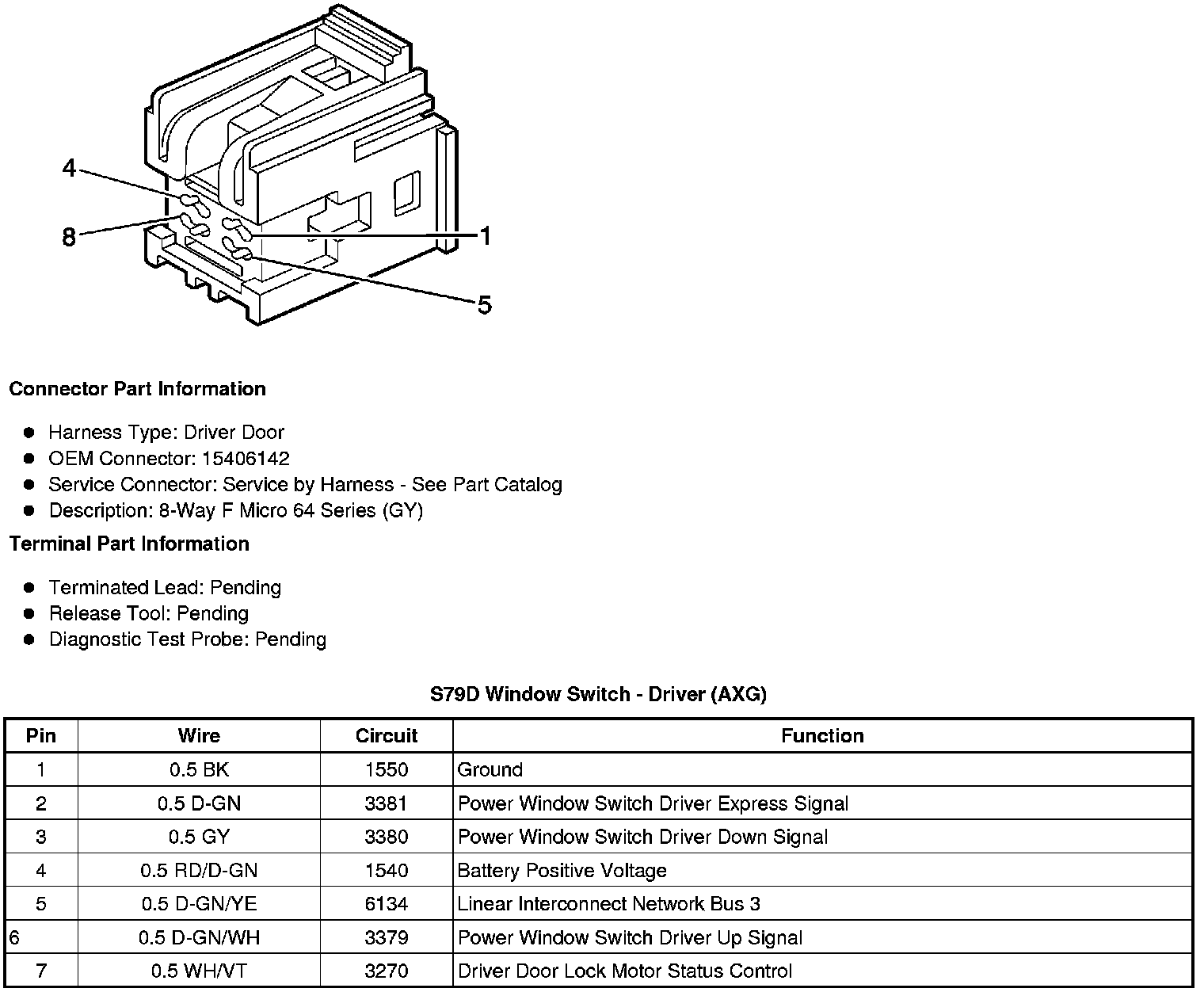

S79D Window Switch - Driver (AXG)

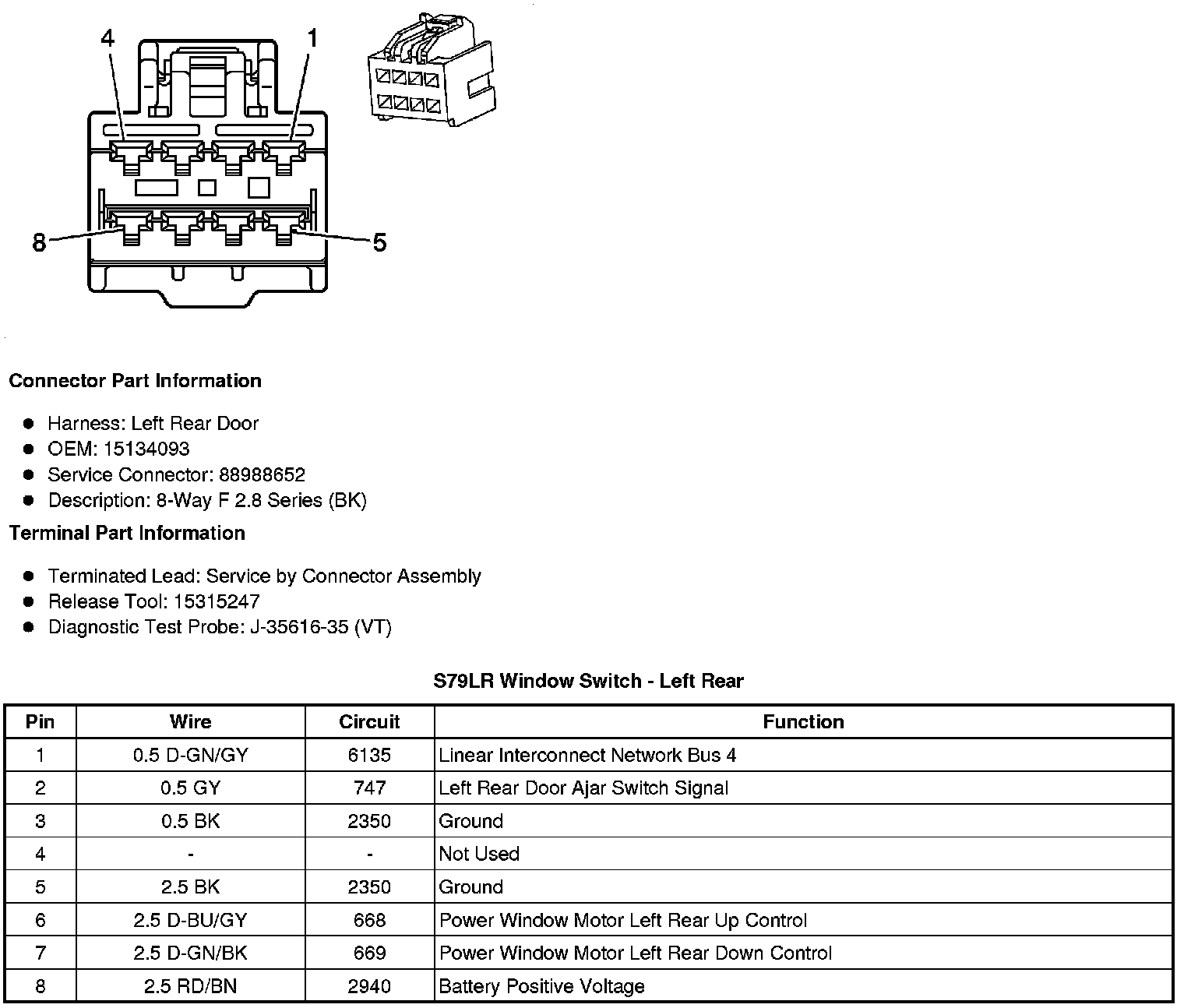

S79LR Window Switch - Left Rear

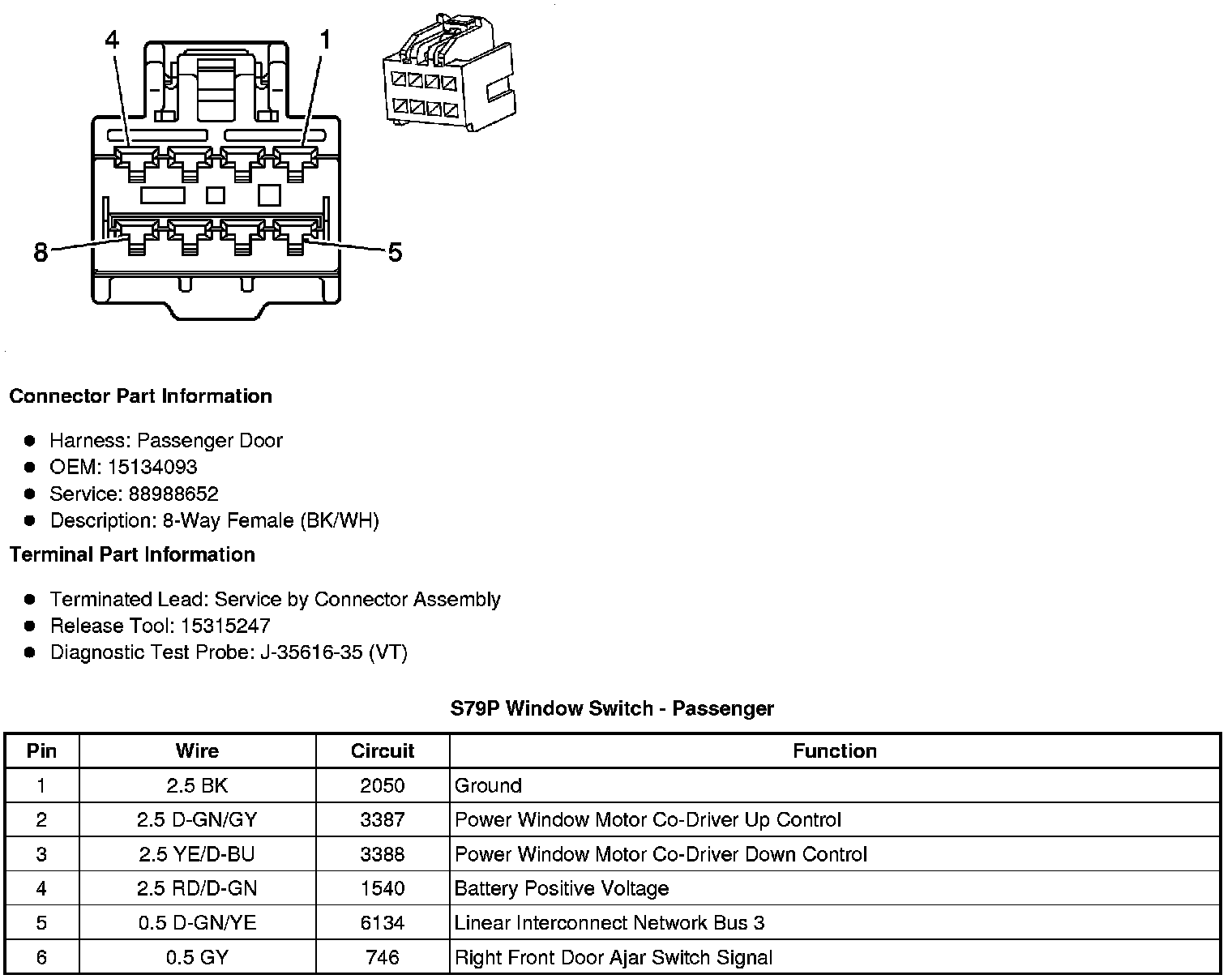

S79P Window Switch - Passenger

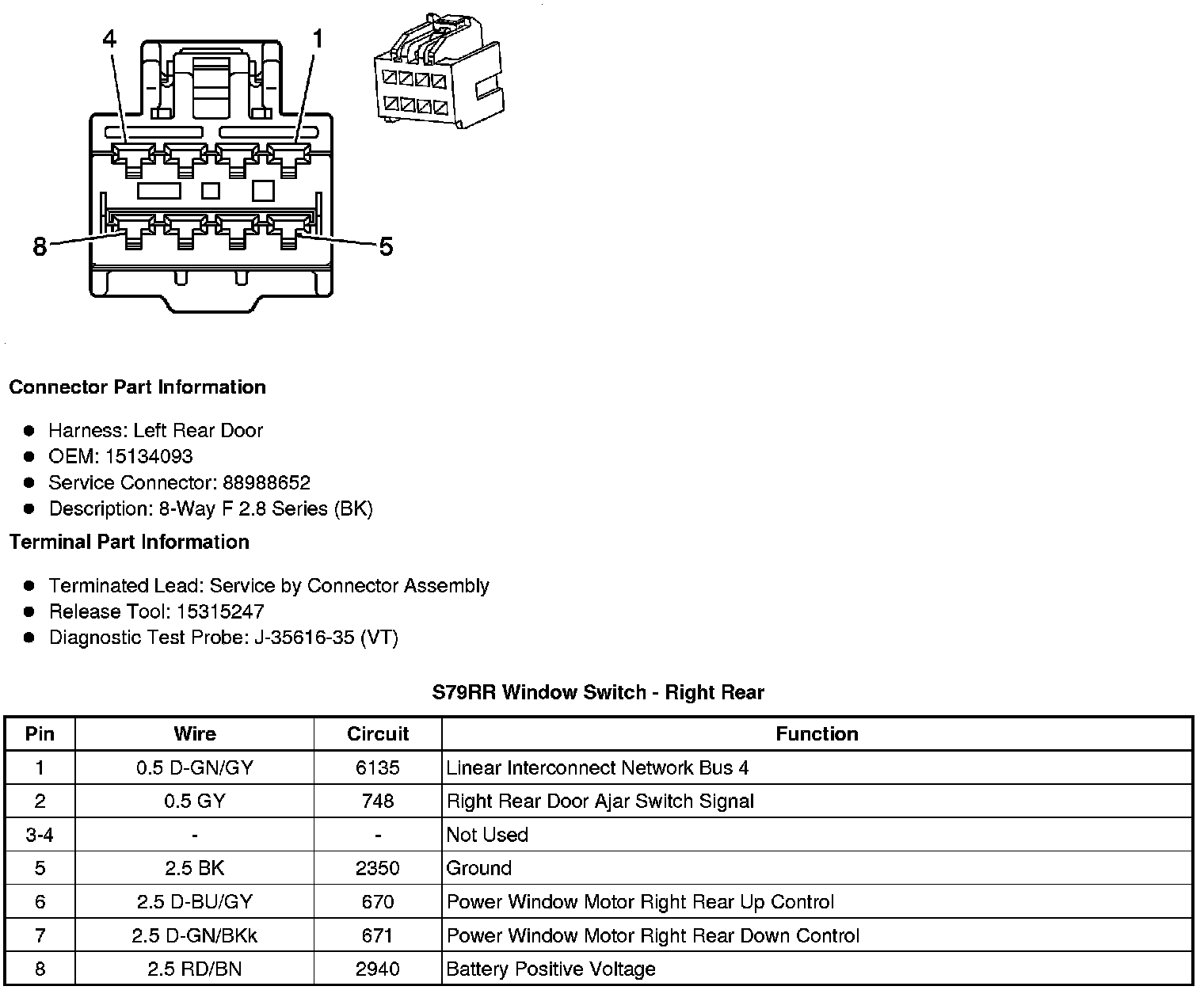

S79RR Window Switch - Right Rear
