Home >> Chevrolet >> 2011 >> Cruze L4-1.4L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram




Component Connector End Views

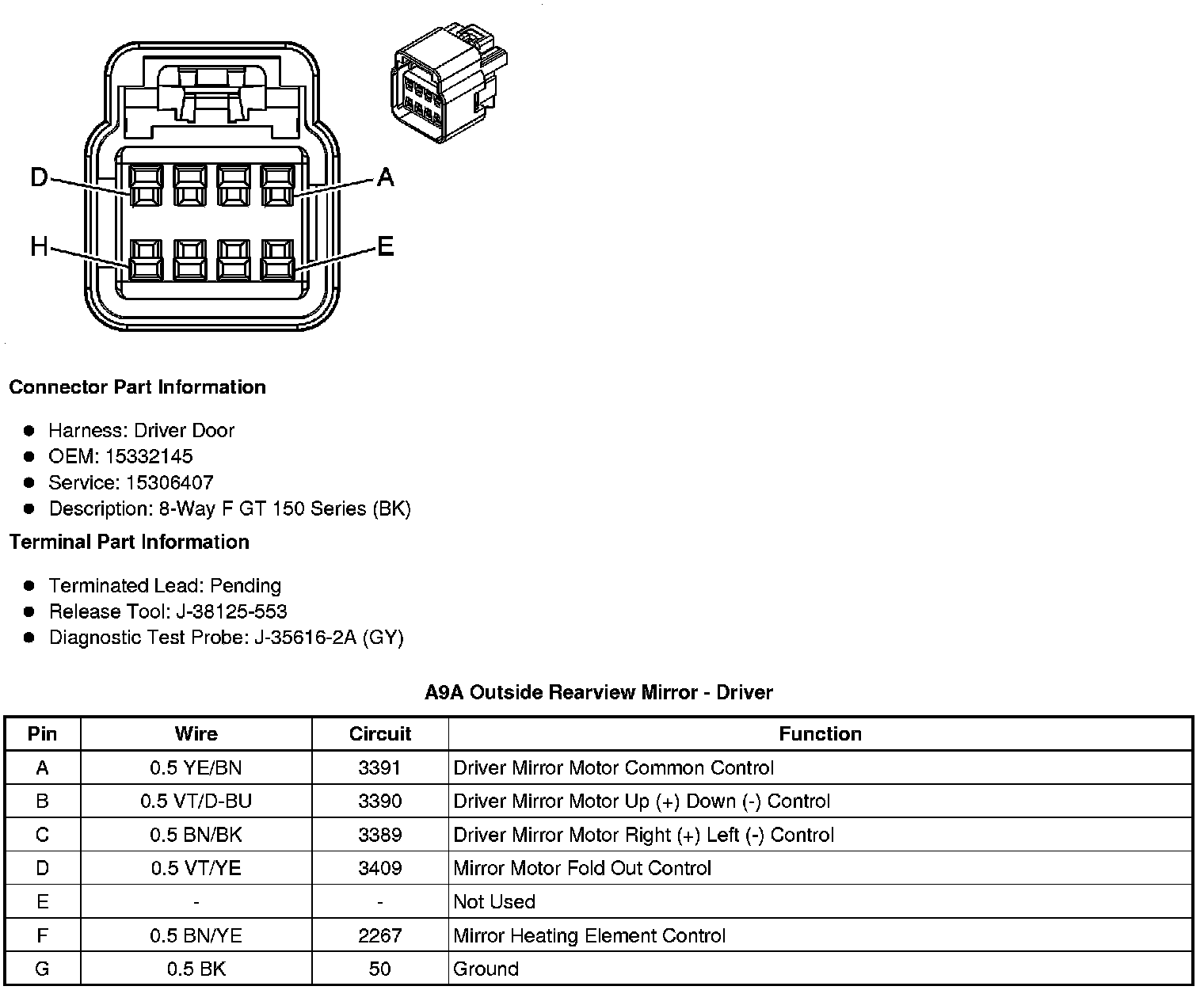

A9A Outside Rearview Mirror - Driver

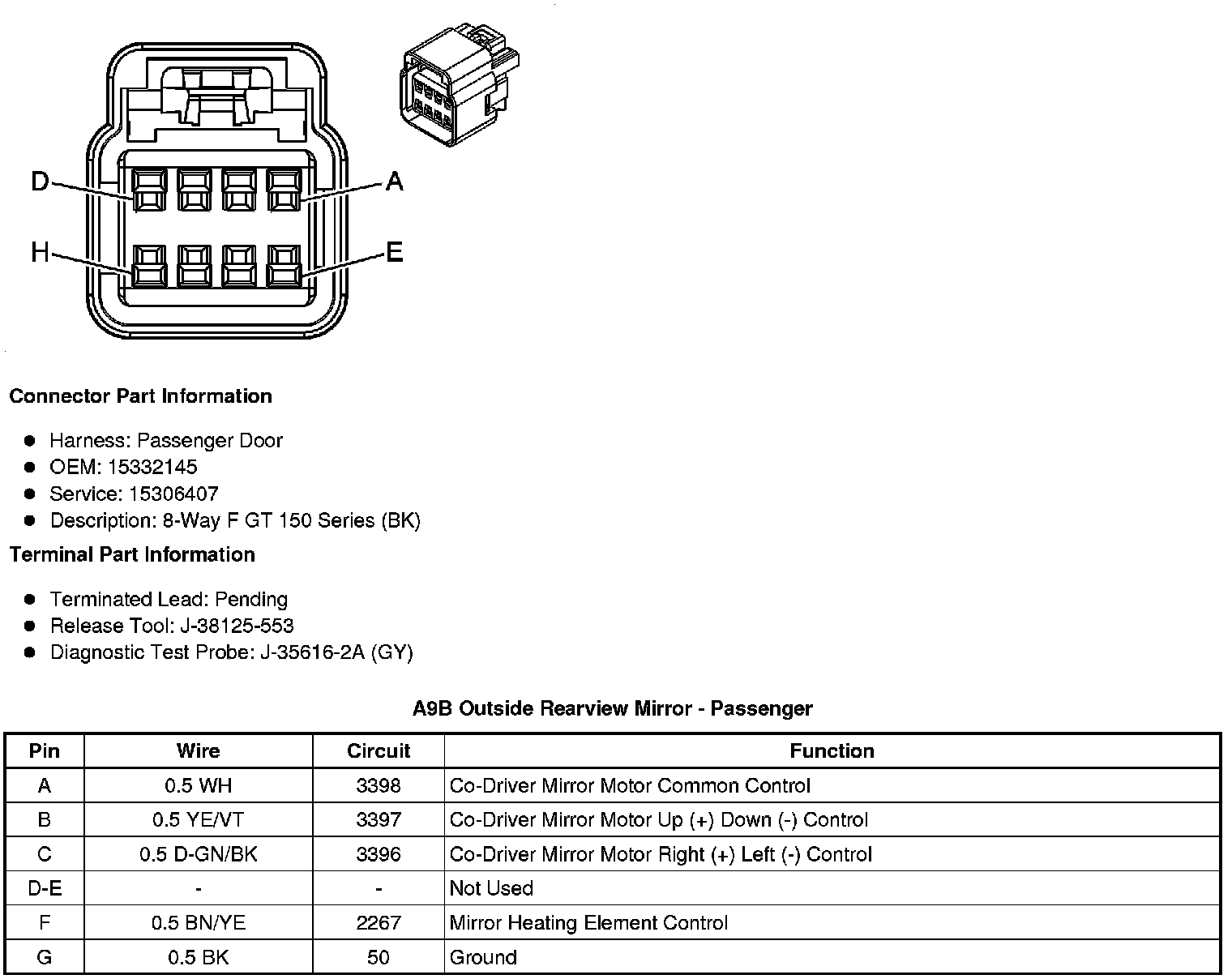

A9B Outside Rearview Mirror - Passenger






A10 Inside Rearview Mirror
