Knock Sensor: Diagrams




Component Connector End Views

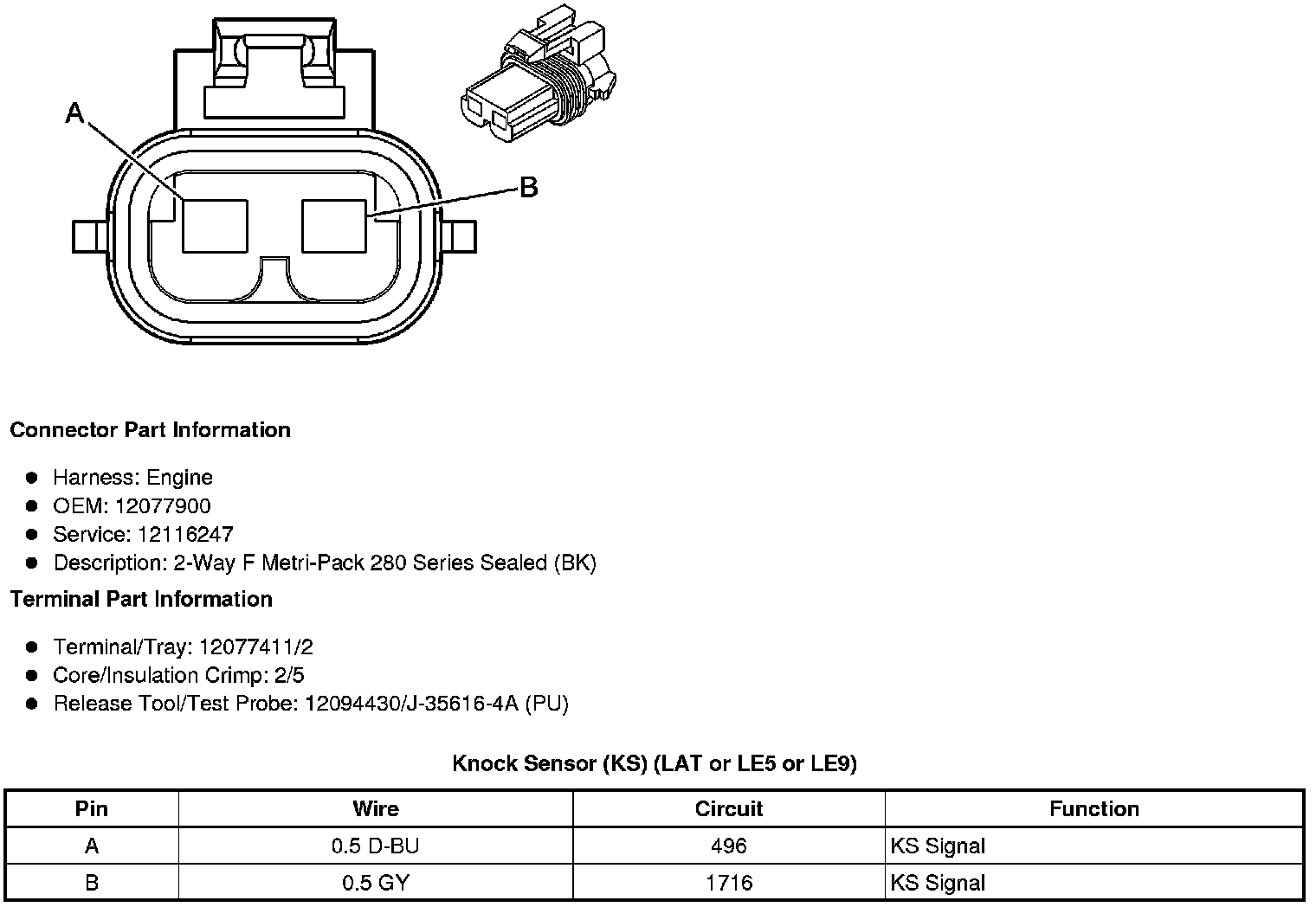

Knock Sensor (KS) (LAT or LE5 or LE9)

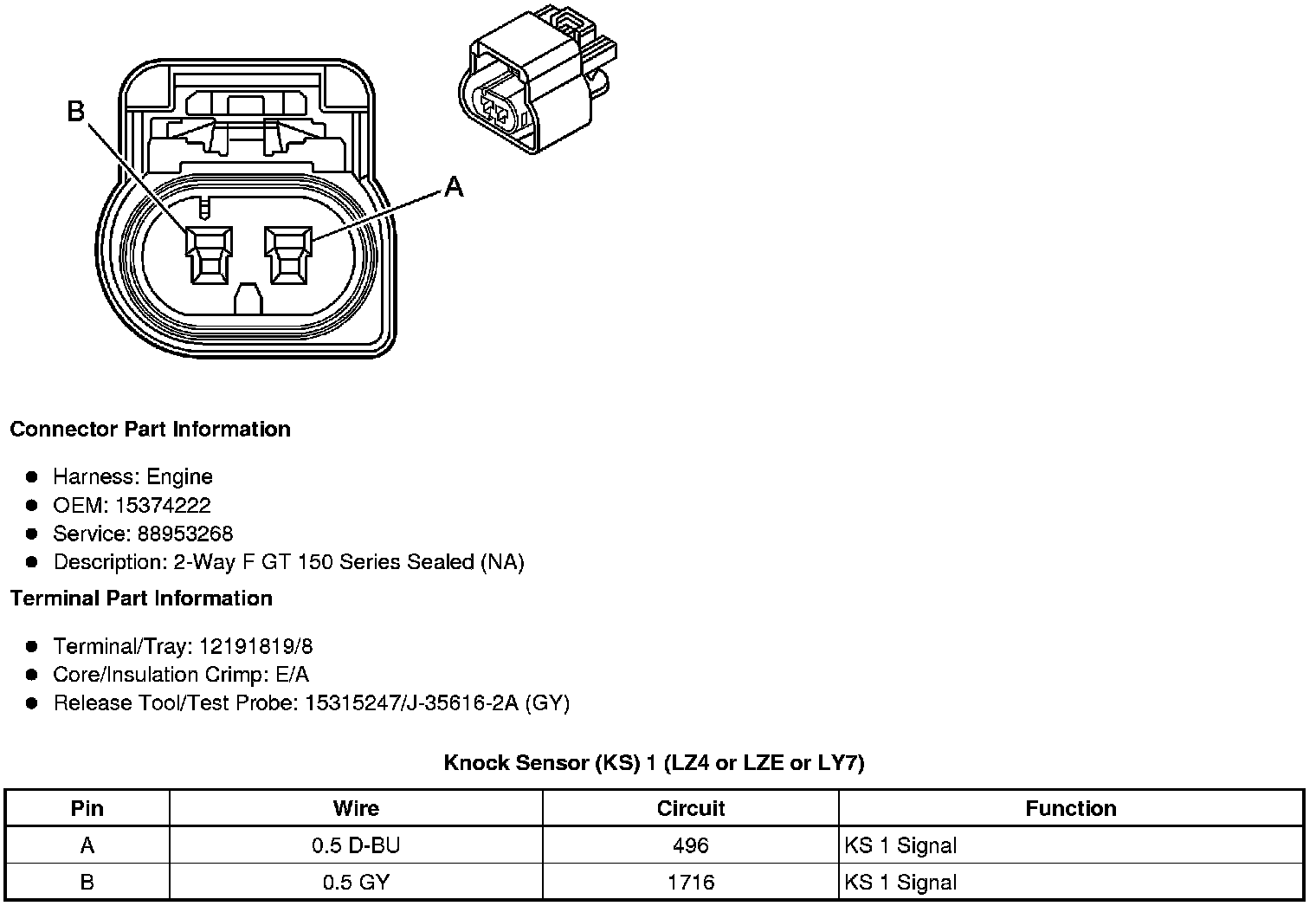

Knock Sensor (KS) 1 (LZ4 or LZE or LY7)

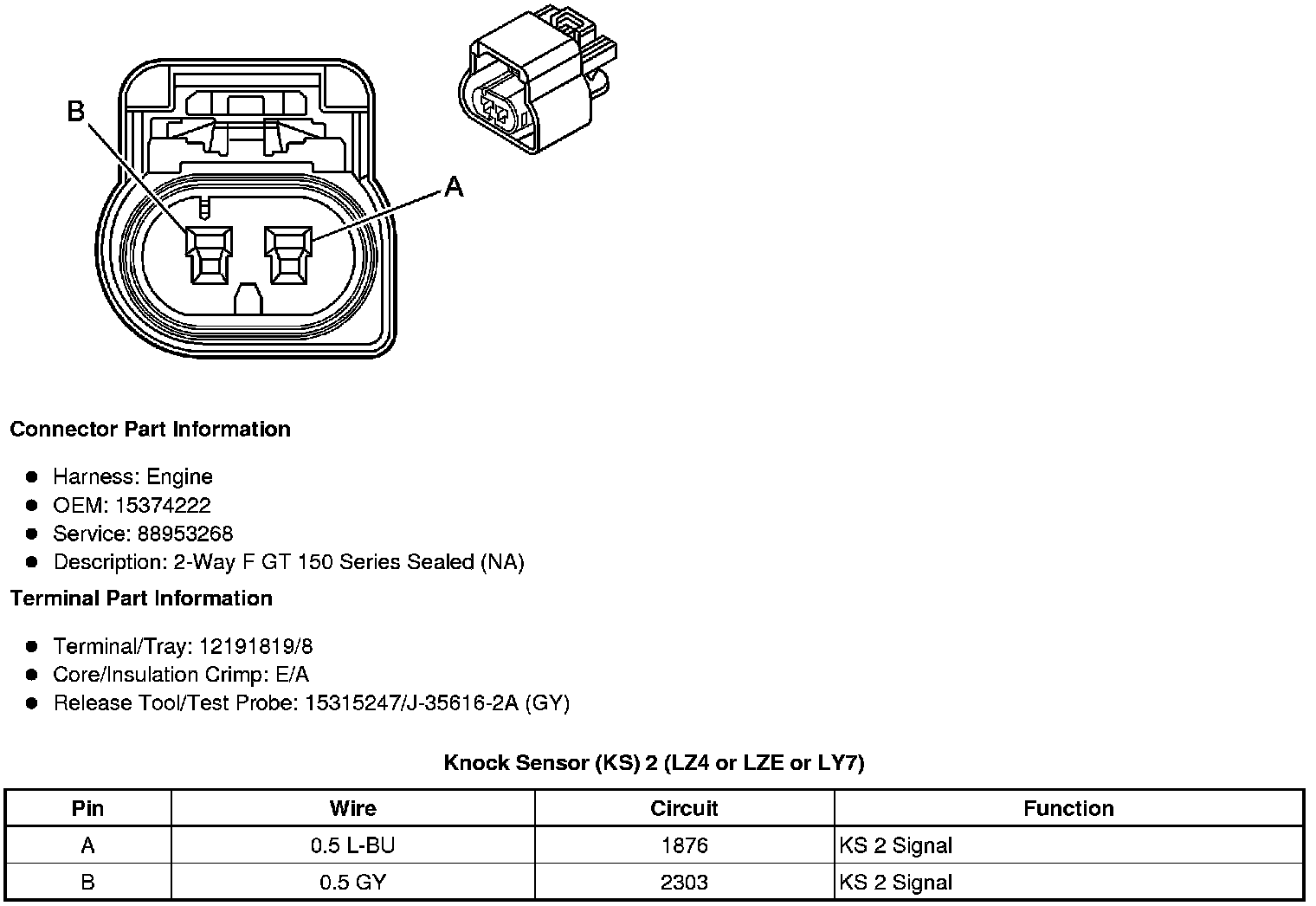

Knock Sensor (KS) 2 (LZ4 or LZE or LY7)
