Corvette V8-6.2L SC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Fastener Tightening Specifications
Fastener Tightening Specifications

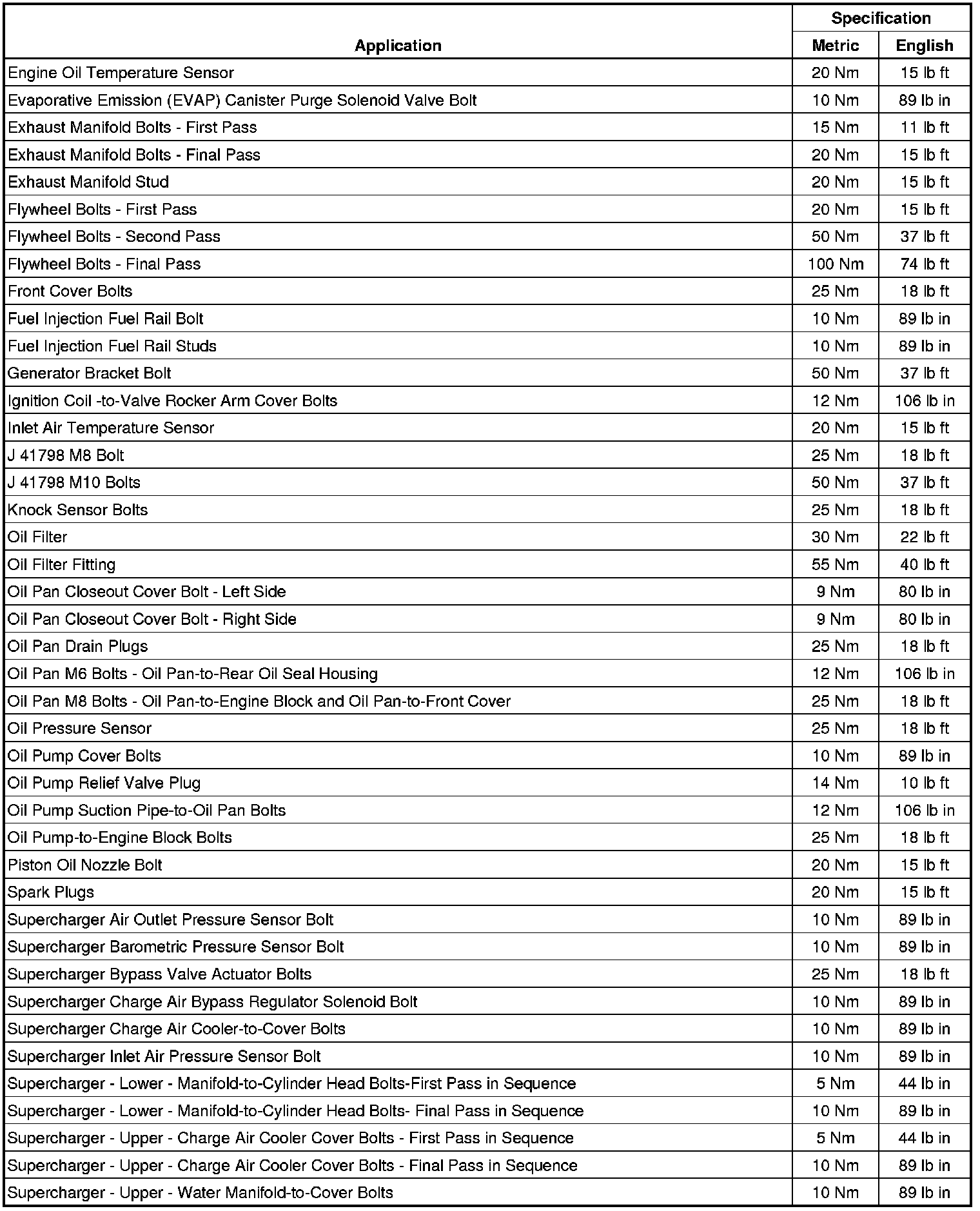

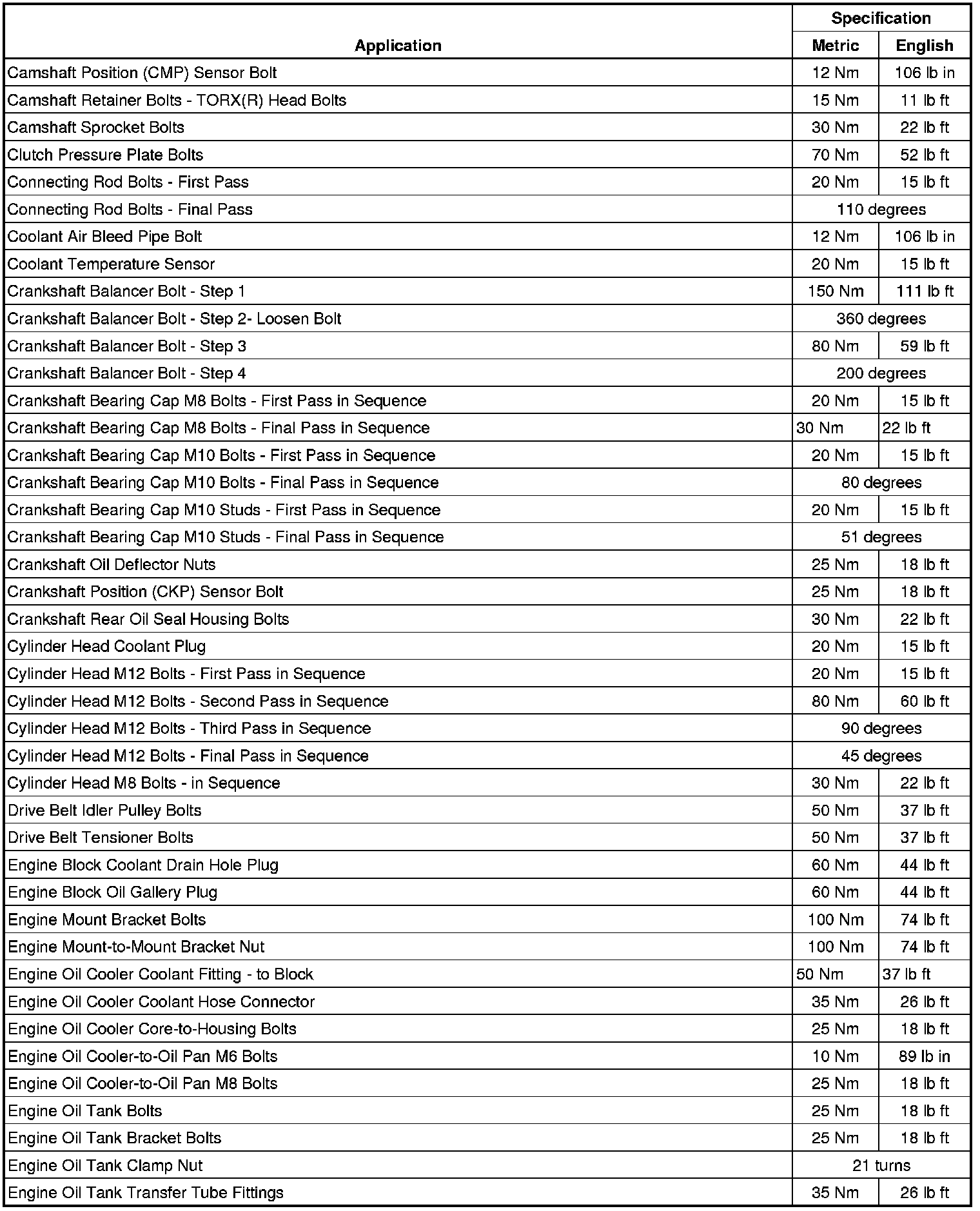

Fastener Tightening Specifications (6.2L LS9)
Install NEW cylinder head bolts.
Flex Plate
50 Nm (37 lb ft)
