Active Exhaust System Control Module: Diagrams




Component Connector End Views

Exhaust Tail Pipe Flow Valve Control Module X1 (NPP)

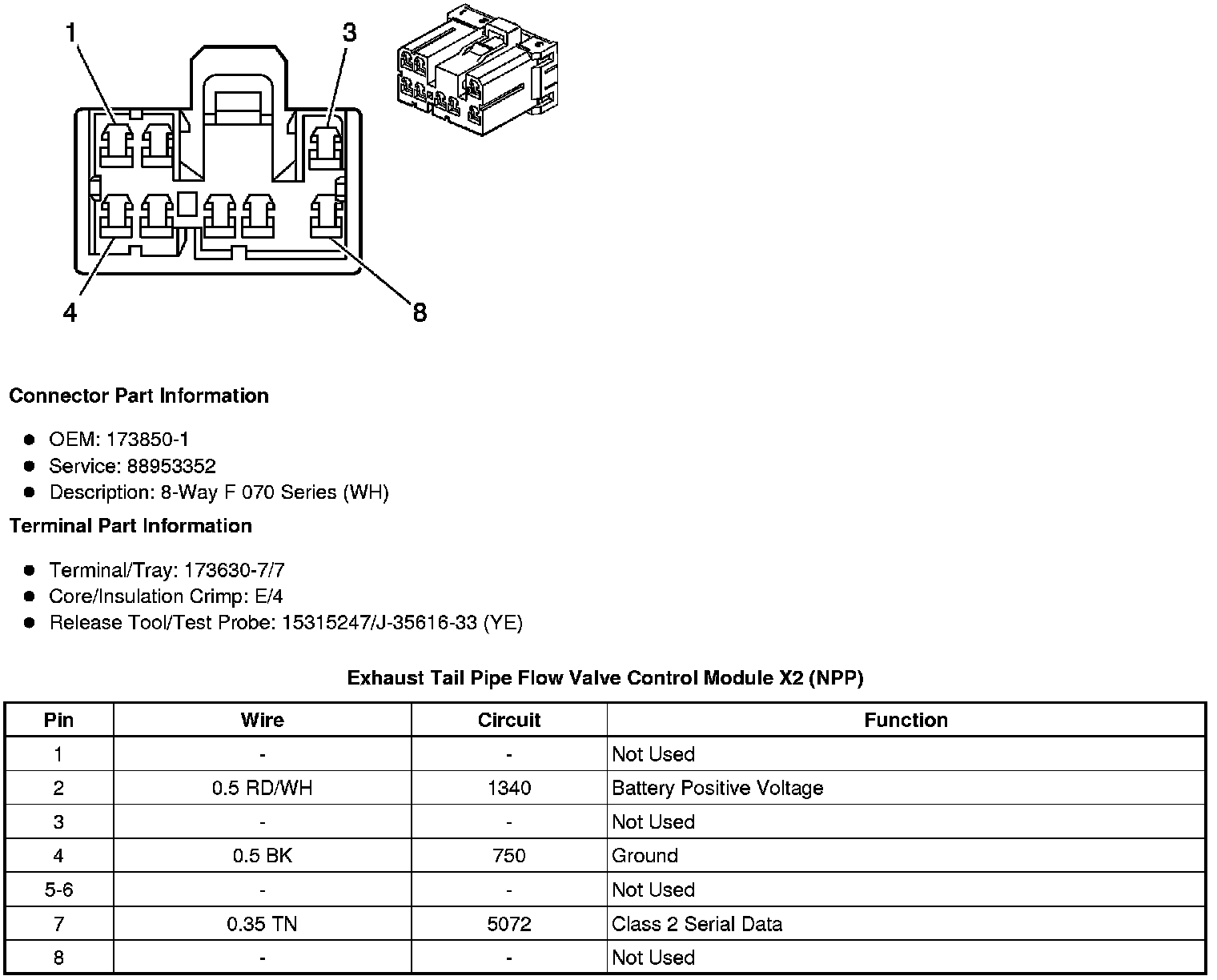

Exhaust Tail Pipe Flow Valve Control Module X2 (NPP)
